Parts Listings
All parts inquiries must include a complete pump description with materials of construction, motor information and special options or the serial number of the pump to insure the correct parts are quoted. |

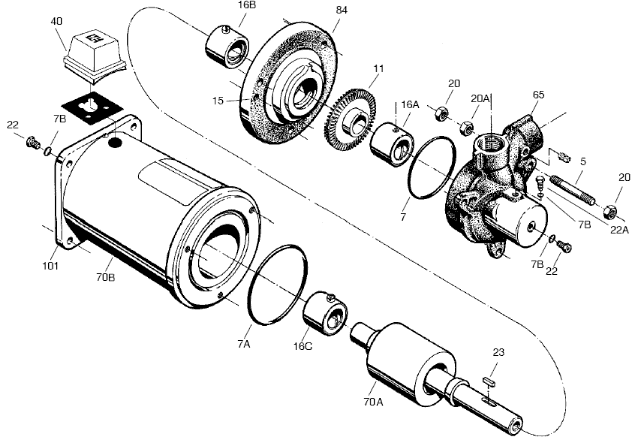

X41 Horizontal Close-coupled Standard Pump Configurations |
 |
| Part Numbers subject to change without notice |
| Ref. No. |
Part/Description |
Material |
Part Number |
| 5 |
Stud |
316 Stainless |
5-2465-25-104 |
| 7 |
“O” Ring/Casing |
EPR |
7-3803-01-504 |
| 7A |
“O” Ring/Motor |
EPR |
7-3816-01-504 |
| 7B |
“O” Ring/Drain Plug |
EPR |
7-3970-01-457 |
| 11 |
X41B Impeller |
W88 Stainless - ASTM A494 |
11-2223-0B-280 |
| X41C Impeller |
W88 Stainless - ASTM A494 |
11-2224-0C-280 |
| X41D Impeller |
W88 Stainless - ASTM A494 |
11-2225-0D-280 |
| X41E Impeller |
W88 Stainless - ASTM A494 |
11-2226-0E-280 |
| X41G Impeller |
W88 Stainless - ASTM A494 |
11-2227-0G-280 |
| X41J Impeller |
W88 Stainless - ASTM A494 |
11-2228-0J-280 |
| 15* |
Adjustment Screws
|
304 Stainless Steel |
15-4298-01-101 |
| 16 |
Cartridge Bearing, Body |
Carbon/316 SS |
16-4264-01-104 |
| 16A |
Cartridge Bearing, L.H. |
Carbon/316 SS |
16-4278-01-104 |
| 16B |
Cartridge Bearing, R.H. |
Carbon/316 SS |
16-4279-01-104 |
| 20 |
Nut, Pump Body |
316 Stainless Steel |
20-1028-01-104 |
| 20A |
Jam Nut, 3/8-16 |
316 Stainless Steel |
205-1019-01-104 |
| 22 |
Drain, Vent Plug |
316 Stainless Steel |
22-4265-01-101 |
| 22A |
Plug, Bearing Retaining |
316 Stainless Steel |
22-4265-01-101 |
| 23 |
Impeller Key |
316 Stainless Steel |
23-1022-01-104 |
| 33* |
Endbell Screw |
Steel |
33-3998-05-080 |
| 40 |
Conduit Box |
Steel |
consult factory |
| 65 |
X41B Cover |
316 Stainless |
65-3818-BB-104 |
| X41C Cover |
316 Stainless |
65-3819-BC-104 |
| X41D Cover |
316 Stainless |
65-3820-BD-104 |
| X41E Cover |
316 Stainless |
65-3821-BE-104 |
| X41G Cover |
316 Stainless |
65-3822-BG-104 |
| X41J Cover |
316 Stainless |
65-3823-BJ-104 |
| 70A |
Shaft, Rotor Assembly |
304 Stainless Steel |
70-3860-01-101 |
| 70B |
Stator Assembly |
316 Stainless Steel |
70-3986-01-104 |
| 73* |
Ground Wire |
Copper / Silicone |
73-3999-01-177 |
| 84 |
X41B Motor Bracket |
316 Stainless |
84-3828-0B-104 |
| X41C Motor Bracket |
316 Stainless |
84-3829-0C-104 |
| X41D Motor Bracket |
316 Stainless |
84-3830-0D-104 |
| X41E Motor Bracket |
316 Stainless |
84-3831-0E-104 |
| X41G Motor Bracket |
316 Stainless |
84-3832-0G-104 |
| X41J Motor Bracket |
316 Stainless |
84-3833-0J-104 |
| 101 |
Endbell, Conduit End |
Aluminum |
101-3864-01-319 |
| 122* |
Ground Terminal |
Steel |
122-4558-01-080 |
| *Not Shown |
