M50 • L50 Series Regenerative Turbine Pumps

M50 • L50 Product Information Page

Design Features

Steep Head/Capacity Curve

Pumping capacity varies only slightly as pressure changes. Steep pressure characteristic overcomes temporary line resistances.

Self-Adjusting Impeller

M50 • L50 impellers utilize balancing holes to promote hydraulic self centering, which eliminates the need for external adjustment. The free sliding impeller exerts no thrust load on the bearings, thereby extending service life. Self-centering is equally effective whether mounted in the horizontal or vertical position.

Mechanical Seals

Bronze fitted pumps have Buna N elastomers, carbon washer, ceramic seat, and stainless steel metal parts. Optional seats and materials are available.

1000 PSI Case Working Pressure

Rigid stucture is designed for maximum casing strength.

100% Tested

Every pump is fully tested to verify performance prior to shipment.

Volatile Fluid Handling

The turbine impeller handles vapors up to 20% by volume, minimizing the possibility of vapor lock.

"O"Ring Gaskets

"O"ring gaskets are used throughout the M50 • L50 Series pumps to assure positive sealing.

Shaft

Standard shaft is of high strength 416 stainless steel.

Motors

Standard 56C face motors are utilized up to 3 Hp. Five Hp and above are TEFC on vertical base mount units.

Best Efficiency

New pump designs optimize efficiency for each size.

Non-Cavitating

M50 • L50 Series pumps may be operated under adverse inlet conditions without audible or measurable cavitation.



M Series Sectional

Standard M52 Horizontal Close Coupled

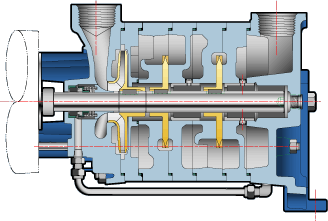

L Series Sectional

Low NPSH L52 Horizontal Close Coupled

Low NPSH

New inlet designs along with L50 Series inducer style pumps provide superior fluid handling ability with low inlet head conditions.

Balanced Loads

By staggering each stage's discharge by 180°, the radial loads on the bearings are effectively balanced, and shaft deflection is thereby negligible.

Interstage Bushings

Close tolerance self-lubricating carbon bearings between each stage limit interstage leakage.
