HP41 • HP412 Hermetic Regenerative Turbine Refrigerant Pump

Back to Custom Engineered Products

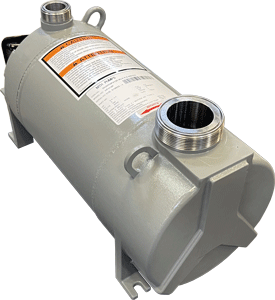

HP41 Series Pump

  • Capacities to 45 GPM

  • Heads to 200 Feet

  • Temperatures to 150°F* (66°C)

  • Inverter Duty Motor

  • Sealless

  • For Non-conductive Fluids

  • For Non-corrosive Fluids

Performance Curves

HP41 Series Performance Curves

Dimensions

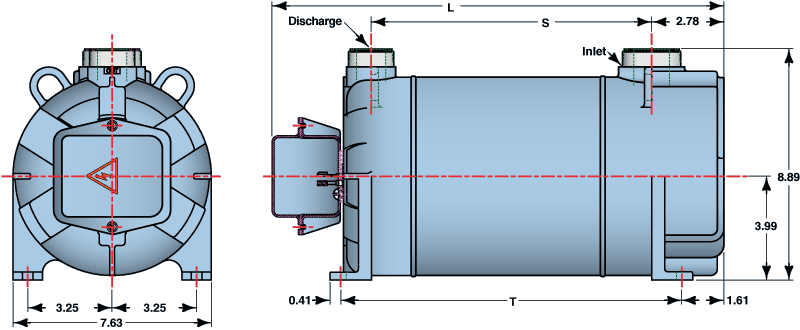

HP41 Series Dimensions

PUMP MODEL

INLET

DISCHARGE

HP

L

S

T

HP41E

1.75-12 Rotalock

1.25-12 Rotalock

1 1/2

16.38

9.79

12.13

HP41J

1.75-12 Rotalock

1.25-12 Rotalock

1 1/2

16.38

9.79

12.13

HP41J

1.75-12 Rotalock

1.25-12 Rotalock

3

17.38

10.79

13.13

HP41P

2.25-12 Rotalock

1.75-12 Rotalock

3

17.38

10.79

13.13

HP412P

2.875-12 Rotalock

1.75-12 Rotalock

5

18.63

12.05

14.38

HP412P

2.875-12 Rotalock

1.75-12 Rotalock

7 1/2

19.63

13.05

15.38

Download a printable version of the HP Series Product Bulletin in .pdf format.
