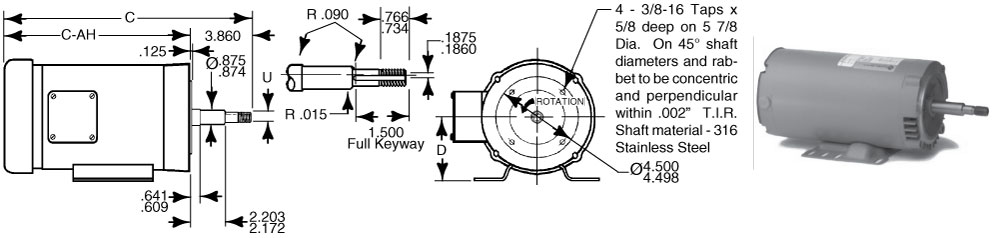

C15 Motors
3 Phase - 2 POLE 3450 / 2880 RPM
  |
||||||||||||
| HORSE POWER |
ENCL. | FRAME | MTH P/N | WT. LBS. |
DIMENSIONS IN INCHES | HZ |
SERVICE FACTOR |
VOLTAGE |
WIRING DIAG. |
|||
| U | D | C | C-AH | |||||||||
| 3 | ODP | 56C | BLC-1254-05-ODP | 45 | 5/8 | 3.5 | 15.95 | 12.24 | --- | --- | --- |
|
| 50* | 1.00 | 190/380 | ||||||||||
| EXP | 182TZC | MEC-1254-03-EXP | 140 | 5/8 | 4.5 | 17.68 | 13.86 | 60 | 1.15 | 208-230/460 |
|
|
| --- | --- | --- | ||||||||||
| 5 | ODP | 56C | BLC-1254-05-ODP | 45 | 5/8 | 3.5 | 15.95 | 12.24 | 60 | 1.15 | 208-230/460 |
|
| 50* | --- | --- | ||||||||||
| TEFC | 56C | FRC-1254-05-TEF | 47 | 5/8 | 3.5 | 16.37 | 12.66 | 60 | 1.15 | 208-230/460 |
|
|
| --- | --- | --- | ||||||||||
| EXP | 184TZC | MEC-1254-05-EXP | 159 | 5/8 | 4.5 | 17.64 | 13.93 | 60 | 1.00 | 208-230/460 |
|
|
| --- | --- | --- | ||||||||||
| 7 1/2 | ODP | 145TC | FRC-1254-07-ODP | 51 | 5/8 | 3.5 | 17.64 | 13.93 | 60 | 1.15 | 208-230/460 |
|
| --- | --- | --- | ||||||||||
| TEFC | 184TCZ | WEC-1254-07-TEF | 88 | 5/8 | 4.5 | 18.19 | 14.38 | 60 | 1.15 | 208-230/460 |
|
|
| --- | --- | --- | ||||||||||
| TEFC | 184TCZ | MEC-1254-07-TEF | TBD | 5/8 | 4.5 | 17.94 | 14.13 | 60 | 1.00 | 208-230/460 |
|
|
| --- | --- | --- | ||||||||||
| EXP | 184TCZ | MEC-1254-05-EXP | 202 | 5/8 | 5.25 | 20.04 | 16.23 | 60 | 1.00 | 208-230/460 | ||
| --- | --- | --- | ||||||||||
| 10 | TEFC | 213TCZ | WEC-1254-10-ODP | 162 | 5/8 | 5.25 | 25.04 | 18.54 | 60 | 1.15 | 208-230/460 |
|
| --- | --- | --- | ||||||||||
| *This motor is rated 4HP @ 50Hz
operation. Please consult factory for all 50 Hz operation. Motor Vendor is at the discretion of the factory unless otherwise specified. Information shown is typical for motor size, consult factory for exact. Consult factory for motor nameplate data. |
||||||||||||
