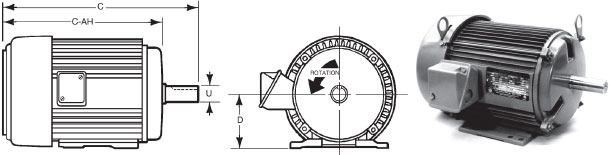

Horizontal Rigid Base Motors
1Phase - 4 POLE 1750 RPM
 |
||||||||||||
| HORSE |
ENCL. |
FRAME |
MTH P/N |
WT. |
DIMENSIONS IN INCHES |
HZ |
SERVICE |
VOLTAGE |
WIRING |
|||
| U |
D |
C |
C-AH |
|||||||||
| 1/2 |
ODP |
56 |
37-1210-05-ODP |
30 |
5/8 |
3.5 |
9.3 |
7.3 |
60 |
1.15 |
115/208-230 |
|
| --- |
--- |
--- |
||||||||||
| TEFC |
56 |
37-1210-05-TEF |
30 |
5/8 |
3.5 |
12 |
10 |
60 |
1.0 |
115/208-230 |
|
|
| --- |
--- |
--- |
||||||||||
| 3/4 |
ODP |
56 |
37-1210-07-ODP |
30 |
5/8 |
3.5 |
11.2 |
9.2 |
60 |
1.15 |
115/208-230 |
|
| --- |
--- |
--- |
||||||||||
| TEFC |
56 |
37-1210-07-TEF |
34 |
5/8 |
3.5 |
12.8 |
10.8 |
60 |
1.0 |
115/208-230 |
|
|
| --- |
--- |
--- |
||||||||||
| 1 |
ODP |
56 |
37-1214-01-ODP |
35 |
7/8 |
3.5 |
12.12 |
9.62 |
60 |
1.15 |
115/208-230 |
|
| --- |
--- |
--- |
||||||||||
| TEFC |
56 |
37-1214-01-TEF |
40 |
7/8 |
3.5 |
13.3 |
10.81 |
60 |
1.0 |
115/208-230 |
|
|
| --- |
--- |
--- |
||||||||||
| 1 1/2 |
ODP |
56 |
37-1214-51-ODP |
45 |
7/8 |
3.5 |
12.2 |
9.62 |
60 |
1.15 |
115/208-230 |
|
| --- |
--- |
--- |
||||||||||
| TEFC |
143T |
37-1214-51-TEF |
48 |
7/8 |
3.5 |
14.3 |
11.75 |
60 |
1.0 |
115/208-230 |
|
|
| --- |
--- |
--- |
||||||||||
| 2 |
ODP |
145T |
37-1214-02-ODP |
45 |
7/8 |
3.5 |
13.0 |
10.5 |
60 |
1.15 |
115/208-230 |
|
| --- |
--- |
--- |
||||||||||
| TEFC |
145T |
37-1214-02-TEF |
67 |
1 1/8 |
4.5 |
16.6 |
13.6 |
60 |
1.0 |
115/208-230 |
|
|
| --- |
--- |
--- |
||||||||||
| 3 |
ODP |
182T |
37-1214-03-ODP |
65 |
1 1/8 |
4.5 |
15.0 |
12.0 |
60 |
1.15 |
115/208-230 |
|
| --- |
--- |
--- |
||||||||||
| TEFC |
182T |
37-1214-03-TEF |
94 |
1 1/8 |
4.5 |
16.6 |
13.6 |
60 |
1.0 |
115/230 |
|
|
| --- |
--- |
--- |
||||||||||
| 5 |
ODP |
184T |
37-1214-05-ODP |
80 |
1 1/8 |
4.5 |
16.5 |
13.5 |
60 |
1.15 |
208-230 |
|
| --- |
--- |
--- |
||||||||||
| TEFC |
184T |
37-1214-05-TEF |
117 |
1 3/8 |
5.25 |
17.9 |
14.1 |
60 |
1.0 |
208-230 |
|
|
| --- |
--- |
--- |
||||||||||
