142IA to 110A Series I4TA Comparisons

Back to Aurora Replacements

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

Zoom

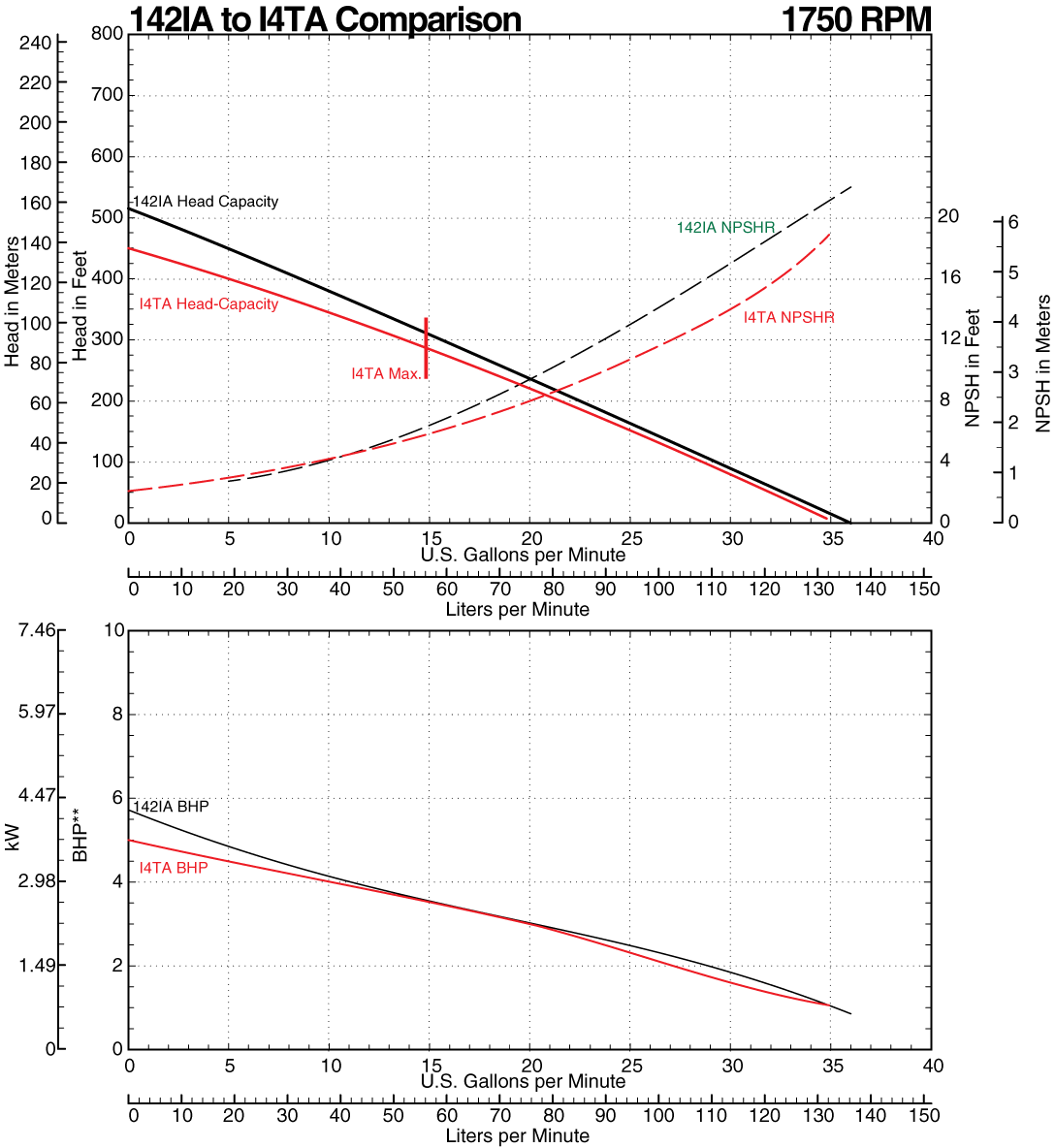

142IA to I4TA Comparison Curve at 1750 RPM

Notes: Consult factory for operation below 14.0 GPM
*Consider 240 Series inducer if pumping at low NPSH. Add 1/2 horsepower for 240 Series models.
**Horsepowerdata is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Click here to return to Aurora Replacement Information Page.
