172J to 110A Series J6T Comparisons

Back to Aurora Replacements

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

Zoom

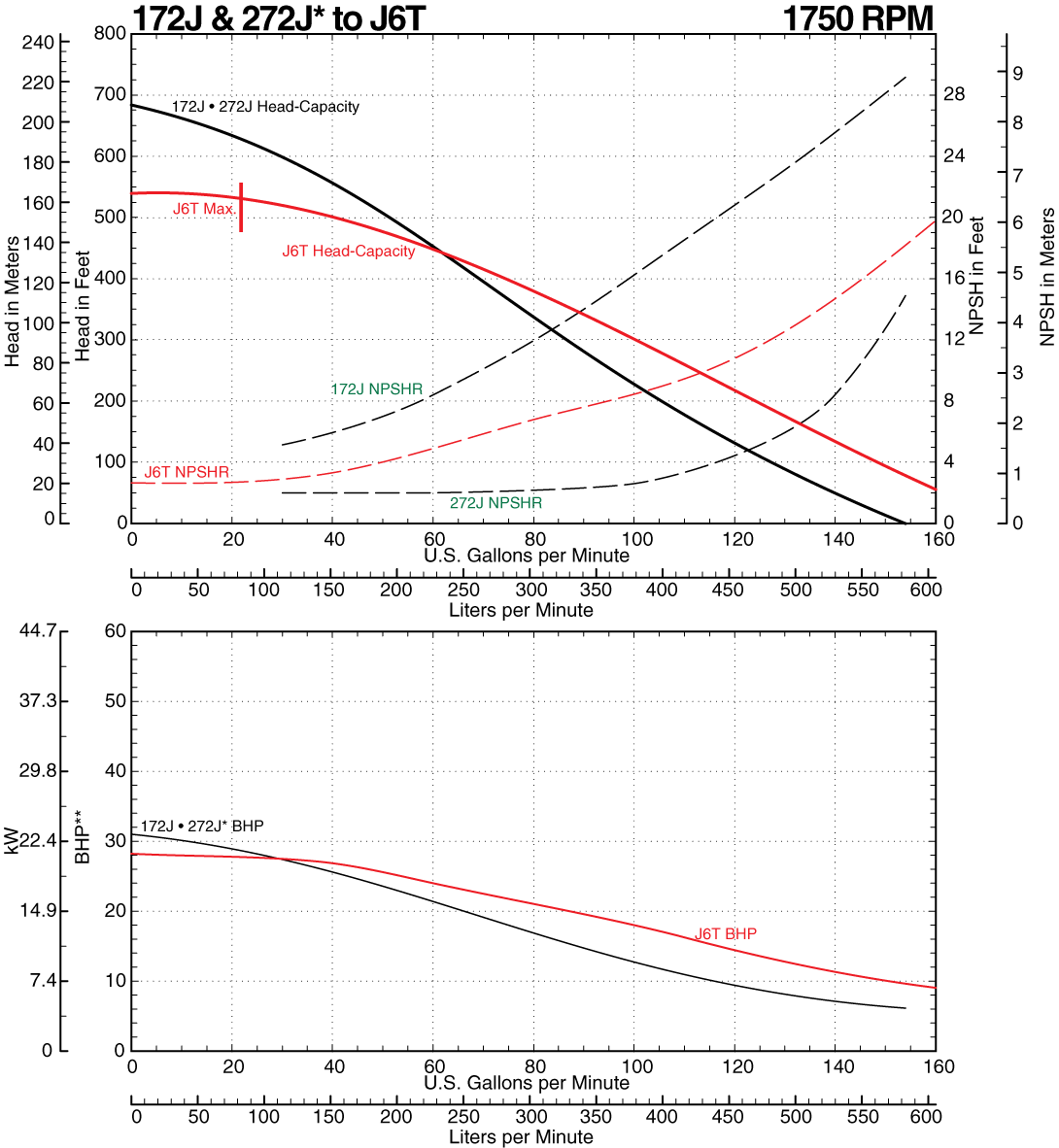

172J to J6T Comparison Curve at 1750 RPM

Notes: Do not exceed 1150 TDH with 1.0 S.G. fluids
Consult factory for operation below 62.0 GPM
*Consider 270 Series inducer if pumping at low NPSH. Add 1 horsepower for 270 Series models.
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
