140 • 240 • 180 • 280 Series Regenerative Turbine Pumps

Back to the Product Support Page

Parts Listings

All parts inquiries must include a complete pump description with materials of construction, motor information and special options or the serial number of the pump to insure the correct parts are quoted.

140 • 180 Horizontal Flexible-coupled Standard Pump Configurations

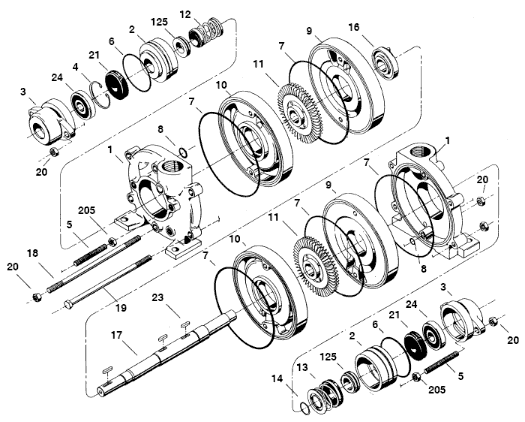

140 • 240 • 180 • 280 Series Regenerative Turbine Pump Parts

Part Numbers subject to change without notice

Ref. No.

Part/Description

Material

Part Number

1

Cover - Inlet & Discharge

Teflon Coated Cast Iron

1-1006-01-007

Bronze

1-1006-01-206

316 Stainless

1-1006-01-104

2

Standard Seal Cup

Teflon Coated Cast Iron

2-1008-01-007

Bronze

2-1008-01-206

316 Stainless

2-1008-01-104

3

Bearing Arm

Teflon Coated Cast Iron

3-1009-01-007

Bronze

3-1009-01-206

316 Stainless

3-1009-01-104

4

Bearing Retaining Snap Ring

Steel

4-1021-01-088

5

Bearing Arm Stud

Steel

5-1018-01-080

316 Stainless

5-1018-01-104

6

Seal Cup “O” Ring

Buna

6-1024-01-457

Viton

6-1024-01-494

7

Casing “O” Ring

Buna

7-1025-01-457

Viton

7-1025-01-494

8

Guide Rod “O” Ring

Buna

8-1026-01-457

Viton

8-1026-01-494

9

Right - 140D Channel Ring

Teflon Coated Cast Iron

9-1291-0D-543

Bronze

9-1291-0D-206

316 Stainless

9-1291-0D-104

Right - 140E Channel Ring

Teflon Coated Cast Iron

9-1293-0E-543

Bronze

9-1293-0E-206

316 Stainless

9-1293-0E-104

Right - 140F Channel Ring

Teflon Coated Cast Iron

9-1295-0F-543

Bronze

9-1295-0F-206

316 Stainless

9-1295-0F-104

Right - 140G Channel Ring

Teflon Coated Cast Iron

9-1297-0G-543

Bronze

9-1297-0G-206

316 Stainless

9-1297-0G-104

Right - 140H Channel Ring

Teflon Coated Cast Iron

9-1299-0H-543

Bronze

9-1299-0H-206

316 Stainless

9-1299-0H-104

Right - 140I Channel Ring

Teflon Coated Cast Iron

9-1301-0I-543

Bronze

9-1301-0I-206

316 Stainless

9-1301-0I-104

Right - 140IA Channel Ring

Teflon Coated Cast Iron

9-1303-IA-543

Bronze

9-1303-IA-206

316 Stainless

9-1303-IA-104

Right - 180K Channel Ring

Teflon Coated Cast Iron

9-1451-0K-543

Bronze

9-1451-0K-206

316 Stainless

9-1451-0K-104

Right - 180M Channel Ring

Teflon Coated Cast Iron

9-1453-0M-543

Bronze

9-1453-0M-206

316 Stainless

9-1453-0M-104

Right - 180P Channel Ring

Teflon Coated Cast Iron

9-1455-0P-543

Bronze

9-1455-0P-206

316 Stainless

9-1455-0P-104

Right - 180R Channel Ring

Teflon Coated Cast Iron

9-1457-0R-543

Bronze

9-1457-0R-206

316 Stainless

9-1457-0R-104

Right - 180S Channel Ring

Teflon Coated Cast Iron

9-1459-0S-543

Bronze

9-1459-0S-206

316 Stainless

9-1459-0S-104

10

Left - 140D Channel Ring

Teflon Coated Cast Iron

10-1292-0D-543

Bronze

10-1292-0D-206

316 Stainless

10-1292-0D-104

Left - 140E Channel Ring

Teflon Coated Cast Iron

10-1294-0E-543

Bronze

10-1294-0E-206

316 Stainless

10-1294-0E-104

Left - 140F Channel Ring

Teflon Coated Cast Iron

10-1296-0F-543

Bronze

10-1296-0F-206

316 Stainless

10-1296-0F-104

Left - 140G Channel Ring

Teflon Coated Cast Iron

10-1298-0G-543

Bronze

10-1298-0G-206

316 Stainless

10-1298-0G-104

Left - 140H Channel Ring

Teflon Coated Cast Iron

10-1300-0H-543

Bronze

10-1300-0H-206

316 Stainless

10-1300-0H-104

Left - 140I Channel Ring

Teflon Coated Cast Iron

10-1302-0I-543

Bronze

10-1302-0I-206

316 Stainless

10-1302-0I-104

Left - 140IA Channel Ring

Teflon Coated Cast Iron

10-1304-IA-543

Bronze

10-1304-IA-206

316 Stainless

10-1304-IA-104

Left - 180K Channel Ring

Teflon Coated Cast Iron

10-1450-0K-543

Bronze

10-1450-0K-206

316 Stainless

10-1450-0K-104

Left - 180M Channel Ring

Teflon Coated Cast Iron

10-1452-0M-543

Bronze

10-1452-0M-206

316 Stainless

10-1452-0M-104

Left - 180P Channel Ring

Teflon Coated Cast Iron

10-1454-0P-543

Bronze

10-1454-0P-206

316 Stainless

10-1454-0P-104

Left - 180R Channel Ring

Teflon Coated Cast Iron

10-1456-0R-543

Bronze

10-1456-0R-206

316 Stainless

10-1456-0R-104

Left - 180S Channel Ring

Teflon Coated Cast Iron

10-1458-0S-543

Bronze

10-1458-0S-206

316 Stainless

10-1458-0S-104

11

140D Impeller

Bronze

11-1305-0D-206

Carbon Steel

11-1305-0D-057

W88 Stainless - ASTM A494

11-1305-0D-280

140E & 140F Impeller

Bronze

11-1306-0E-206

Carbon Steel

11-1306-0E-057

W88 Stainless - ASTM A494

11-1306-0E-280

140G Impeller

Bronze

11-1308-0G-206

Carbon Steel

11-1308-0G-057

W88 Stainless - ASTM A494

11-1308-0G-280

140H Impeller

Bronze

11-1309-0H-206

Carbon Steel

11-1309-0H-057

W88 Stainless - ASTM A494

11-1309-0H-280

140I Impeller

Bronze

11-1310-0I-206

Carbon Steel

11-1310-0I-057

W88 Stainless - ASTM A494

11-1310-0I-280

140IA & 180K Impeller

Bronze

11-1311-IA-206

Carbon Steel

11-1311-IA-057

W88 Stainless - ASTM A494

11-1311-IA-280

180M Impeller

Bronze

11-1471-0M-206

Carbon Steel

11-1471-0M-057

W88 Stainless - ASTM A494

11-1471-0M-280

180P Impeller

Bronze

11-1472-0P-206

Carbon Steel

11-1472-0P-057

W88 Stainless - ASTM A494

11-1472-0P-280

180R Impeller

Bronze

11-1473-0R-206

Carbon Steel

11-1473-0R-057

W88 Stainless - ASTM A494

11-1473-0R-280

180S Impeller

Bronze

11-1474-0S-206

Carbon Steel

11-1474-0S-057

W88 Stainless - ASTM A494

11-1474-0S-280

12

Unbalanced Seal Rotating Element

EPR/Carbon/316 SS

12-1068-01-504

Buna/Carbon/316 SS

12-1068-01-457

Viton/Carbon/316 SS

12-1068-01-494

125

Seal Stationary Seat

Ceramic

125-1282-01-592

Ni-Resist

125-1282-01-046

135

125 "O" Ring Incl. w/ Seat

EPR

135-1179-01-504

Buna

135-1179-01-457

Viton

135-1179-01-494

13

Balanced Seal Rotating Element

EPR/Carbon/316 Stainless

13-1016-01-504

Viton/Carbon/316 Stainless

13-1016-01-494

14

Balanced Seal Drive Collar

316 Stainless

14-1165-01-104

16

Floating Interstage Bushing

Carbon Graphite

16-1013-01-538

17

141 Standard Shaft

416 Stainless

17-1312-01-107

316 Stainless

17-1312-01-104

142 Standard Shaft

416 Stainless

17-1313-02-107

316 Stainless

17-1313-02-104

143 Standard Shaft

416 Stainless

17-1314-03-107

316 Stainless

17-1314-03-104

144 Standard Shaft

416 Stainless

17-1315-04-107

316 Stainless

17-1315-04-104

181 Standard Shaft

416 Stainless

17-1482-01-107

316 Stainless

17-1482-01-104

182 Standard Shaft

416 Stainless

17-1634-02-107

316 Stainless

17-1634-02-104

183 Standard Shaft

416 Stainless

17-2234-03-104

316 Stainless

17-2234-03-104

184 Standard Shaft

416 Stainless

17-2235-04-107

316 Stainless

17-2235-04-104

18

Guide Rod

416 Stainless

consult factory

316 Stainless

consult factory

19

Thru Bolt

Steel

consult factory

20

Casing Nut

Steel

20-1028-01-080

316 Stainless

20-1028-01-104

205

Bearing Arm Jam Nut

Steel

205-1019-01-080

316 Stainless

205-1019-01-104

21

Flinger

Buna

21-1011-01-457

22

Plug/Drain

Steel

22-1069-01-080

Brass

22-1069-01-181

316 Stainless

22-1069-01-104

23

Key/Impeller Drive

316 Stainless

23-1022-01-104

24

Sealed Ball Bearing

Steel

24-1017-01-647
