Models 140D • 240D Individual Curve

140 • 180 • 240 • 280 Product Information Page

  Next Model >>

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

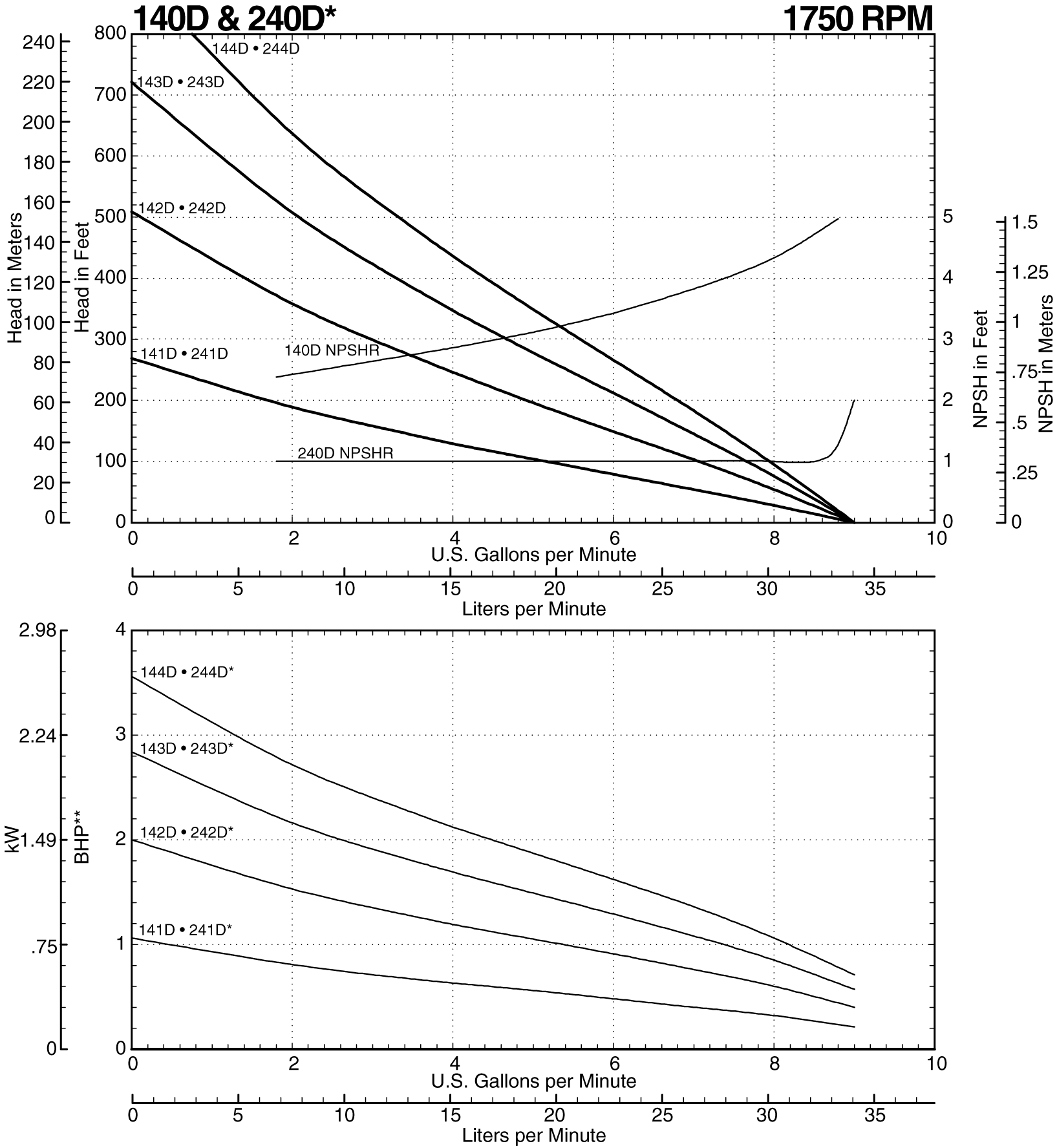

140D Performance Curve at 1750 RPM

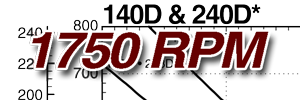

140D Performance Curve at 1750 RPM Thumbnail

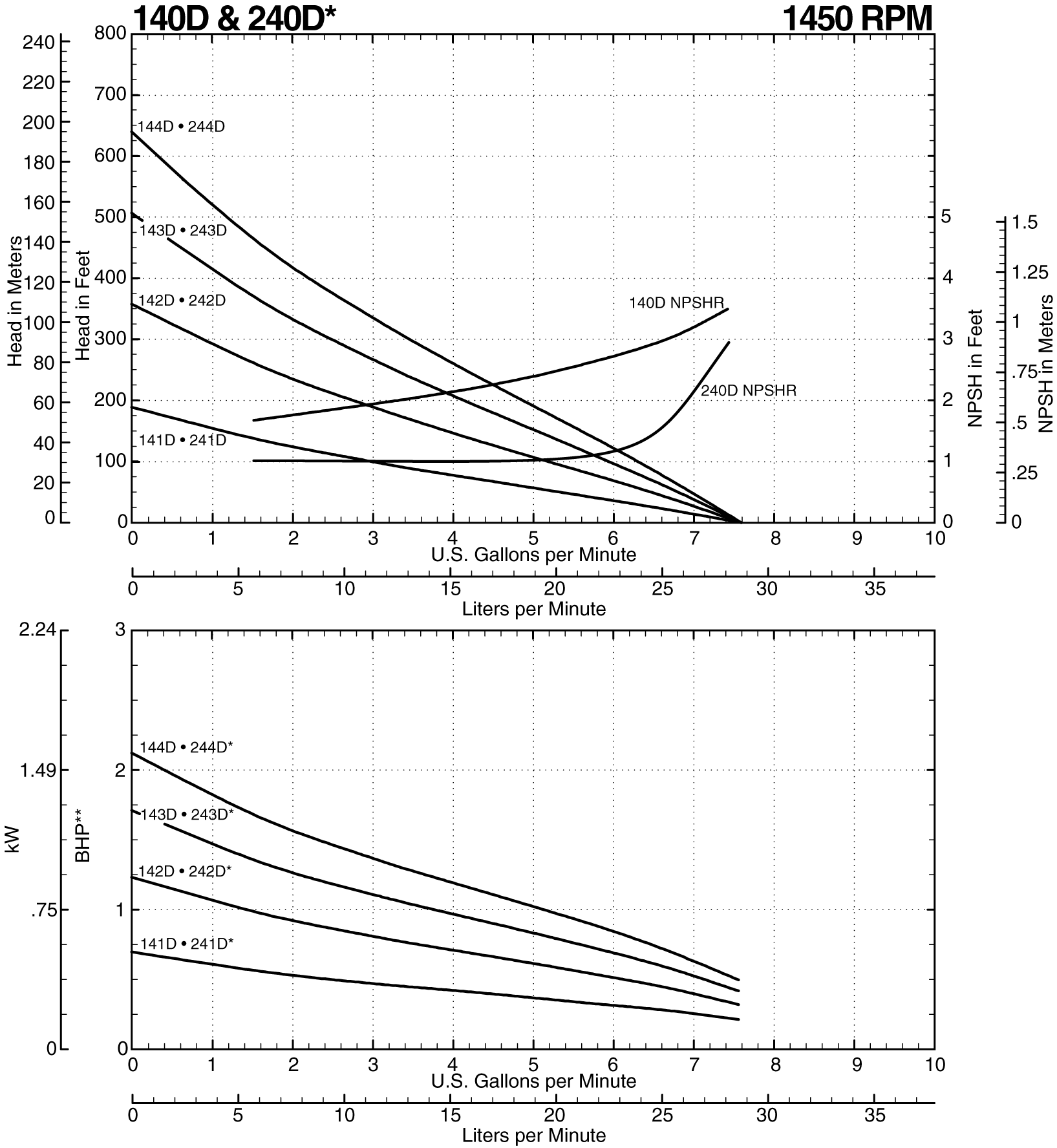

140D Performance Curve at 1450 RPM Thumbnail
  Next Model >>

Notes: Consult factory for operation below 3.6 GPM
*Add 1/2 horsepower for 240 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
