Models 140H • 240H Individual Curve

140 • 180 • 240 • 280 Product Information Page

<< Prev Model Next Model >>

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

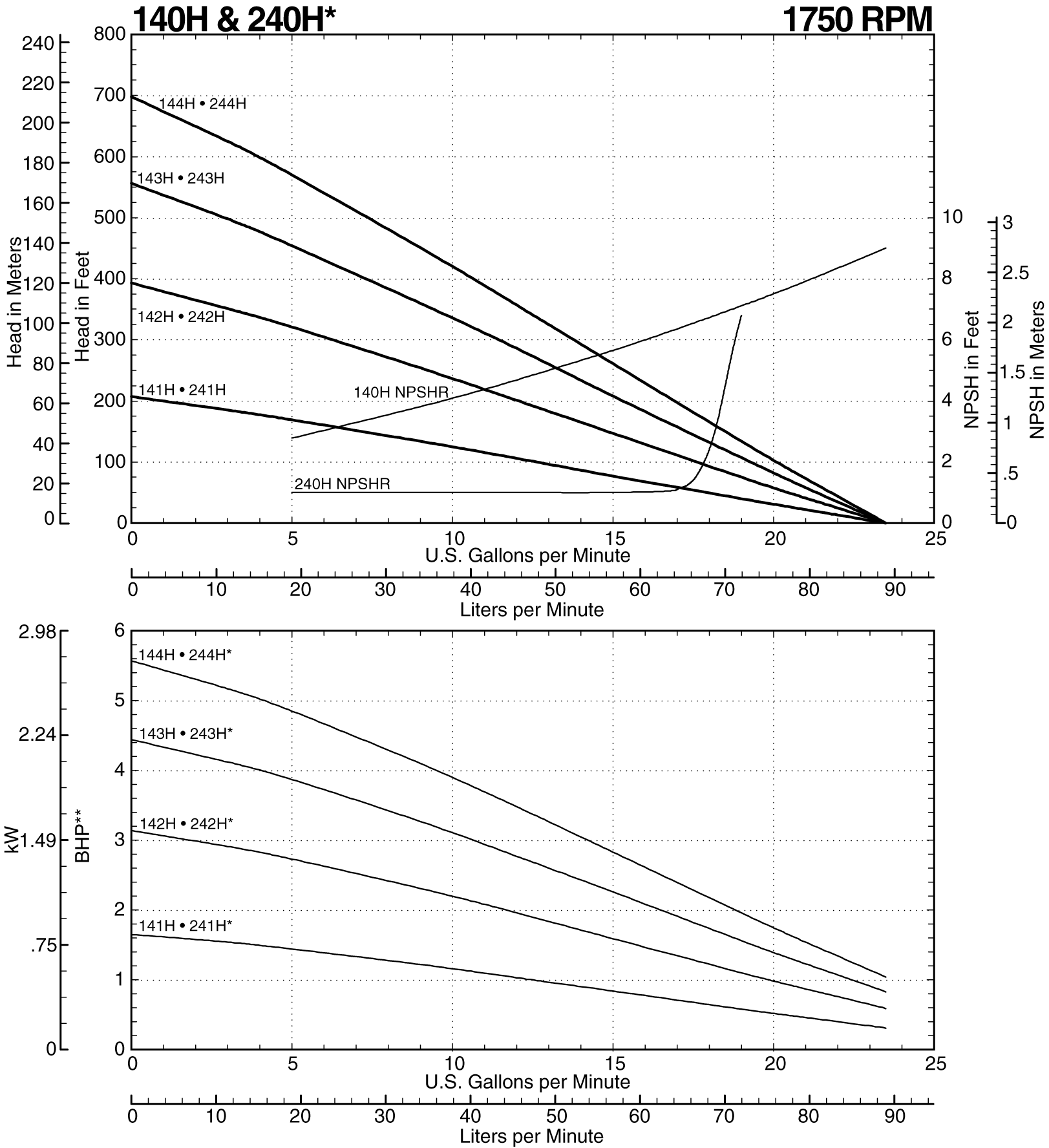

140H Curve at 1750 RPM

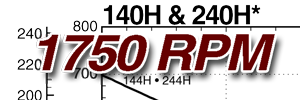

140H Curve at 1750 RPM Thumbnail

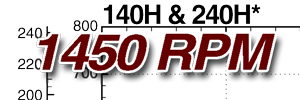

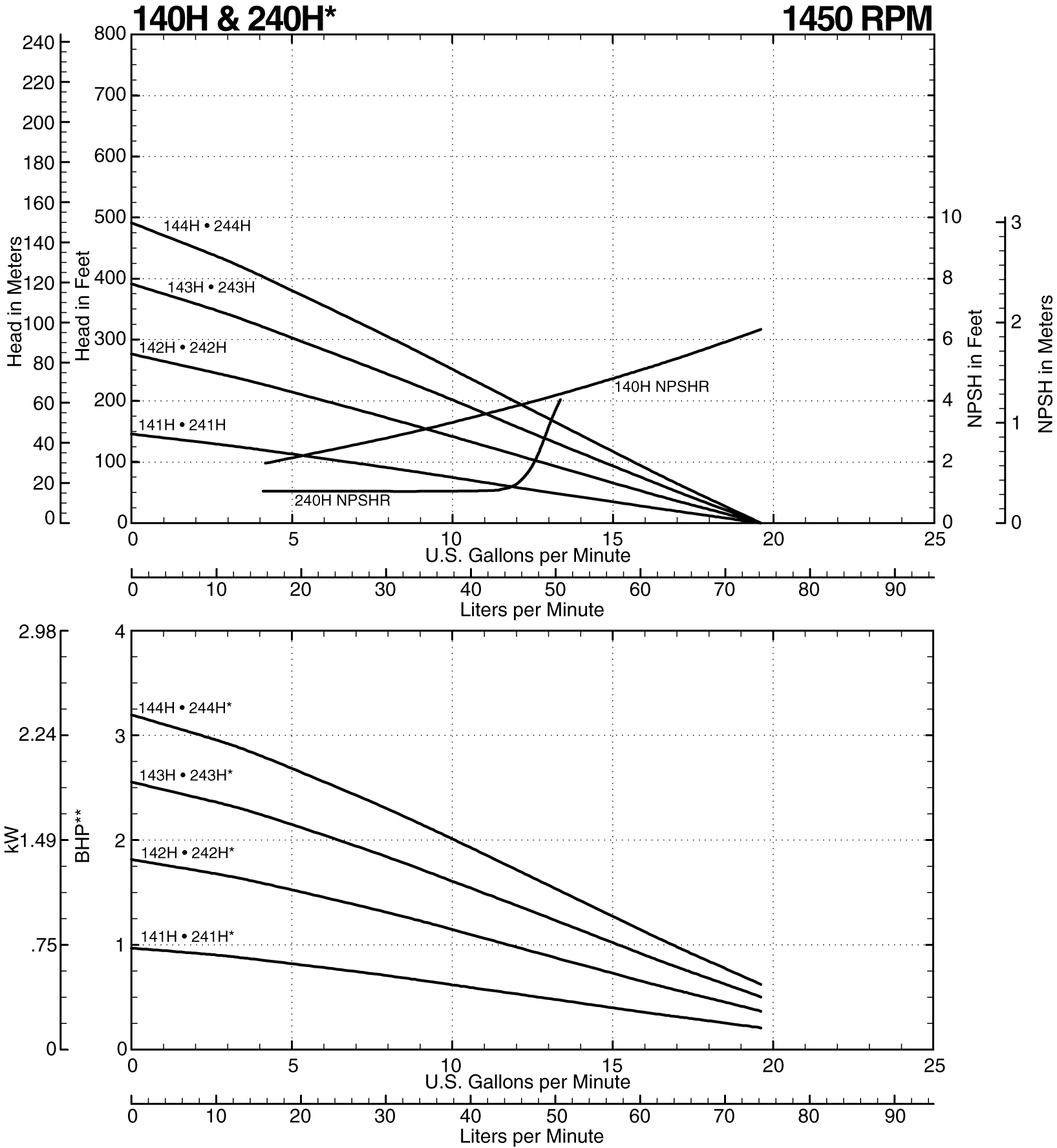

140H Curve at 1450 RPM Thumbnail
<< Prev Model Next Model >>

Notes: Consult factory for operation below 9.0 GPM
*Add 1/2 horsepower for 240 Series models
**Horsepowerdata is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
