Models 180K • 280K Individual Curve

140 • 180 • 240 • 280 Product Information Page

<< Prev Model Next Model >>

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

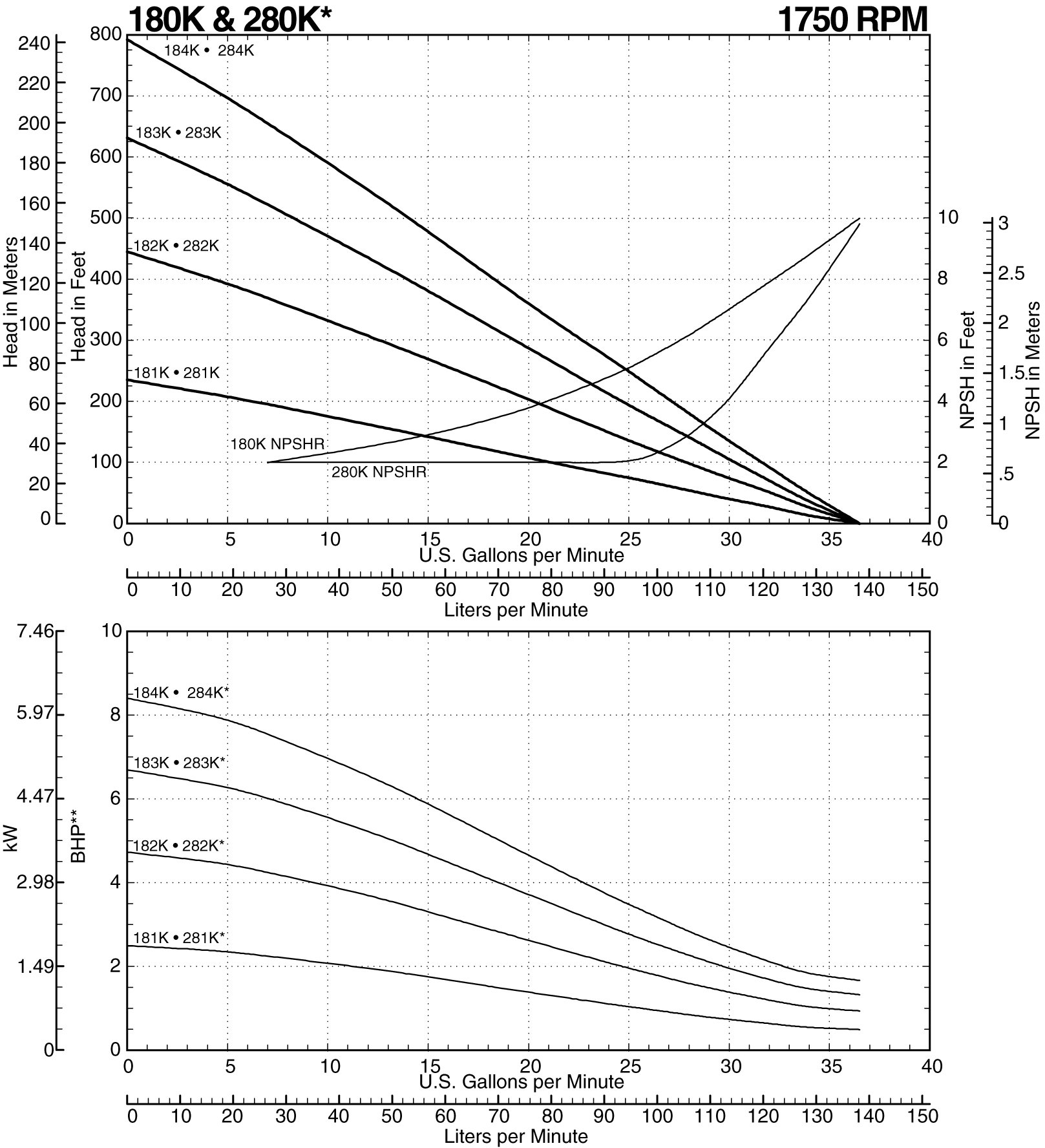

180K Curve at 1750 RPM

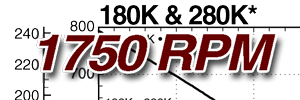

180K Curve at 1750 RPM Thumbnail

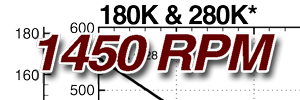

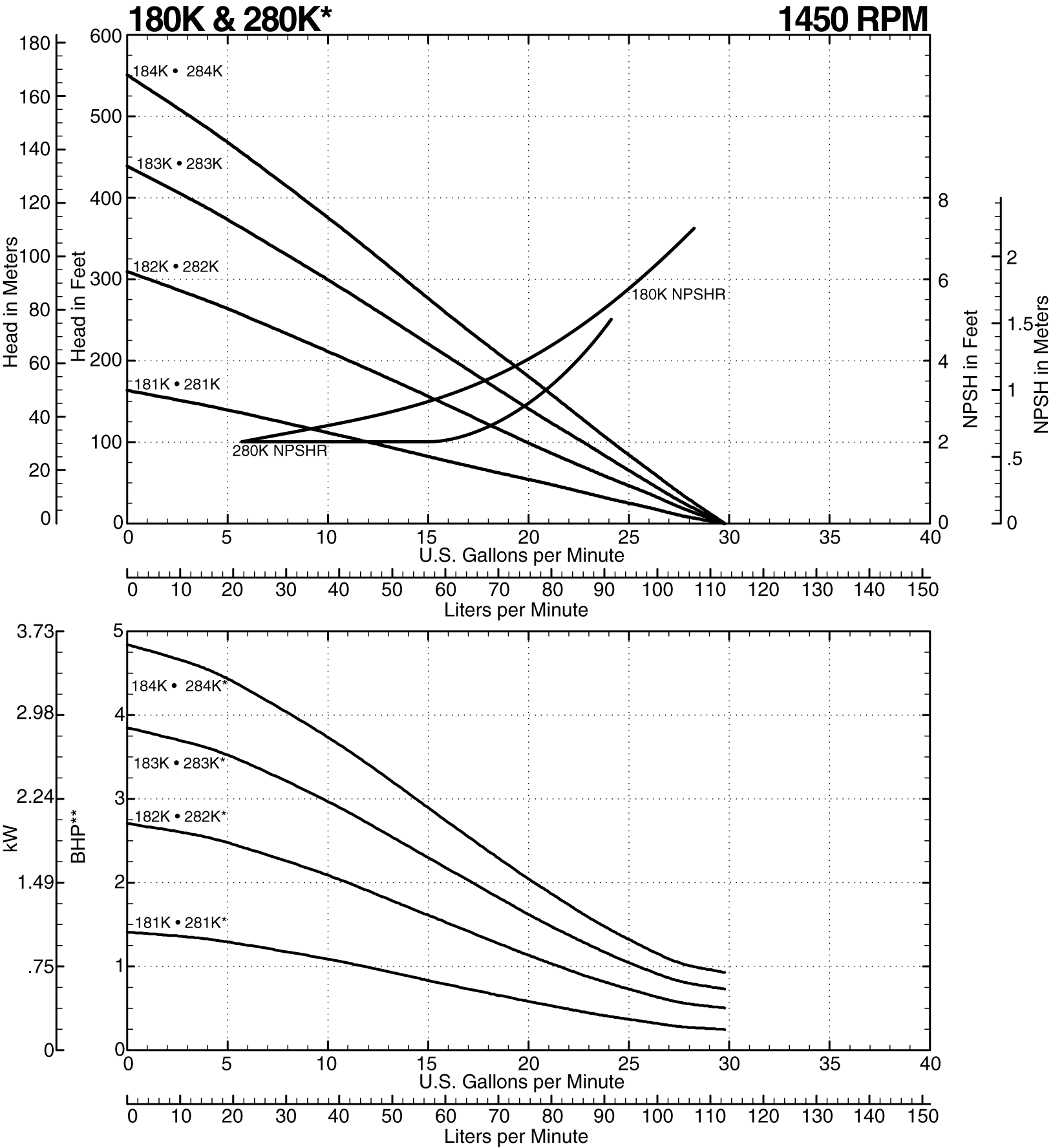

180K Curve at 1450 RPM Thumbnail
<< Prev Model Next Model >>

Notes: Consult factory for operation below 14 GPM
*Add 1/2 horsepower for 240 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Click here to return to the 140 • 180 • 240 • 280 Series Product Information Page.
