150 • 160 • 170 • 250 • 260 • 270 Series Regenerative Turbine Pumps
Dimensional Drawings
Horizontal Flex-Coupled

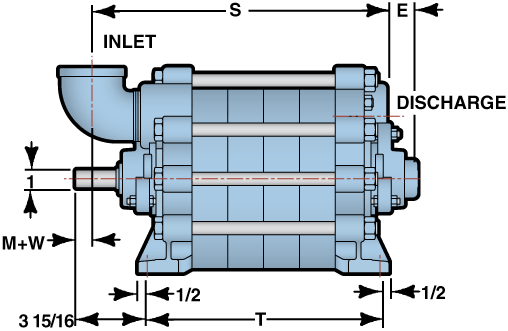

150 • 160 • 170 Dimensions
 |
PUMP ONLY |
|||||||
| PUMP SERIES |
INLET |
DISCHARGE |
E |
F |
M+W |
S |
T |
|
| 151 • 161 |
2 |
2 |
1 13/16 |
11 |
1 |
10 1/8 |
7 |
|
| 152 • 162 |
2 |
2 |
1 13/16 |
11 |
1 |
12 1/8 |
9 |
|
| 153 • 163 |
2 |
2 |
1 13/16 |
11 |
1 |
14 1/8 |
11 |
|
| 154 • 164 |
2 |
2 |
1 13/16 |
11 |
1 |
16 1/8 |
13 |
|
| 171 |
2 1/2 |
2 1/2 |
1 15/16 |
11 1/2 |
1 1/2 |
12 1/2 |
9 |
|
| 172 |
2 1/2 |
2 1/2 |
1 15/16 |
11 1/2 |
1 1/2 |
16 1/2 |
13 |
|
| 173 |
2 1/2 |
2 1/2 |
1 15/16 |
11 1/2 |
1 1/2 |
20 1/2 |
17 |
|
| 174 |
2 1/2 |
2 1/2 |
1 15/16 |
11 1/2 |
1 1/2 |
24 1/2 |
21 |
|
150 • 160 Series |
|||||||||||||||||||||
| FRAME |
CPLG |
ALL 150 • 160 MODELS |
|
MODEL 151 • 161 |
|
MODEL 152 • 162 |
|
MODEL 153 • 163 |
|
MODEL 154 • 164 |
|||||||||||
| EE |
D |
HD |
F |
|
L |
W |
S |
|
L |
W |
S |
|
L |
W |
S |
|
L |
W |
S |
||
| 143T |
4J |
2 1/4 |
5 1/4 |
12 1/2 |
11 |
|
28 |
12 |
10 1/8 |
|
30 |
12 |
12 1/8 |
|
32 |
12 |
14 1/8 |
|
35 |
12 |
16 1/8 |
| 145T |
4J |
2 1/4 |
5 1/4 |
12 1/2 |
11 |
|
28 |
12 |
10 1/8 |
|
30 |
12 |
12 1/8 |
|
32 |
12 |
14 1/8 |
|
35 |
12 |
16 1/8 |
| 182T |
5J |
2 1/4 |
5 1/4 |
12 1/2 |
11 |
|
30 |
12 |
10 1/8 |
|
32 |
12 |
12 1/8 |
|
35 |
12 |
14 1/8 |
|
40 |
12 |
16 1/8 |
| 184T |
5J |
2 1/4 |
5 1/4 |
12 1/2 |
11 |
|
30 |
12 |
10 1/8 |
|
32 |
12 |
12 1/8 |
|
35 |
12 |
14 1/8 |
|
40 |
12 |
16 1/8 |
| 213T |
6J |
2 1/4 |
5 1/4 |
12 1/2 |
11 |
|
35 |
12 |
10 1/8 |
|
35 |
12 |
12 1/8 |
|
40 |
12 |
14 1/8 |
|
40 |
12 |
16 1/8 |
| 215T |
6J |
2 1/4 |
5 1/4 |
12 1/2 |
11 |
|
35 |
12 |
10 1/8 |
|
35 |
12 |
12 1/8 |
|
40 |
12 |
14 1/8 |
|
40 |
12 |
16 1/8 |
| 254T |
7S |
2 1/4 |
6 1/4 |
13 1/2 |
12 |
|
40 |
15 |
10 1/8 |
|
40 |
15 |
12 1/8 |
|
45 |
15 |
14 1/8 |
|
45 |
15 |
16 1/8 |
| 256T |
8S |
2 1/4 |
6 1/4 |
13 1/2 |
12 |
|
40 |
15 |
10 1/8 |
|
40 |
15 |
12 1/8 |
|
45 |
15 |
14 1/8 |
|
45 |
15 |
16 1/8 |
| 284T |
8S |
2 1/4 |
7 |
14 1/4 |
12 3/4 |
|
40 |
15 |
10 1/8 |
|
45 |
15 |
12 1/8 |
|
45 |
15 |
14 1/8 |
|
50 |
15 |
16 1/8 |
| 286T |
8S |
2 1/4 |
7 |
14 1/4 |
12 3/4 |
|
40 |
15 |
10 1/8 |
|
45 |
15 |
12 1/8 |
|
45 |
15 |
14 1/8 |
|
50 |
15 |
16 1/8 |
| 324T |
8S |
2 1/4 |
8 |
15 1/4 |
13 3/4 |
|
45 |
18 |
10 1/8 |
|
45 |
18 |
12 1/8 |
|
50 |
18 |
14 1/8 |
|
50 |
18 |
16 1/8 |
| 326T |
8S |
2 1/4 |
8 |
15 1/4 |
13 3/4 |
|
45 |
18 |
10 1/8 |
|
45 |
18 |
12 1/8 |
|
50 |
18 |
14 1/8 |
|
50 |
18 |
16 1/8 |
| 364T |
8S |
2 1/4 |
9 |
16 1/4 |
14 3/4 |
|
50 |
18 |
10 1/8 |
|
50 |
18 |
12 1/8 |
|
50 |
18 |
14 1/8 |
|
55 |
18 |
16 1/8 |
170 Series |
|||||||||||||||||||||
| FRAME |
CPLG |
ALL 170 MODELS |
|
MODEL 171 |
|
MODEL 172 |
|
MODEL 173 |
|
MODEL 174 |
|||||||||||
| EE |
D |
HD |
F |
|
L |
W |
S |
|
L |
W |
S |
|
L |
W |
S |
|
L |
W |
S |
||
| 143T |
4J |
2 1/8 |
5 1/4 |
13 1/4 |
11 |
|
30 |
12 |
12 1/2 |
|
33 |
12 |
16 1/2 |
|
40 |
12 |
20 1/2 |
|
45 |
12 |
24 1/2 |
| 145T |
4J |
2 1/8 |
5 1/4 |
13 1/4 |
11 |
|
30 |
12 |
12 1/2 |
|
33 |
12 |
16 1/2 |
|
40 |
12 |
20 1/2 |
|
45 |
12 |
24 1/2 |
| 182T |
5J |
2 1/8 |
5 1/4 |
13 1/4 |
11 |
|
32 |
12 |
12 1/2 |
|
38 |
12 |
16 1/2 |
|
40 |
12 |
20 1/2 |
|
45 |
12 |
24 1/2 |
| 184T |
5J |
2 1/8 |
5 1/4 |
13 1/4 |
11 |
|
32 |
12 |
12 1/2 |
|
38 |
12 |
16 1/2 |
|
40 |
12 |
20 1/2 |
|
45 |
12 |
24 1/2 |
| 213T |
6J |
2 1/8 |
5 1/4 |
13 1/4 |
11 |
|
35 |
12 |
12 1/2 |
|
40 |
12 |
16 1/2 |
|
45 |
12 |
20 1/2 |
|
50 |
12 |
24 1/2 |
| 215T |
6J |
2 1/8 |
5 1/4 |
13 1/4 |
11 |
|
35 |
12 |
12 1/2 |
|
40 |
12 |
16 1/2 |
|
45 |
12 |
20 1/2 |
|
50 |
12 |
24 1/2 |
| 254T |
7S |
2 1/8 |
6 1/4 |
14 1/4 |
12 |
|
40 |
15 |
12 1/2 |
|
45 |
15 |
16 1/2 |
|
50 |
15 |
20 1/2 |
|
55 |
15 |
24 1/2 |
| 256T |
8S |
2 1/8 |
6 1/4 |
14 1/4 |
12 |
|
40 |
15 |
12 1/2 |
|
45 |
15 |
16 1/2 |
|
50 |
15 |
20 1/2 |
|
55 |
15 |
24 1/2 |
| 284T |
8S |
2 1/8 |
7 |
15 |
12 3/4 |
|
45 |
15 |
12 1/2 |
|
45 |
15 |
16 1/2 |
|
50 |
15 |
20 1/2 |
|
55 |
15 |
24 1/2 |
| 286T |
8S |
2 1/8 |
7 |
15 |
12 3/4 |
|
45 |
15 |
12 1/2 |
|
45 |
15 |
16 1/2 |
|
50 |
15 |
20 1/2 |
|
55 |
15 |
24 1/2 |
| 324T |
8S |
2 1/8 |
8 |
16 |
13 3/4 |
|
45 |
18 |
12 1/2 |
|
50 |
18 |
16 1/2 |
|
55 |
18 |
20 1/2 |
|
60 |
18 |
24 1/2 |
| 326T |
8S |
2 1/8 |
8 |
16 |
13 3/4 |
|
45 |
18 |
12 1/2 |
|
50 |
18 |
16 1/2 |
|
55 |
18 |
20 1/2 |
|
60 |
18 |
24 1/2 |
| 364T |
8S |
2 1/8 |
9 |
17 |
14 3/4 |
|
50 |
18 |
12 1/2 |
|
50 |
18 |
16 1/2 |
|
55 |
18 |
20 1/2 |
|
60 |
18 |
24 1/2 |
| All dimensions in inches. May vary ± 1/4 inches. |
|||||||||||||||||||||

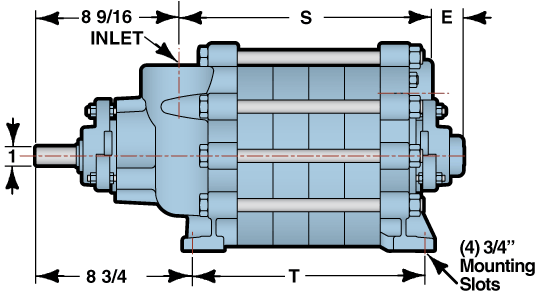

250 • 260 • 270 Dimensions
 |
PUMP ONLY |
||||||
| PUMP SERIES |
INLET |
DISCHARGE |
E |
F |
S |
T |
|
| 251 • 261 |
2 1/2 |
2 |
1 13/16 |
10 1/4 |
8 |
7 |
|
| 252 • 262 |
2 1/2 |
2 |
1 13/16 |
10 1/4 |
10 |
9 |
|
| 253 • 263 |
2 1/2 |
2 |
1 13/16 |
10 1/4 |
12 |
11 |
|
| 254 • 264 |
2 1/2 |
2 |
1 13/16 |
10 1/4 |
14 |
13 |
|
| 271 |
2 1/2 |
2 1/2 |
1 15/16 |
10 1/4 |
10 |
9 |
|
| 272 |
2 1/2 |
2 1/2 |
1 15/16 |
10 1/4 |
17 |
13 |
|
| 273 |
2 1/2 |
2 1/2 |
1 15/16 |
10 1/4 |
18 |
17 |
|
| 274 |
2 1/2 |
2 1/2 |
1 15/16 |
10 1/4 |
22 |
21 |
|
250 • 260 Series |
|||||||||||||||||||||
| FRAME |
CPLG |
ALL 250 • 260 MODELS |
|
MODEL 251 • 261 |
|
MODEL 252 • 262 |
|
MODEL 253 • 263 |
|
MODEL 254 • 264 |
|||||||||||
| EE |
D |
HD |
F |
|
L |
W |
S |
|
L |
W |
S |
|
L |
W |
S |
|
L |
W |
S |
||
| 143T |
4J |
2 1/4 |
5 1/4 |
11 3/4 |
10 1/4 |
|
35 |
12 |
8 |
|
35 |
12 |
10 |
|
--- |
--- |
--- |
|
--- |
--- |
--- |
| 145T |
4J |
2 1/4 |
5 1/4 |
11 3/4 |
10 1/4 |
|
35 |
12 |
8 |
|
35 |
12 |
10 |
|
--- |
--- |
--- |
|
--- |
--- |
--- |
| 182T |
5J |
2 1/4 |
5 1/4 |
11 3/4 |
10 1/4 |
|
35 |
12 |
8 |
|
40 |
12 |
10 |
|
40 |
12 |
12 |
|
45 |
12 |
14 |
| 184T |
5J |
2 1/4 |
5 1/4 |
11 3/4 |
10 1/4 |
|
35 |
12 |
8 |
|
40 |
12 |
10 |
|
40 |
12 |
12 |
|
45 |
12 |
14 |
| 213T |
6J |
2 1/4 |
5 1/4 |
11 3/4 |
10 1/4 |
|
40 |
12 |
8 |
|
40 |
12 |
10 |
|
45 |
12 |
12 |
|
45 |
12 |
14 |
| 215T |
6J |
2 1/4 |
5 1/4 |
11 3/4 |
10 1/4 |
|
40 |
12 |
8 |
|
40 |
12 |
10 |
|
45 |
12 |
12 |
|
45 |
12 |
14 |
| 254T |
7S |
2 1/4 |
6 1/4 |
12 3/4 |
11 1/4 |
|
45 |
15 |
8 |
|
45 |
15 |
10 |
|
50 |
15 |
12 |
|
50 |
15 |
14 |
| 256T |
8S |
2 1/4 |
6 1/4 |
12 3/4 |
11 1/4 |
|
45 |
15 |
8 |
|
45 |
15 |
10 |
|
50 |
15 |
12 |
|
50 |
15 |
14 |
| 284T |
8S |
2 1/4 |
7 |
13 1/2 |
12 |
|
45 |
15 |
8 |
|
50 |
15 |
10 |
|
50 |
15 |
12 |
|
50 |
15 |
14 |
| 286T |
8S |
2 1/4 |
7 |
13 1/2 |
12 |
|
45 |
15 |
8 |
|
50 |
15 |
10 |
|
50 |
15 |
12 |
|
50 |
15 |
14 |
| 324T |
8S |
2 1/4 |
8 |
14 1/2 |
13 |
|
50 |
18 |
8 |
|
50 |
18 |
10 |
|
55 |
18 |
12 |
|
55 |
18 |
14 |
| 326T |
8S |
2 1/4 |
8 |
14 1/2 |
13 |
|
50 |
18 |
8 |
|
50 |
18 |
10 |
|
55 |
18 |
12 |
|
55 |
18 |
14 |
| 364T |
8S |
2 1/4 |
9 |
15 1/2 |
14 |
|
50 |
18 |
8 |
|
50 |
18 |
10 |
|
55 |
18 |
12 |
|
55 |
18 |
14 |
270 Series |
|||||||||||||||||||||
| FRAME |
CPLG |
ALL 270 MODELS |
|
MODEL 271 |
|
MODEL 272 |
|
MODEL 273 |
|
MODEL 274 |
|||||||||||
| EE |
D |
HD |
F |
|
L |
W |
S |
|
L |
W |
S |
|
L |
W |
S |
|
L |
W |
S |
||
| 143T |
4J |
2 1/8 |
5 1/4 |
11 3/4 |
10 1/4 |
|
35 |
12 |
10 |
|
40 |
12 |
14 |
|
--- |
--- |
--- |
|
--- |
--- |
--- |
| 145T |
4J |
2 1/8 |
5 1/4 |
11 3/4 |
10 1/4 |
|
35 |
12 |
10 |
|
40 |
12 |
14 |
|
--- |
--- |
--- |
|
--- |
--- |
--- |
| 182T |
5J |
2 1/8 |
5 1/4 |
11 3/4 |
10 1/4 |
|
35 |
12 |
10 |
|
45 |
12 |
14 |
|
45 |
12 |
18 |
|
50 |
12 |
22 |
| 184T |
5J |
2 1/8 |
5 1/4 |
11 3/4 |
10 1/4 |
|
35 |
12 |
10 |
|
45 |
12 |
14 |
|
45 |
12 |
18 |
|
50 |
12 |
22 |
| 213T |
6J |
2 1/8 |
5 1/4 |
11 3/4 |
10 1/4 |
|
40 |
12 |
10 |
|
45 |
12 |
14 |
|
50 |
12 |
18 |
|
55 |
12 |
22 |
| 215T |
6J |
2 1/8 |
5 1/4 |
11 3/4 |
10 1/4 |
|
40 |
12 |
10 |
|
45 |
12 |
14 |
|
50 |
12 |
18 |
|
55 |
12 |
22 |
| 254T |
7S |
2 1/8 |
6 1/4 |
12 3/4 |
11 1/4 |
|
45 |
15 |
10 |
|
50 |
15 |
14 |
|
55 |
15 |
18 |
|
60 |
15 |
22 |
| 256T |
8S |
2 1/8 |
6 1/4 |
12 3/4 |
11 1/4 |
|
45 |
15 |
10 |
|
50 |
15 |
14 |
|
55 |
15 |
18 |
|
60 |
15 |
22 |
| 284T |
8S |
2 1/8 |
7 |
13 1/2 |
12 |
|
45 |
15 |
10 |
|
50 |
15 |
14 |
|
55 |
15 |
18 |
|
60 |
15 |
22 |
| 286T |
8S |
2 1/8 |
7 |
13 1/2 |
12 |
|
45 |
15 |
10 |
|
50 |
15 |
14 |
|
55 |
15 |
18 |
|
60 |
15 |
22 |
| 324T |
8S |
2 1/8 |
8 |
14 1/2 |
13 |
|
50 |
18 |
10 |
|
55 |
18 |
14 |
|
60 |
18 |
18 |
|
60 |
18 |
22 |
| 326T |
8S |
2 1/8 |
8 |
14 1/2 |
13 |
|
50 |
18 |
10 |
|
55 |
18 |
14 |
|
60 |
18 |
18 |
|
60 |
18 |
22 |
| 364T |
8S |
2 1/8 |
9 |
15 1/2 |
14 |
|
50 |
18 |
10 |
|
55 |
18 |
14 |
|
60 |
18 |
18 |
|
60 |
18 |
22 |
| All dimensions in inches. May vary ± 1/4 inches. |
|||||||||||||||||||||
Click here to return to the 150 • 160 • 170 Product Information Page.
For a copy of the 150 • 250 • 160 • 260 • 170 • 270 Manual and 150 • 250 • 160 • 260 • 170 • 270 Parts List, go to the Product Support Page.
Download a printable version of the 150 • 250 • 160 • 260 • 170 • 270 Product Bulletin in .pdf format.
