MTH Pumps, 170K Individual Performance Curves

Models 170K • 270K Individual Curve

150 • 160 • 170 • 250 • 260 • 270 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

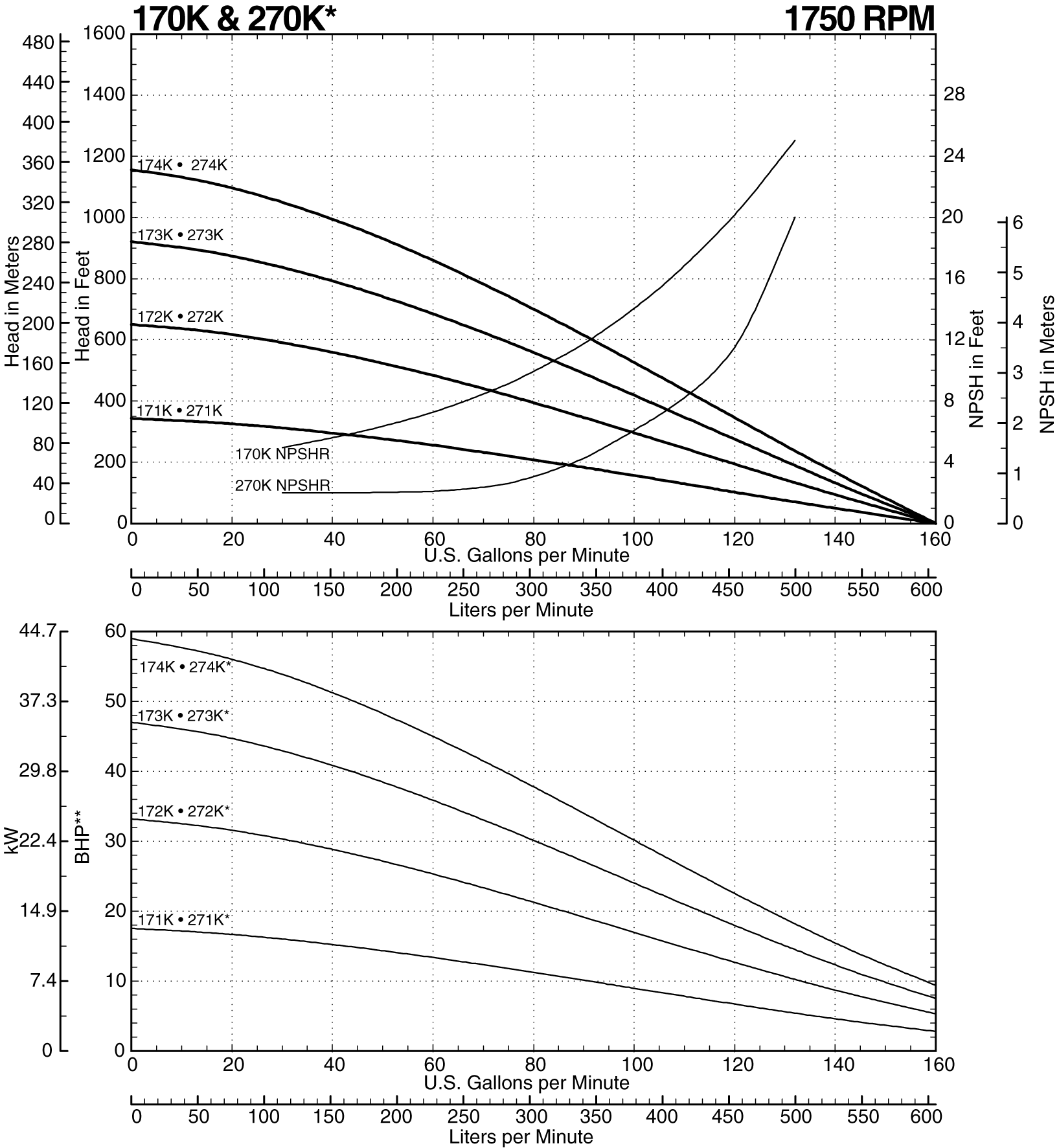

See this individual curve in 1750 RPM, 60Hz Operation

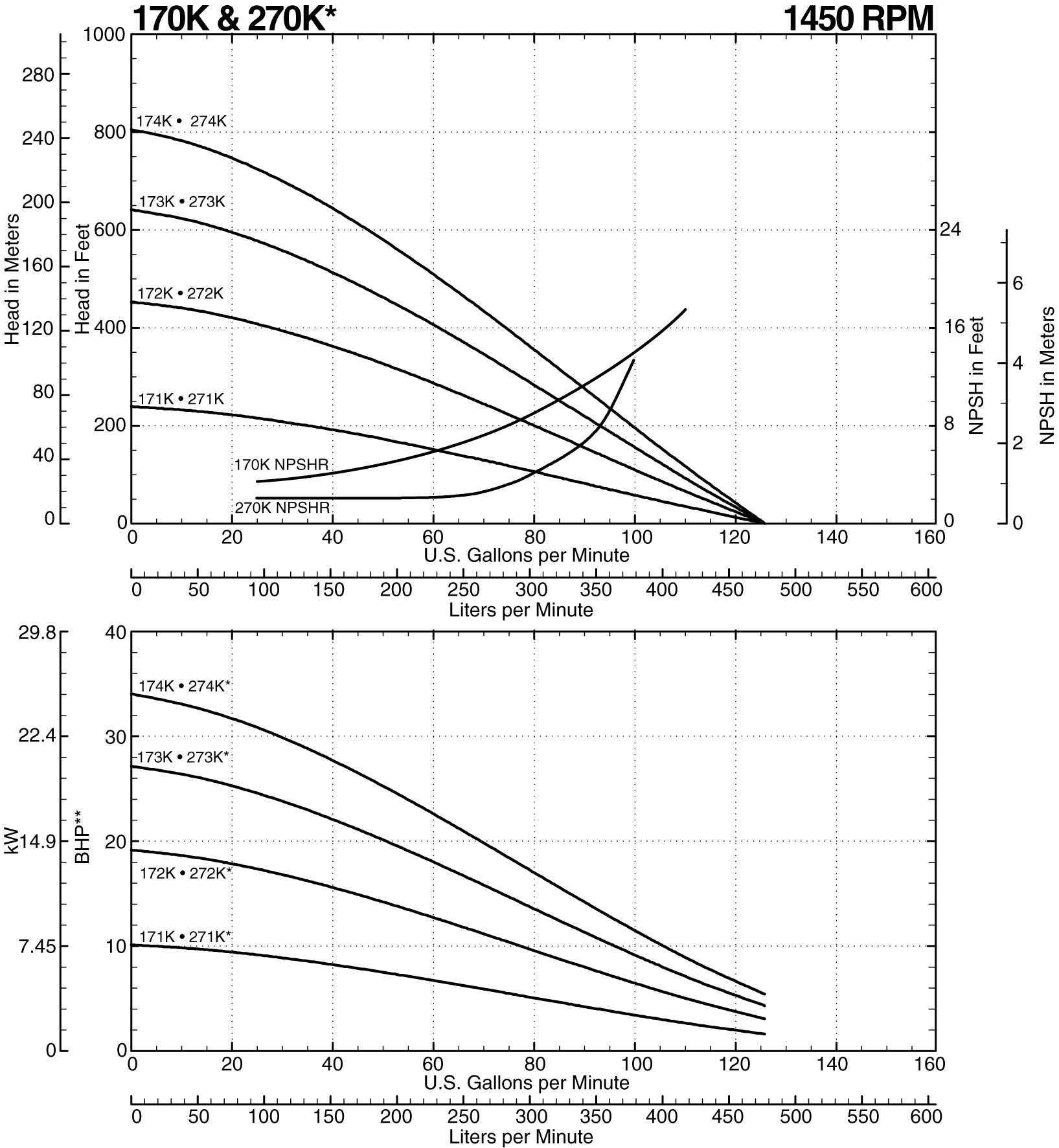

See this individual curve in 1450 RPM, 50Hz Operation

<< Prev Model
See how the 170K curve performs at different speeds.

Notes: Do not exceed 1150 TDH with 1.0 S.G. fluids
Consult factory for operation below 64.0 GPM
*Add 1 horsepower for 270 Series models
**Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Models 170K • 270K Individual Curve

See how the 170K curve performs at different speeds.
