Arrow

C41EF - 1 1/2 HP Individual Curve

C41 • C51 • C61 Product Information Page

2 X 1 ½ X 4

(Inlet X Discharge X Impeller Diameter in Inches)

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

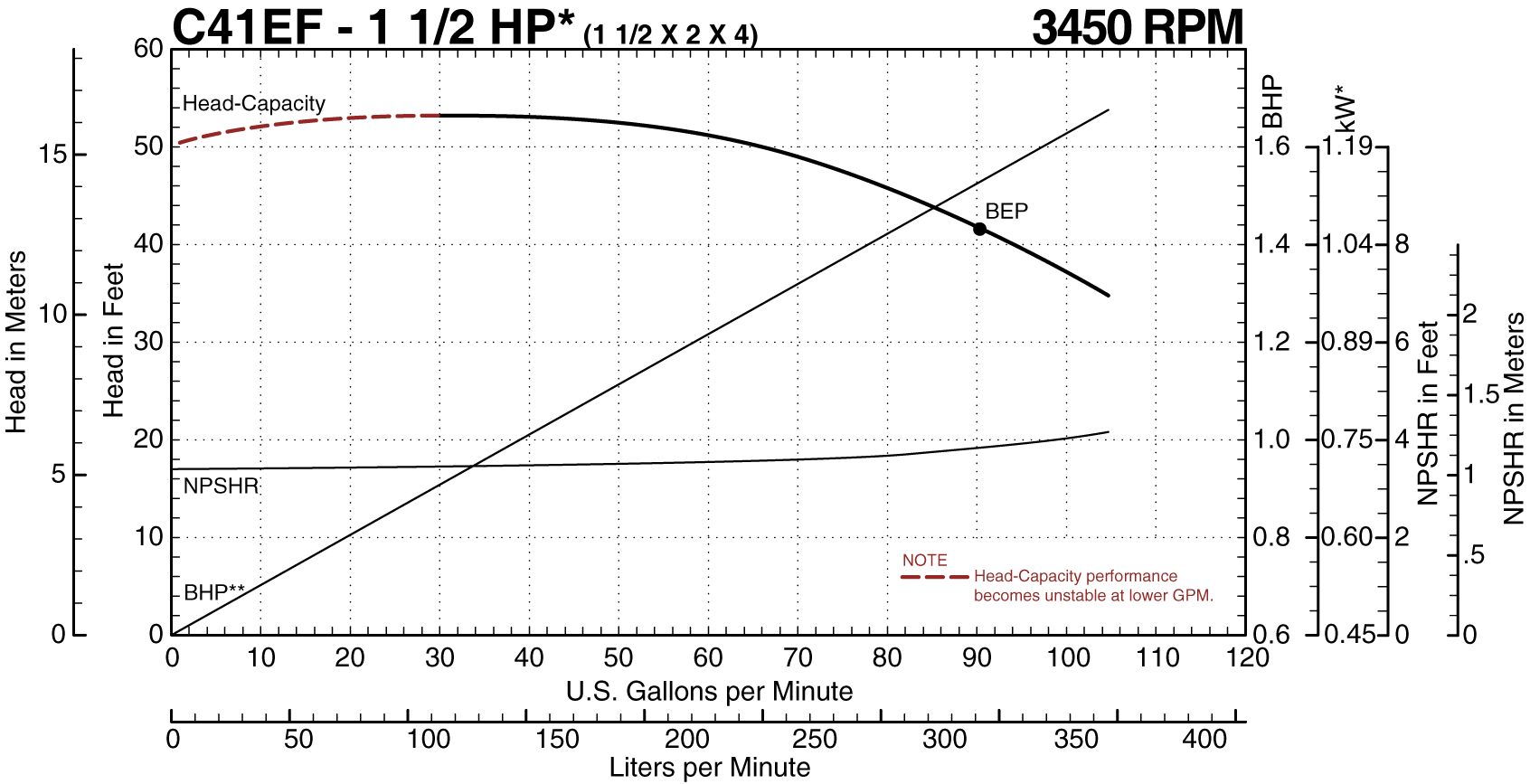

60hz c41ef 1 1/2 hp

60hz c41ef 1 1/2 hp Thumbnail

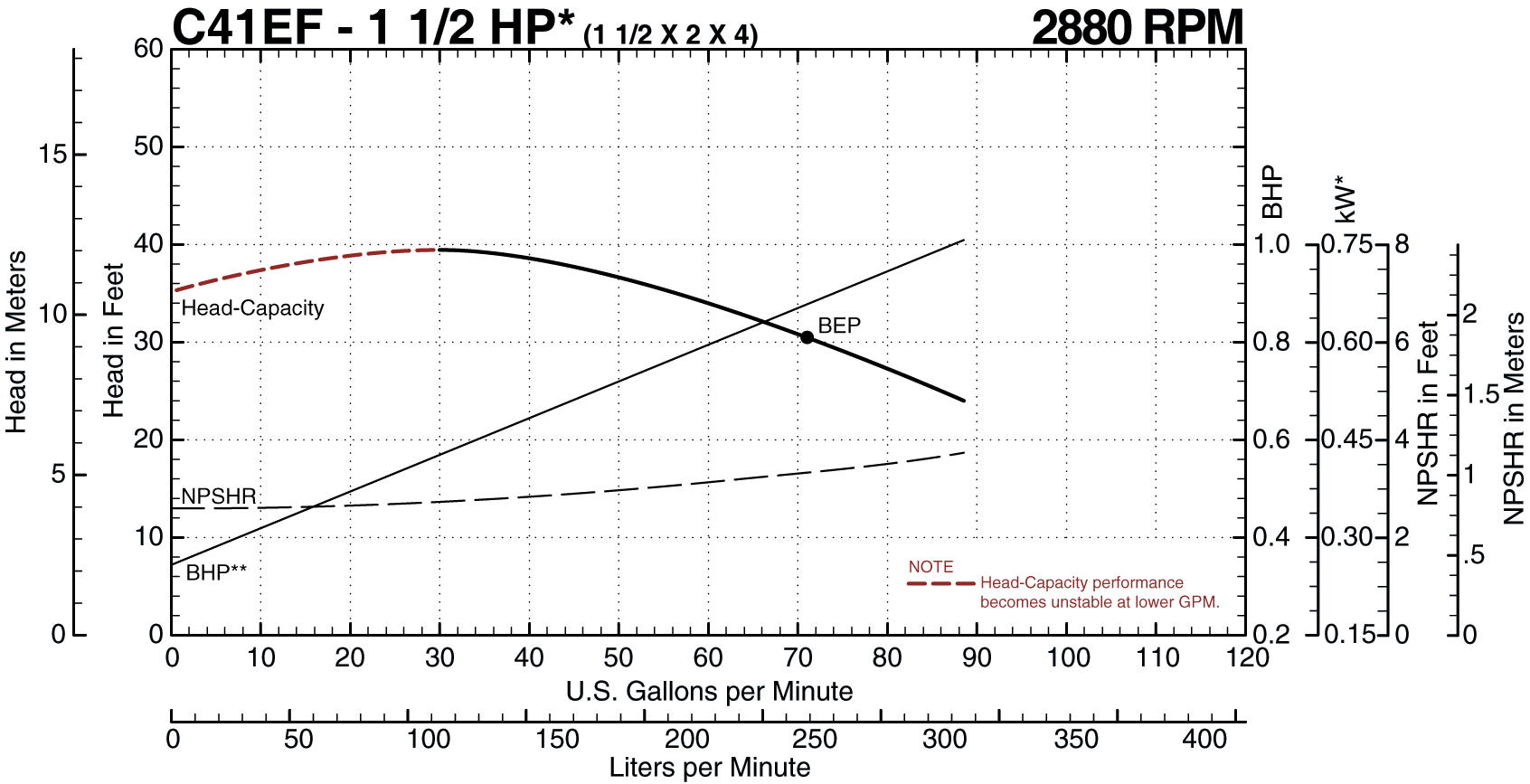

50hz c41ef 1 1/2 hp Thumbnail

Next Model >>

Notes:
DOE Compliance: IMP DIA = 4.00” PEIcl = 0.89
*High Service Factor Motor Horsepower Selections - See Standard Motor Guide and/or Motor Price Sheets for more information.
**BHP data valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Click here to return to the C Series Centrifugal Pumps Product Information Page.
