DC10 Washdown 12 Volt Pump

Previous Page

DC10 Pump

  • 100% Solid Stainless Steel Construction

  • Capacities to 25 GPM

  • Heads to 92 Feet (40 PSI)

  • Temperatures from -20° to 250°F

  • End Suction and Top, Bottom, or Side Discharge

  • 12VDC 1HP TENV Motor

  • Weighs 48 LBS

Introducing the MTH Pumps DC10, a 12 Volt DC Washdown pump meticulously crafted to excel in a range of applications. Engineered to cater to OEM, chemical processing, septic service, pumper, and marine sectors requiring the prowess of a DC motor, this pump is purpose-built for versatility.

Available in a robust all-cast stainless steel construction and featuring a dry-run mechanical seal, the DC10 is fully customizable to meet your precise specifications. Its pull-from-rear design ensures effortless servicing without any disruption to your piping setup, enhancing convenience and efficiency.

The inclusion of a stainless steel impeller further amplifies its performance, delivering optimal results in various operational scenarios. It's important to note that these pumps are not self-priming and necessitate a flooded suction setup for operation. The accompanying motor boasts a one-hour duty rating and comes equipped with a stainless steel shaft for added durability.

DC10 Comparison

The DC10 shines with its 12 Volt DC washdown duty motors that are meticulously engineered to withstand challenging washdown and wet environments. While engineered for washdown duty, it's essential to mention that these units are not suitable for submersion in liquids.

The MTH Pumps DC10 is your solution for reliable and efficient pumping needs, ensuring performance that meets and exceeds expectations.

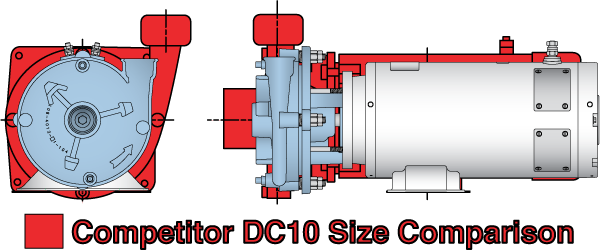

Dimensional Comparison

DC10 Size Comparison

Design Features

Impeller Design
DC Series semi-open impellers allow the pump to pass small solids and fibrous material while close running tolerances maintain high efficiency and performance. Impellers are pre-trimmed to be non-overloading to the pump and motor size indicated.

Mechanical Seal Box
The large seal chamber provides a wide fluid passage area for maximum cooling of the seal faces and allows debris and gases to be flushed away.

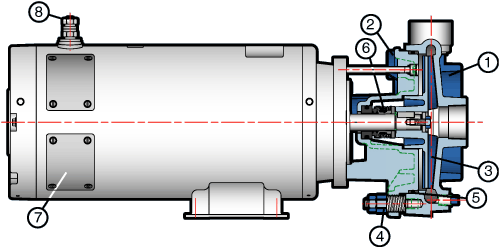

Diagram & Specs

(1) Stainless Steel Casing
(2) Stainless Steel Motor Bracket
(3) Cast Stainless Steel Impeller
(4) Adjustable Impeller-to-Casing Clearance
(5) “O” Ring Style Elastomer
(6) Long Lasting Dry Run Mechanical Seal
(7) Compact Totally Enclosed DC Motor
(8) Easy Access Brass Terminals
DC10 Sectional

Construction Materials

PART

STANDARD CONSTRUCTION

OPTIONS

Motor Bracket and Casing

Stainless Steel

---

Impeller

Stainless Steel

---

Motor Shaft

Stainless Steel

---

Elastomers

Buna

EPR/Viton

Seals

Carbon/EPR

Silicon Carbide

Seats

Ceramic/EPR

Silicon Carbide

Limitations

Casing Pressure

200 PSI

Seal Pressure* (Max)

145 PSI

Suction Pressure (Min.)

26" Hg Vac.

Speed (Max.)

3600 RPM

Temperature



Standard Construction

-20° F

Ceramic Seal Seat - Water

+230° F

Silicon Carbide

+250° F

Horsepower



12 VDC

1 HP

Weight



Standard Pump

48 LBS

* Consult factory for pressures over 145 psi

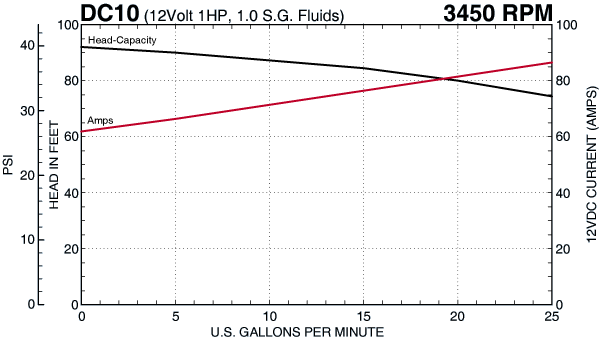

DC10 Performance Curves

DC10 Curve
DOE Compliance: IMP DIA = 5.12” PEIcl = 0.99

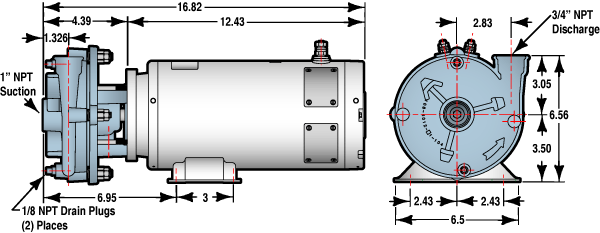

DC10 Dimensions

DC10 Dimensions

DC10 Options

Seal Flushing Lines can be added for extended life of the Mechanical Seals, especially when pumping fluids that contain solids and debris.

For ease of installation, the pump discharge can be rotated in 90° increments by rotating the casing during the assembly process.

Download a printable version of the DC10 Product Bulletin in .pdf format.
