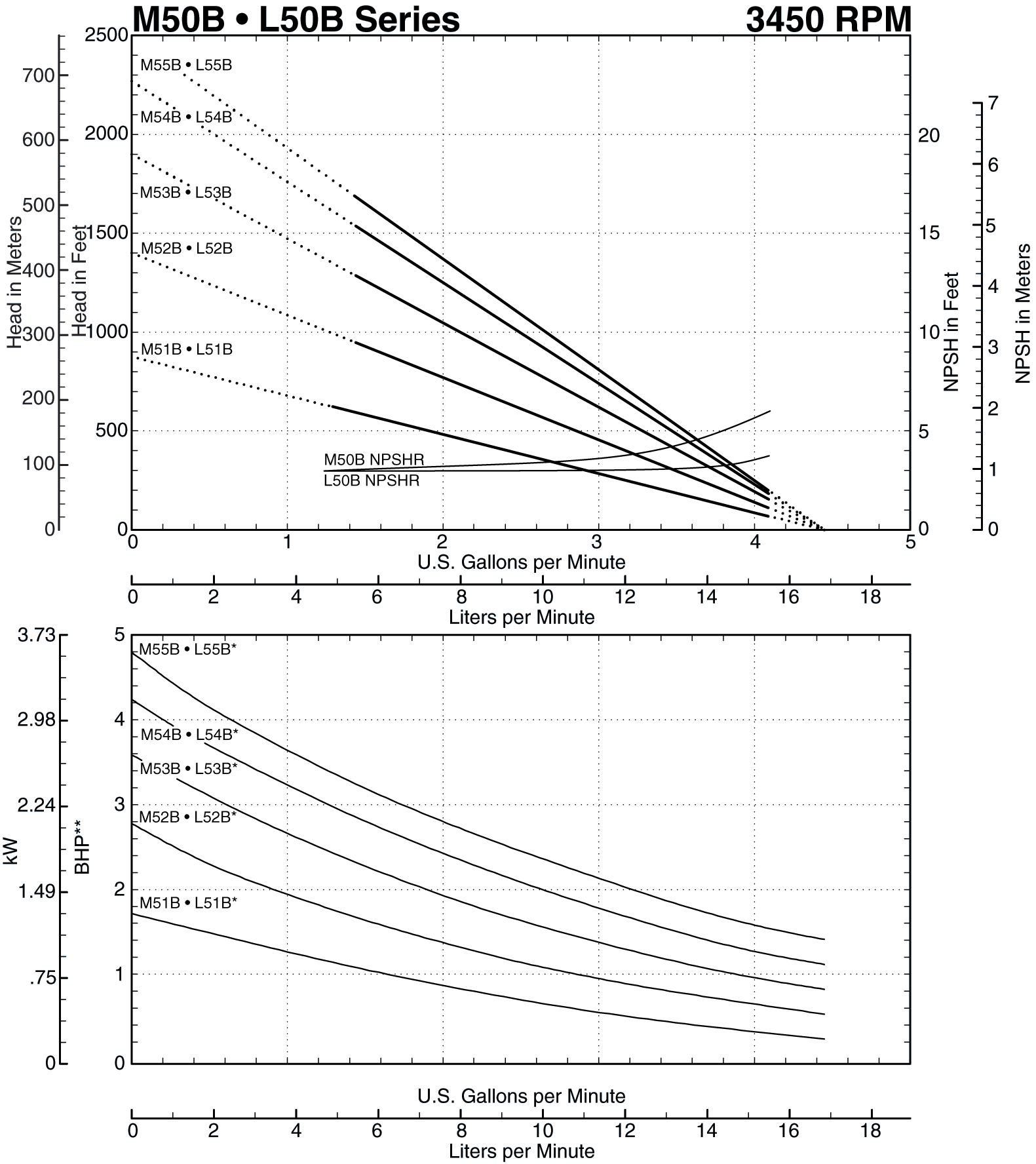

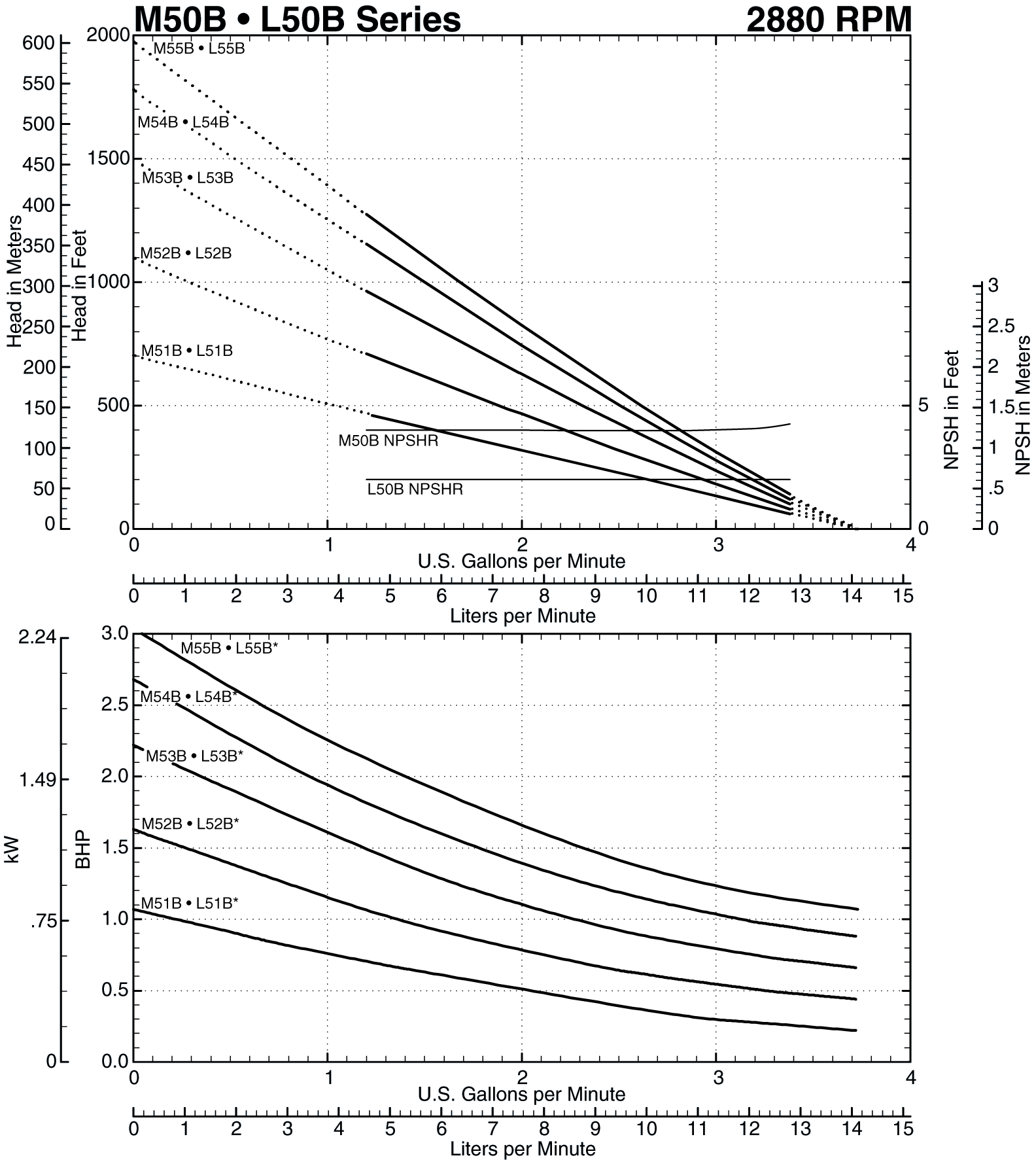

Model M51B•L51B thru M55B•L55B Individual Curve
Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.
|
Notes:
Recommended Operating Range
Refer to Factory for Operation in this Range
*Add .43 horsepower for L50B Inducer Models
Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
Click here to return to the M50 • L50 Product Information Page.
