M50 • L50 Series Regenerative Turbine Pumps
Dimensions

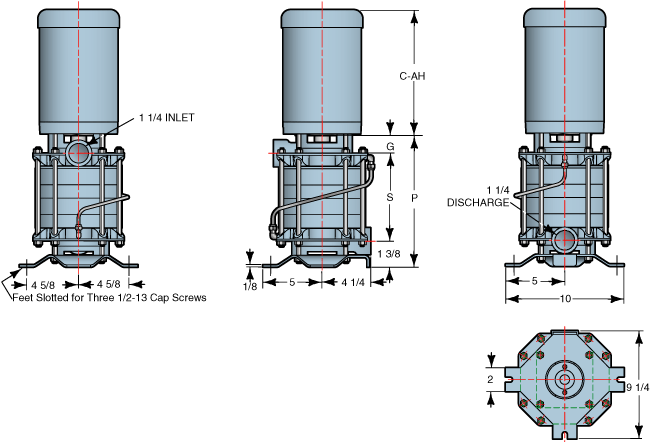

Vertical Close Coupled |
||||||||||||
Multi-Stage (L51 • M52 • L52 • M53 • L53 • M54 • L54 • M55 • L55) |
Zoom
M50 PUMPS WITHOUT INDUCER |
||||||||||||
FRAME |
ALL |
MODEL M51 |
MODEL M52 |
MODEL M53 |
MODEL M54 |
MODEL M55 |
||||||
G |
S |
P |
S |
P |
S |
P |
S |
P |
S |
P |
||
56C |
13 |
1 3/16 |
SEE BELOW |
7 1/2 |
10 1/16 |
10 |
12 9/16 |
12 1/2 |
15 1/16 |
15 |
17 9/16 |
|
|
13 |
1 3/16 |
7 1/2 |
10 1/16 |
10 |
12 9/16 |
12 1/2 |
15 1/16 |
15 |
17 9/16 |
||
|
14 1/2 |
1 3/16 |
7 1/2 |
10 1/16 |
10 |
12 9/16 |
12 1/2 |
15 1/16 |
15 |
17 9/16 |
||
213T-215T |
17 |
1 3/16 |
7 1/2 |
10 1/16 |
10 |
12 9/16 |
12 1/2 |
15 1/16 |
15 |
17 9/16 |
||
254T-256T |
21 1/2 |
1 3/16 |
7 1/2 |
10 1/16 |
10 |
12 9/16 |
12 1/2 |
15 1/16 |
15 |
17 9/16 |
||
284TS-286TS |
23 1/2 |
1 3/16 |
7 1/2 |
10 1/16 |
10 |
12 9/16 |
12 1/2 |
15 1/16 |
15 |
17 9/16 |
L50 PUMPS WITH INDUCER
FRAME |
ALL |
MODEL L51 |
MODEL L52 |
MODEL L53 |
MODEL L54 |
MODEL L55 |
||||||
C-AH |
G |
S |
P |
S |
P |
S |
P |
S |
P |
S |
P |
|
56C |
13 |
2 1/4 |
5 15/16 |
9 9/16 |
8 7/16 |
12 1/16 |
10 15/16 |
14 9/16 |
13 7/16 |
17 1/16 |
15 15/16 |
19 9/16 |
|
13 |
2 1/4 |
5 15/16 |
9 9/16 |
8 7/16 |
12 1/16 |
10 15/16 |
14 9/16 |
13 7/16 |
17 1/16 |
15 15/16 |
19 9/16 |
|
14 1/2 |
2 1/4 |
5 15/16 |
9 9/16 |
8 7/16 |
12 1/16 |
10 15/16 |
14 9/16 |
13 7/16 |
17 1/16 |
15 15/16 |
19 9/16 |
213T-215T |
17 |
2 1/4 |
5 15/16 |
9 9/16 |
8 7/16 |
12 1/16 |
10 15/16 |
14 9/16 |
13 7/16 |
17 1/16 |
15 15/16 |
19 9/16 |
254T-256T |
21 1/2 |
2 1/4 |
5 15/16 |
9 9/16 |
8 7/16 |
12 1/16 |
10 15/16 |
14 9/16 |
13 7/16 |
17 1/16 |
15 15/16 |
19 9/16 |
284TS-286TS |
23 1/2 |
2 1/4 |
5 15/16 |
9 9/16 |
8 7/16 |
12 1/16 |
10 15/16 |
14 9/16 |
13 7/16 |
17 1/16 |
15 15/16 |
19 9/16 |
Click here for further motor information

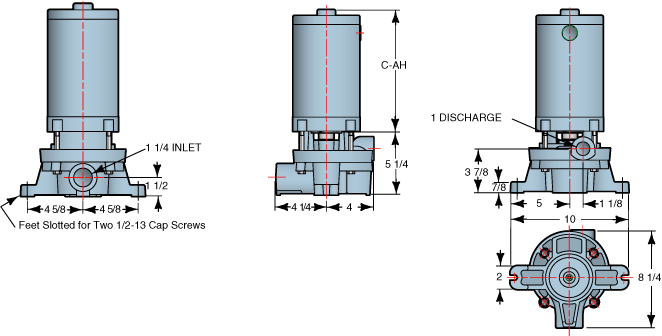

Single Stage (M51)
Zoom
All dimensions are in inches. May vary ± 1/4 inches. Model M52 shown in Multistage Dimensions. Model M51 shown in Single Stage Dimensions.

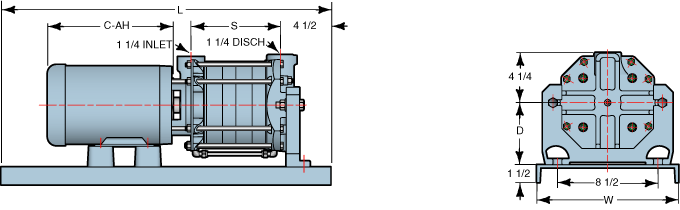

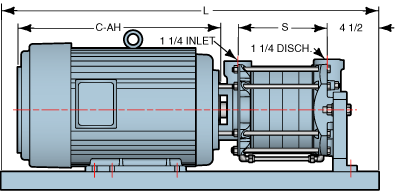

Horizontal Close Coupled |
C3 Motor Frame (L51 • M52 • L52 • M53 • L53 • M54 • L54 • M55 • L55)
Zoom
C30 Motor Frame (L51 • M52 • L52 • M53 • L53 • M54 • L54 • M55 • L55)
Zoom
M50 PUMPS WITHOUT INDUCER
FRAME |
ALL |
MODEL M51 |
MODEL M52 |
MODEL M53 |
MODEL M54 |
MODEL M55 |
||||||||||||
D |
W |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
||
56C |
5 1/4 |
13 |
12 |
REFER TO |
7 1/2 |
28 |
--- |
10 |
32 |
--- |
12 1/2 |
35 |
--- |
15 |
40 |
--- |
||
|
5 1/4 |
13 |
12 |
7 1/2 |
28 |
--- |
10 |
32 |
--- |
12 1/2 |
35 |
--- |
15 |
40 |
--- |
|||
|
5 1/4 |
14 1/2 |
12 |
7 1/2 |
30 |
28 |
10 |
32 |
30 |
12 1/2 |
35 |
30 |
15 |
40 |
35 |
|||
213T-215T |
5 1/4 |
17 |
12 |
7 1/2 |
--- |
32 |
10 |
--- |
35 |
12 1/2 |
--- |
40 |
15 |
--- |
40 |
|||
254T-256T |
6 1/4 |
21 1/2 |
15 |
7 1/2 |
--- |
35 |
10 |
--- |
40 |
12 1/2 |
--- |
40 |
15 |
--- |
45 |
|||
284TS-286TS |
7 |
23 1/2 |
15 |
7 1/2 |
--- |
40 |
10 |
--- |
40 |
12 1/2 |
--- |
45 |
15 |
--- |
45 |
L50 PUMPS WITH INDUCER
FRAME |
ALL |
MODEL L51 |
MODEL L52 |
MODEL L53 |
MODEL L54 |
MODEL L55 |
||||||||||||
D |
C-AH |
W |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
|
56C |
5 1/4 |
13 |
12 |
5 15/16 |
28 |
--- |
8 7/16 |
30 |
--- |
10 15/16 |
32 |
--- |
13 7/16 |
35 |
--- |
15 15/16 |
40 |
--- |
|
5 1/4 |
13 |
12 |
5 15/16 |
28 |
--- |
8 7/16 |
30 |
--- |
10 15/16 |
32 |
--- |
13 7/16 |
35 |
--- |
15 15/16 |
40 |
--- |
|
5 1/4 |
14 1/2 |
12 |
5 15/16 |
30 |
28 |
8 7/16 |
32 |
30 |
10 15/16 |
35 |
32 |
13 7/16 |
40 |
35 |
15 15/16 |
40 |
40 |
213T-215T |
5 1/4 |
17 |
12 |
5 15/16 |
--- |
30 |
8 7/16 |
--- |
35 |
10 15/16 |
--- |
35 |
13 7/16 |
--- |
40 |
15 15/16 |
--- |
40 |
254T-256T |
6 1/4 |
21 1/2 |
15 |
5 15/16 |
--- |
35 |
8 7/16 |
--- |
40 |
10 15/16 |
--- |
40 |
13 7/16 |
--- |
45 |
15 15/16 |
--- |
45 |
284TS-286TS |
7 |
23 1/2 |
15 |
5 15/16 |
--- |
40 |
8 7/16 |
--- |
40 |
10 15/16 |
--- |
45 |
13 7/16 |
--- |
45 |
15 15/16 |
--- |
50 |
All dimensions are in inches.
May vary ± 1/4 inches. Model M52 shown in Multistage Dimensions. |

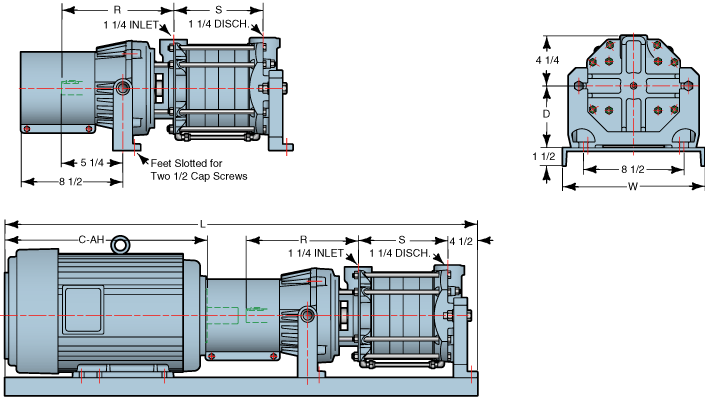

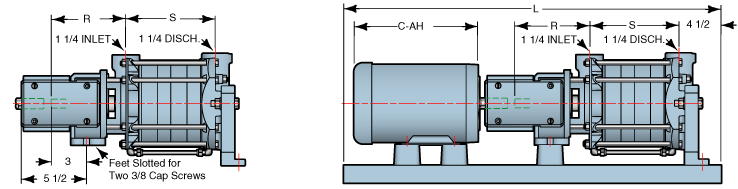

Horizontal Flexible Coupled
P3 Motor Frame (L51 • M52 • L52 • M53 • L53 • M54 • L54 • M55 • L55)
Zoom
P30 Motor Frame (L51 • M52 • L52 • M53 • L53 • M54 • L54 • M55 • L55)
Zoom
M50 PUMPS WITHOUT INDUCER
FRAME |
ALL |
MODEL M51 |
MODEL M52 |
MODEL M53 |
MODEL M54 |
MODEL M55 |
||||||||||||||
D |
C-AH |
R(P3) |
R(P30) |
W |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
|
56C |
5 1/4 |
13 |
5 15/16 |
9 1/6 |
12 |
REFER TO |
7 1/2 |
32 |
--- |
10 |
35 |
--- |
12 1/2 |
38 |
--- |
15 |
40 |
--- |
||
143T-145T |
5 1/4 |
13 |
5 15/16 |
9 1/6 |
12 |
7 1/2 |
35 |
--- |
10 |
35 |
--- |
12 1/2 |
38 |
--- |
15 |
40 |
--- |
|||
182T-184T |
5 1/4 |
14 1/2 |
5 15/16 |
9 1/6 |
12 |
7 1/2 |
35 |
40 |
10 |
38 |
45 |
12 1/2 |
40 |
45 |
15 |
45 |
50 |
|||
213T-215T |
5 1/4 |
17 |
5 15/16 |
9 1/6 |
12 |
7 1/2 |
--- |
45 |
10 |
--- |
45 |
12 1/2 |
--- |
50 |
15 |
--- |
50 |
|||
254T-256T |
6 1/4 |
21 1/2 |
5 15/16 |
9 1/6 |
15 |
7 1/2 |
--- |
50 |
10 |
--- |
50 |
12 1/2 |
--- |
55 |
15 |
--- |
55 |
|||
284TS-286TS |
7 |
23 1/2 |
5 15/16 |
9 1/6 |
15 |
7 1/2 |
--- |
50 |
10 |
--- |
55 |
12 1/2 |
--- |
55 |
15 |
--- |
60 |
L50 PUMPS WITH INDUCER
FRAME |
ALL |
MODEL L51 |
MODEL L52 |
MODEL L53 |
MODEL L54 |
MODEL L55 |
||||||||||||||
D |
C-AH |
R(P3) |
R(P30) |
W |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
S |
L(C3) |
L(C30) |
|
56C |
5 1/4 |
13 |
7 |
10 1/8 |
12 |
5 15/16 |
32 |
--- |
8 7/16 |
35 |
--- |
10 15/16 |
38 |
--- |
13 7/16 |
40 |
--- |
15 15/16 |
45 |
--- |
143T-145T |
5 1/4 |
13 |
7 |
10 1/8 |
12 |
5 15/16 |
32 |
--- |
8 7/16 |
35 |
--- |
10 15/16 |
38 |
--- |
13 7/16 |
40 |
--- |
15 15/16 |
45 |
--- |
182T-184T |
5 1/4 |
14 1/2 |
7 |
10 1/8 |
12 |
5 15/16 |
35 |
38 |
8 7/16 |
38 |
40 |
10 15/16 |
40 |
45 |
13 7/16 |
45 |
45 |
15 15/16 |
45 |
50 |
213T-215T |
5 1/4 |
17 |
7 |
10 1/8 |
12 |
5 15/16 |
--- |
45 |
8 7/16 |
--- |
45 |
10 15/16 |
--- |
50 |
13 7/16 |
--- |
50 |
15 15/16 |
--- |
50 |
254T-256T |
6 1/4 |
21 1/2 |
7 |
10 1/8 |
15 |
5 15/16 |
--- |
50 |
8 7/16 |
--- |
50 |
10 15/16 |
--- |
55 |
13 7/16 |
--- |
55 |
15 15/16 |
--- |
55 |
284TS-286TS |
7 |
23 1/2 |
7 |
10 1/8 |
15 |
5 15/16 |
--- |
50 |
8 7/16 |
--- |
55 |
10 15/16 |
--- |
55 |
13 7/16 |
--- |
60 |
15 15/16 |
--- |
60 |
All dimensions are in inches. May
vary ± 1/4 inches. Model M52 shown in Multistage Dimensions. Click here for further motor information |
Click here to return to the M50 • L50 Product Information Page.
