Model T31G Individual Curve

T31 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

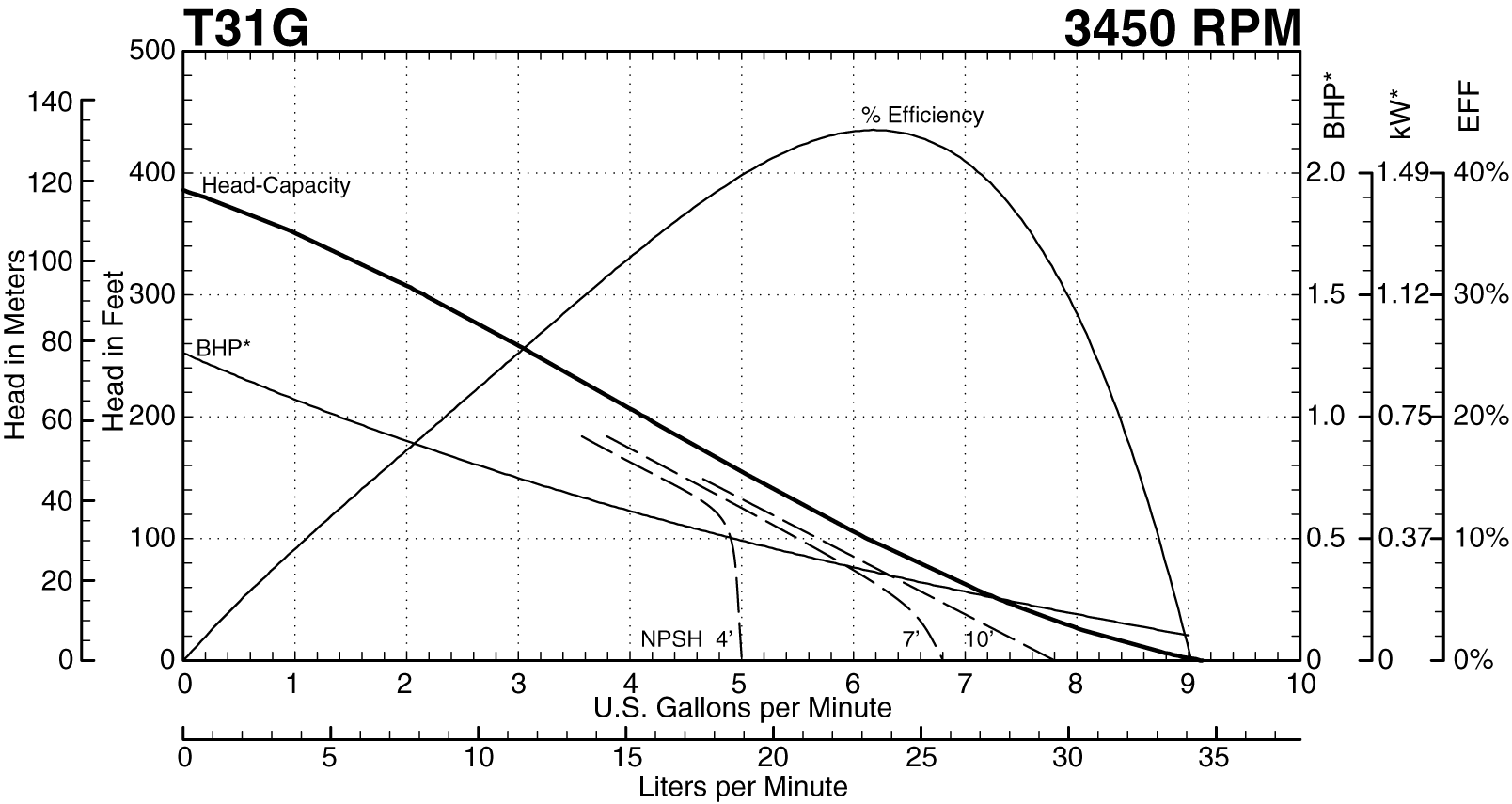

T31G 3450 RPM

See this individual curve in 3450 RPM, 60Hz Operation

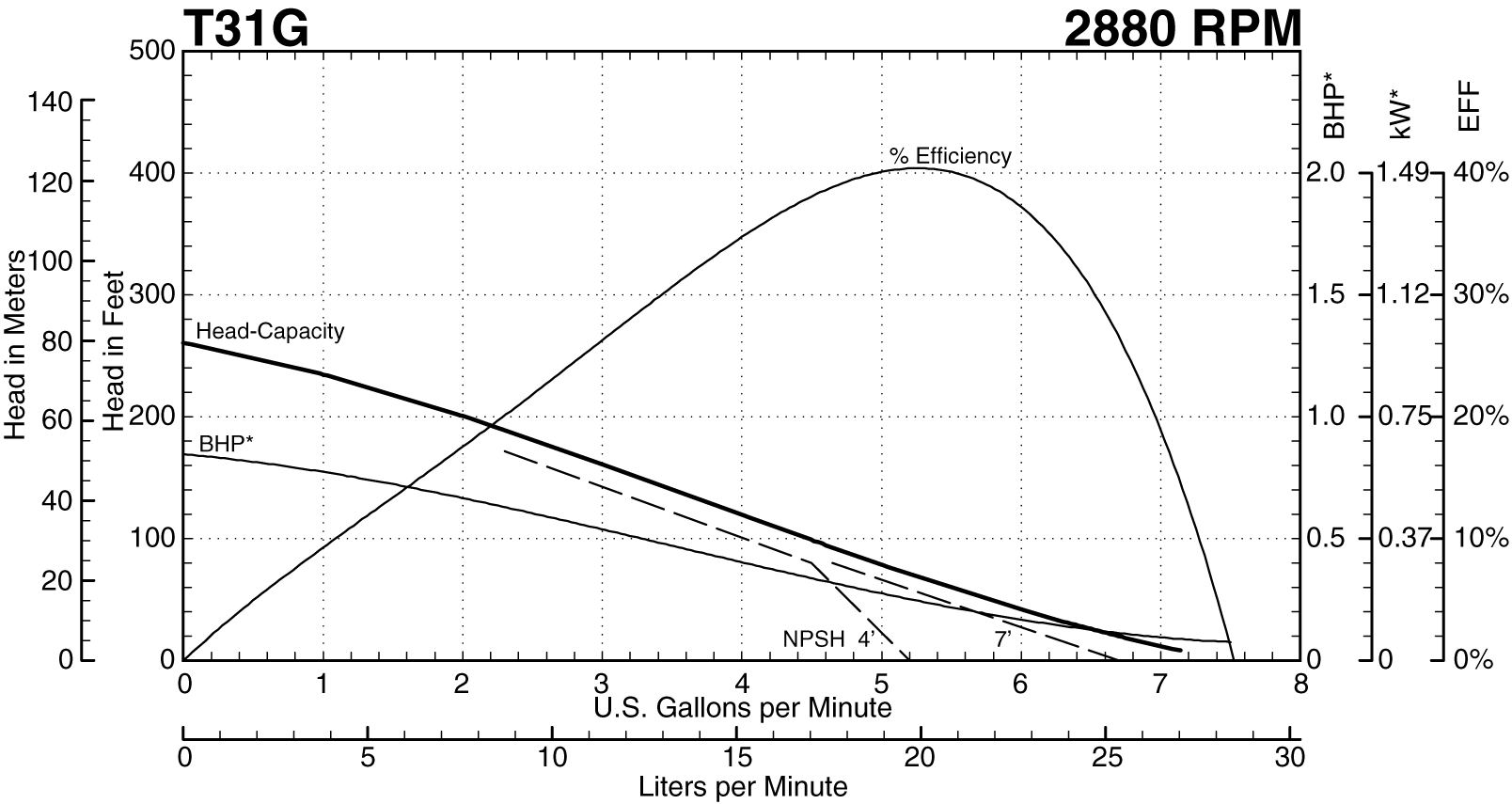

See this individual curve in 2880 RPM, 50Hz Operation

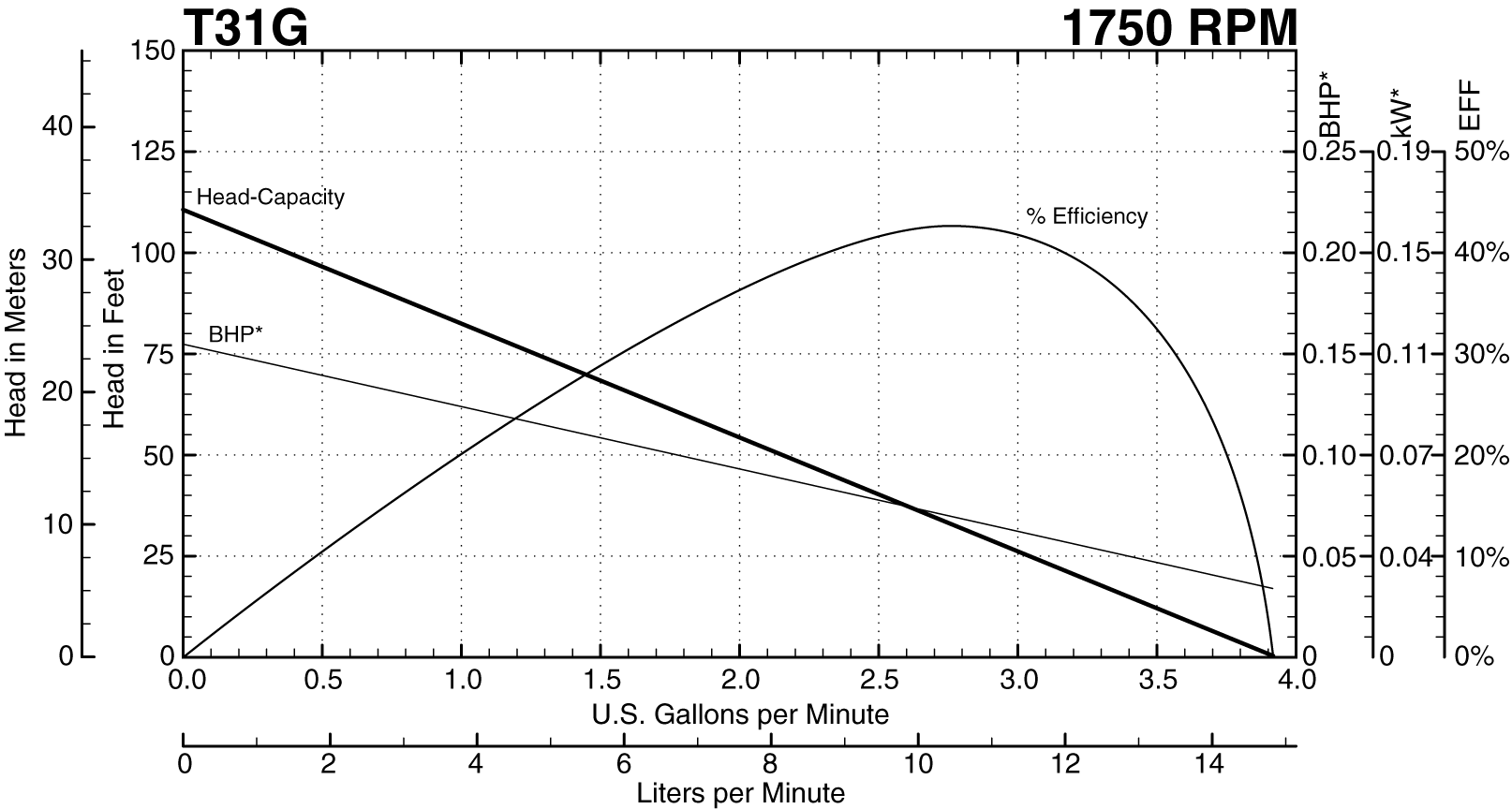

See this individual curve in 1750 RPM, 60Hz Operation

<< Prev Model

Next Model >>

Note: 1750RPM T31's require the use of a 56C Face Adapter or a bearing pedestal mount on a base.

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
