T41 • E41 Series Regenerative Turbine Pumps

T41 • E41 Product Information Page.

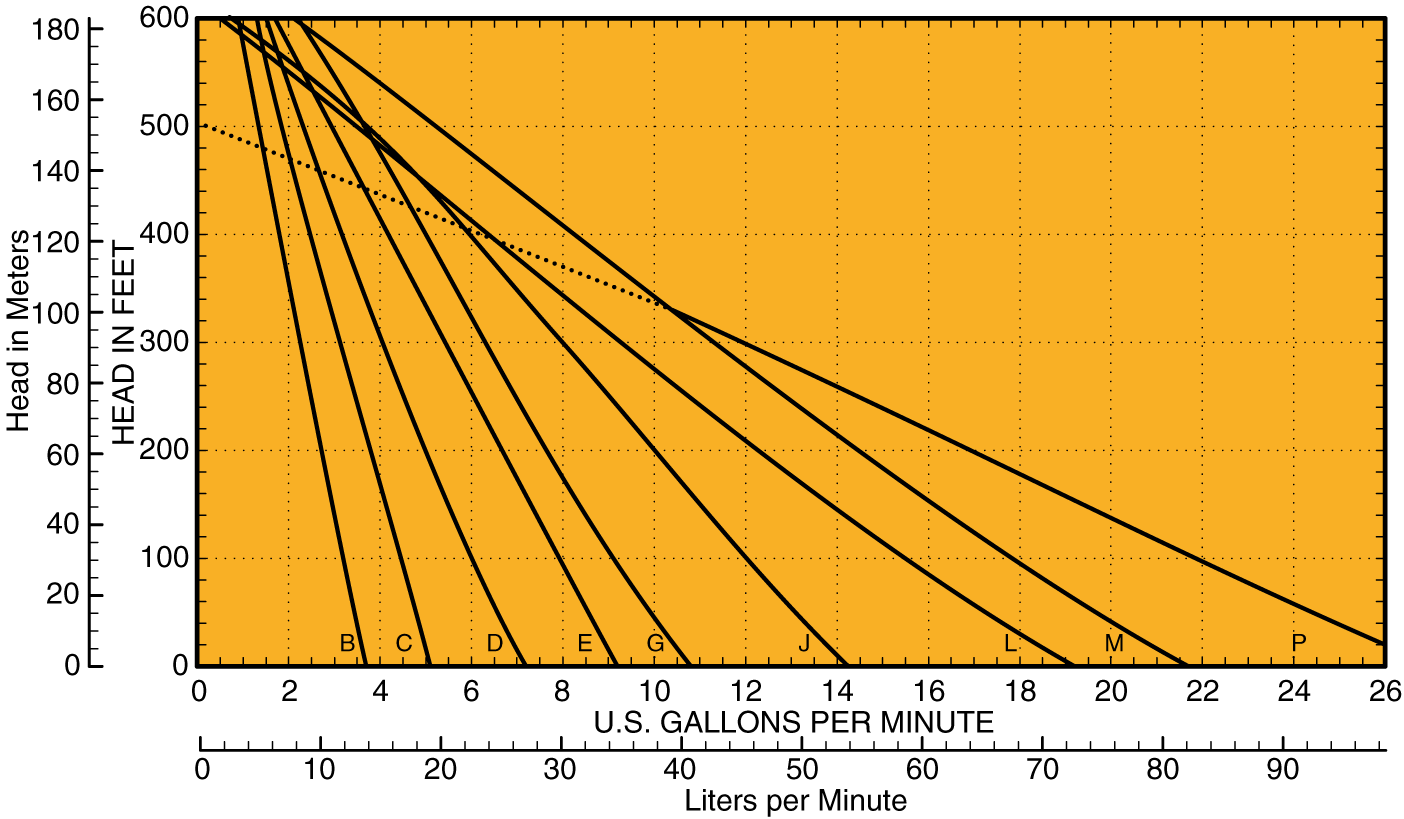

3450 Composite Curves: T/E41B thru T/E41P
Select a family curve to see an individual curve and performance.
T41 3450 Composite Curves T41P T41M T41L T41J T41G T41E T41D T41C T41B

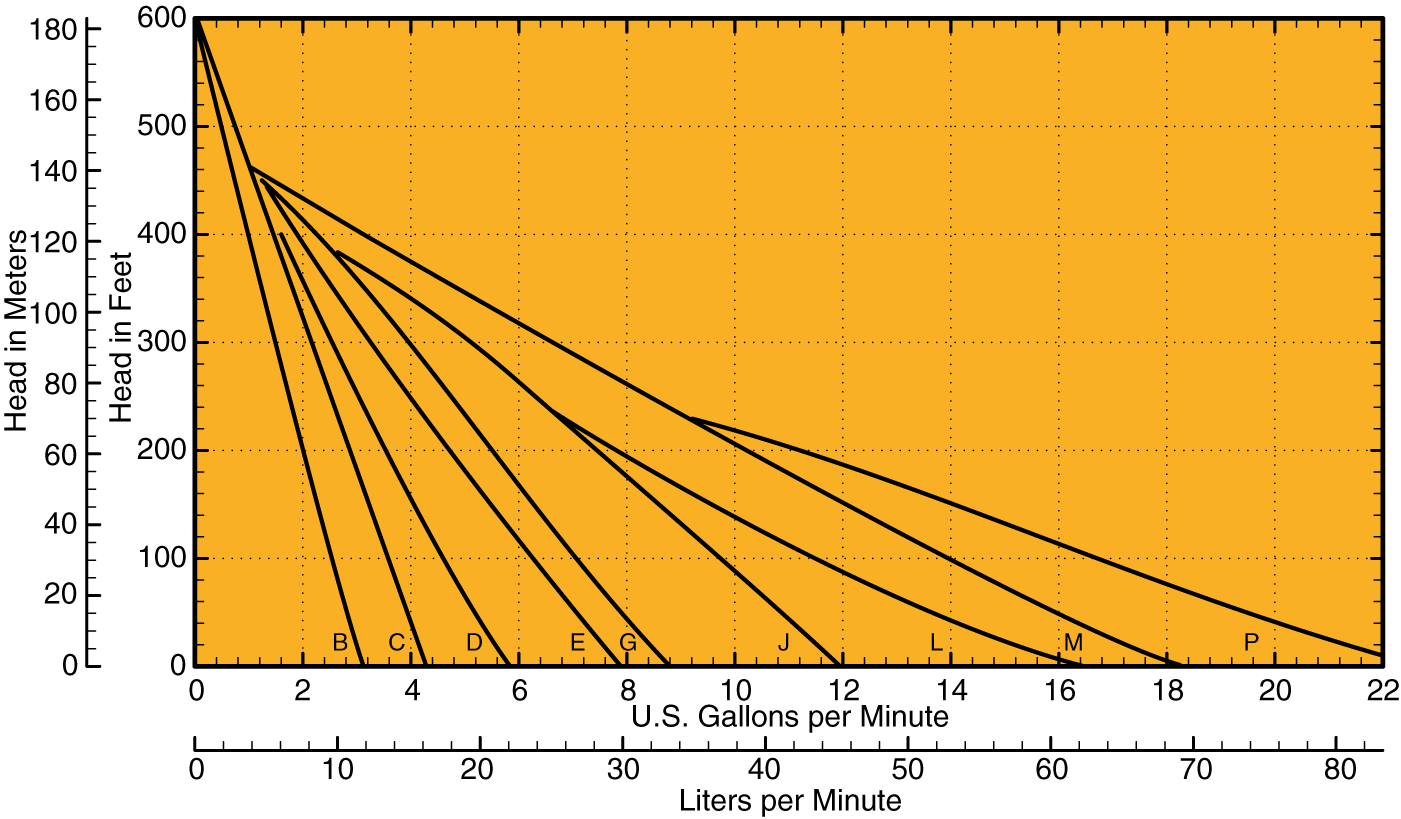

2880 Composite Curves: T/E41B thru T/E41P
Select a family curve to see an individual curve and performance.
T41 2880 Composite Curves T41B T41C T51D T41E T41G T41J T41L T41M T41P

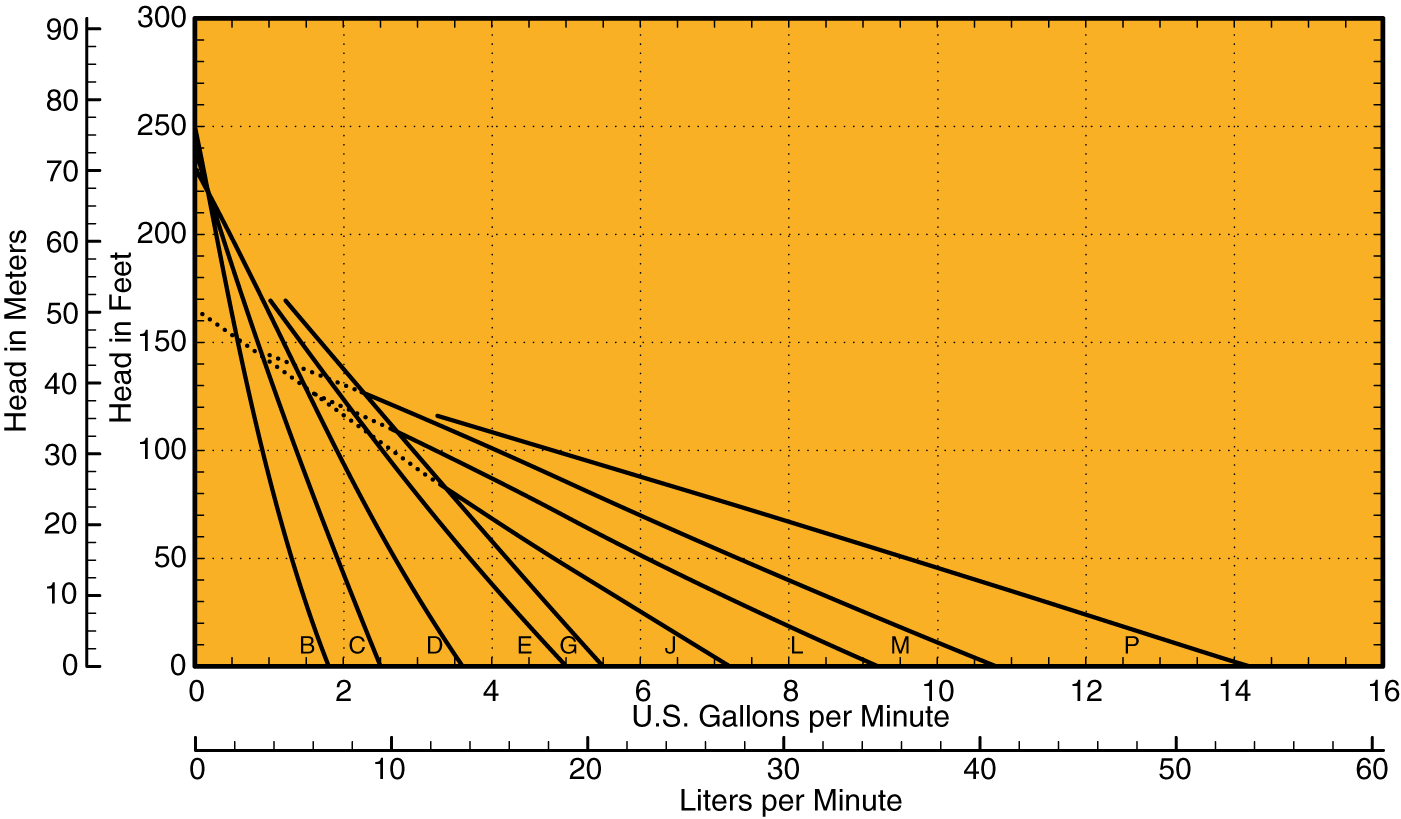

1750 Composite Curves: T/E41B thru T/E41P
Select a family curve to see an individual curve and performance.
T41B T41C T41D T41E T41G T41J T41L T41M T41P

Click here to return to the T41 • E41 Product Information Page.

Download a printable version of the T41 • E41 Catalog Pages in .pdf format.

Download a printable, metric version of the T41 • E41 Catalog Pages in .pdf format.

Download a printable version of the T41 1750 RPM Performance Curves in .pdf format.
