T41 • E41 Series Regenerative Turbine Pumps
Close Coupled

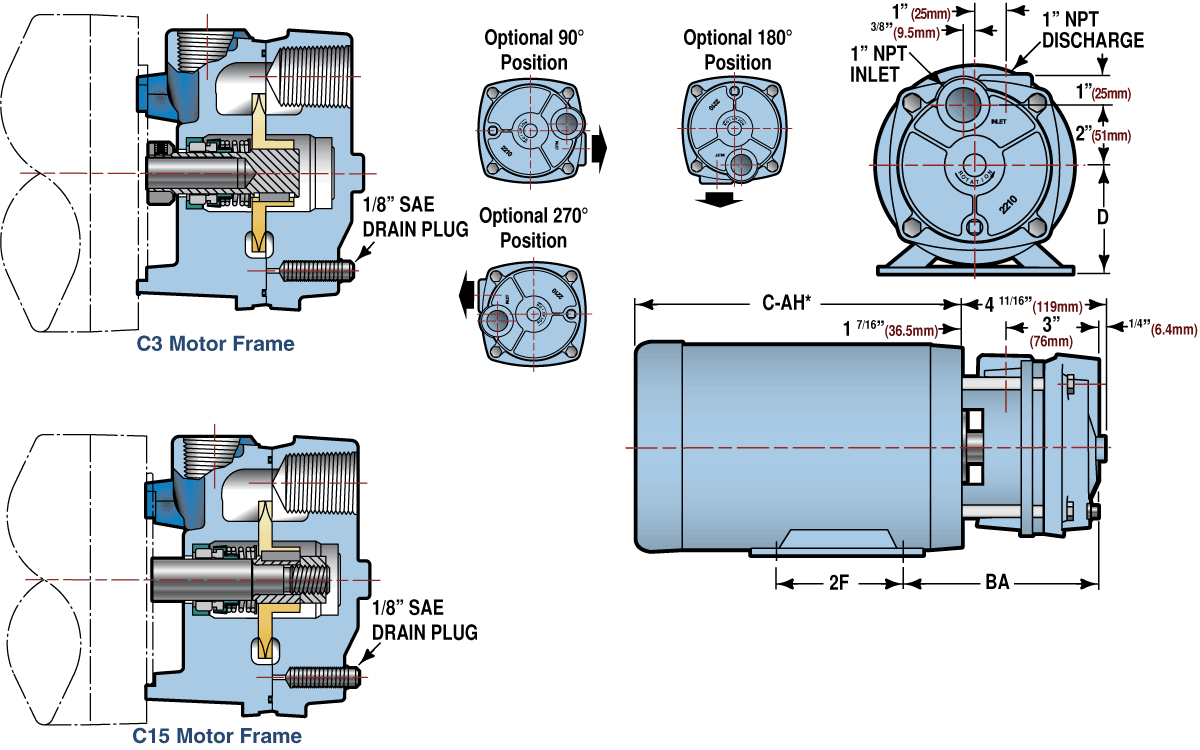

T41 - C3 & C15 Motor Frames
Zoom

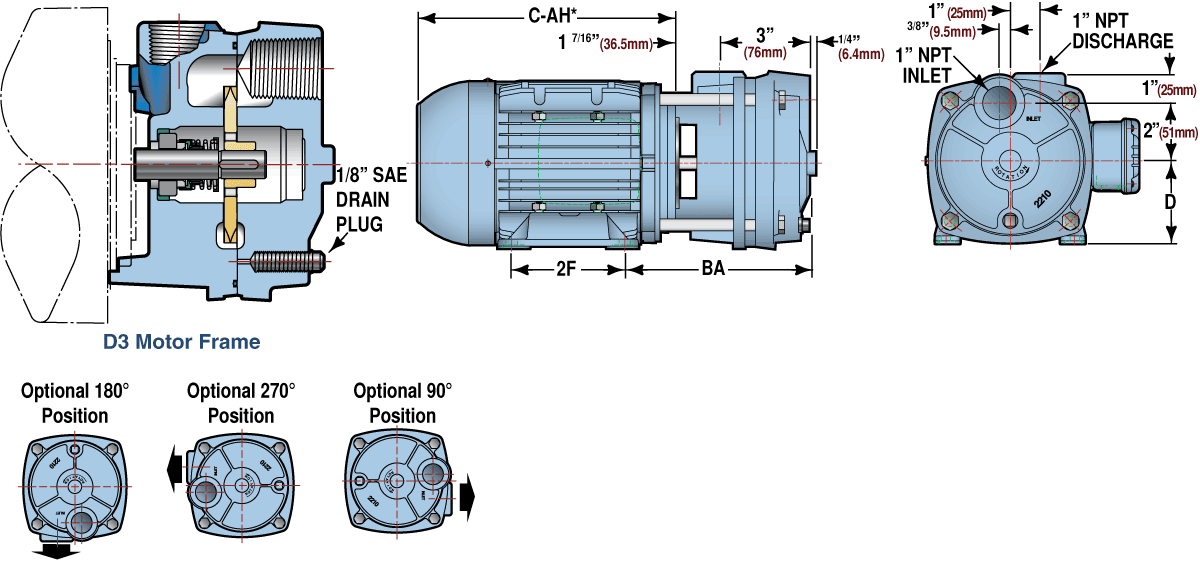

E41 - D3 Motor Frame
Zoom
| Horsepower | Frame | A | D | E | BA | 2F | |
| T41 | 1/3 ~ 3 ODP, TEFC, & EXP** | 56C | 4 7/8 124mm |
3 1/2 89mm |
2 7/16 62mm |
7 1/16 179mm |
3 79mm |
| 3 EXP | 182TCZ | 7 1/2 191mm |
4 1/2 114mm |
3 3/4 95mm |
8 203mm |
4 1/2 114mm |
|
| 5 ODP & TEFC, 7 1/2 ODP | 56Y | 4 7/8 124mm |
3 1/2 89mm |
2 7/16 62mm |
7 3/8 187mm |
3 79mm |
|
| 5 EXP, 7 1/2 TEFC | 184TCZ | 7 1/2 191mm |
4 1/2 114mm |
3 3/4 95mm |
8 203mm |
5 1/2 140mm |
|
| 7 1/2 EXP | 213TCZ | 9 7/8 251mm |
5 1/4 133mm |
4 1/4 108mm |
8 203mm |
7 178mm |
|
| E41 3-phase | 1/2 ~ 3/4 TEFC | 71 | 5 5/16 134mm |
2 13/16 71mm |
2.46 62mm |
6 1/8 156mm |
3 9/16 90mm |
| 1 ~ 1 1/2 TEFC | 80 | 6 1/8 155mm |
3 1/8 79mm |
2 7/16 62mm |
6 5/16 160mm |
3 15/16 100mm |
|
| 2 ~ 3 TEFC | 90 | 6 11/16 170mm |
3 9/16 90mm |
2 3/4 70mm |
6 9/16 176mm |
4 15/16 125mm |
|
| E41 1-phase | 1/3 ~ 2 ODP | 48 | 6 1/8 156mm |
3 79mm |
2 1/8 54mm |
7 1/16 179mm |
2 9/16 65mm |
| *C-AH Dimensions -Refer to Motor Information **Excludes 3 HP EXP |
|||||||
Pedestal Mounted

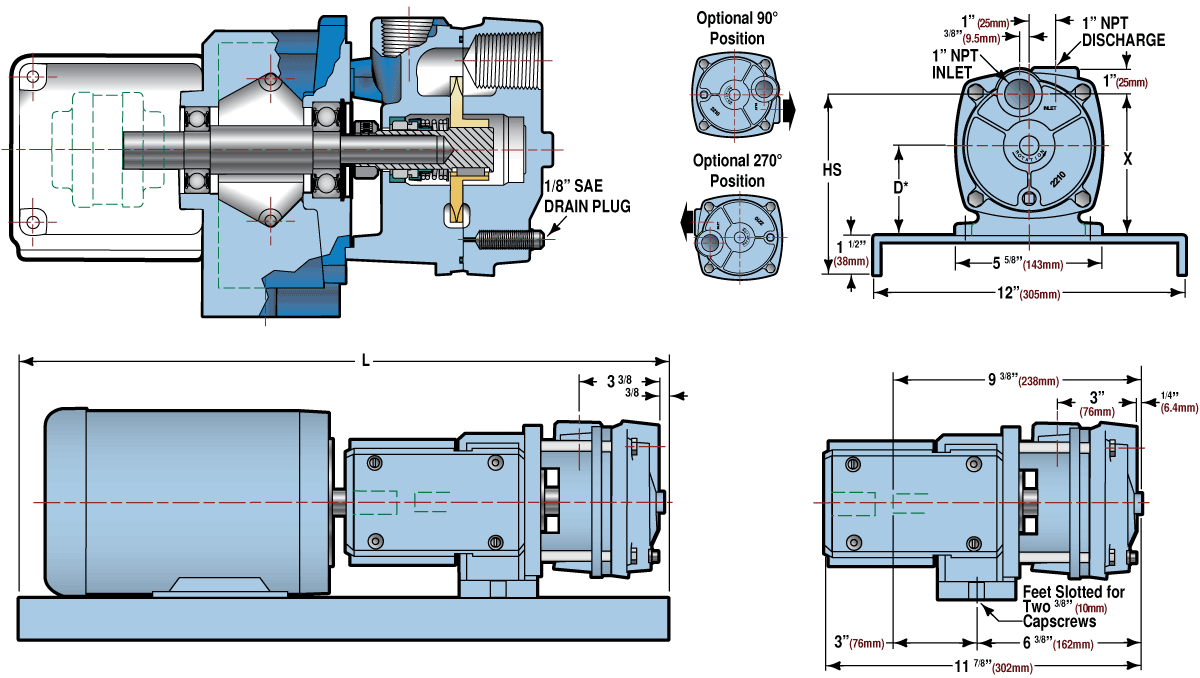

T41 - P3 Bearing Frame
Zoom

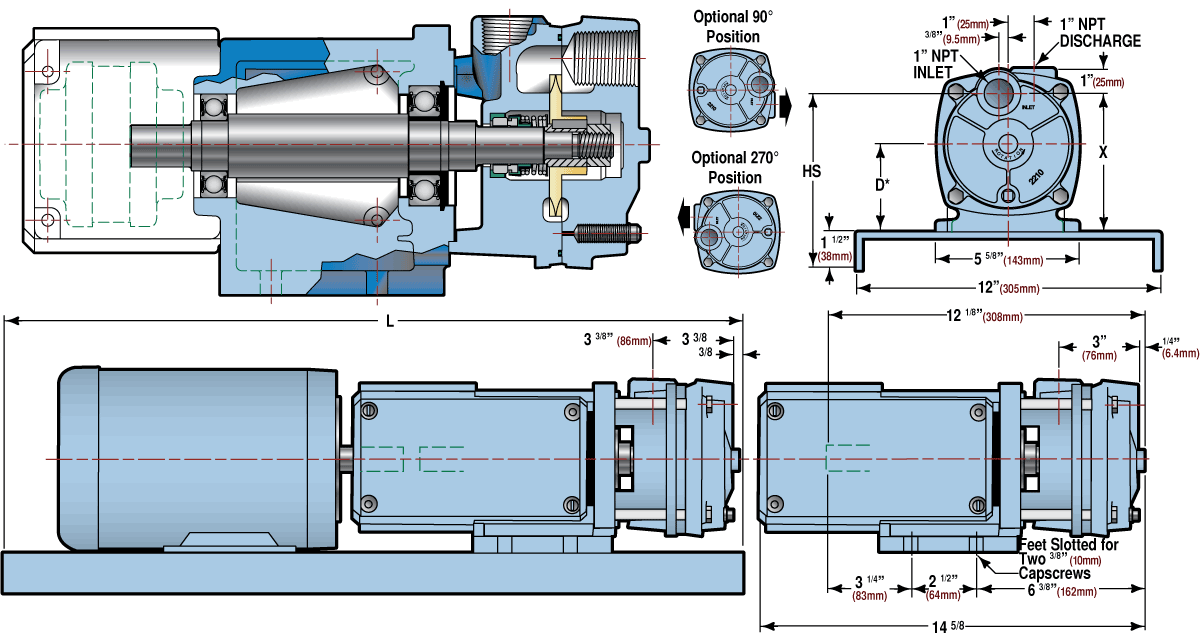

T41 - P15 Bearing Frame
Zoom
| Frame* | D | X | HS | L(P3) | L(P15) |
| 56 | 3 1/2 89mm |
5 1/2 140mm |
7 178mm |
24 610mm |
|
| 143T | 3 1/2 89mm |
5 1/2 140mm |
7 178mm |
24 610mm |
28 711mm |
| 145T | 3 1/2 89mm |
5 1/2 140mm |
7 178mm |
24 610mm |
28 711mm |
| 182T | 4 1/2 114mm |
6 1/2 165mm |
8 203mm |
26 660mm |
30 762mm |
| 184T | 4 1/2 114mm |
6 1/2 165mm |
8 203mm |
26 660mm |
30 762mm |
| 213T | 5 1/4 133mm |
7 1/4 184mm |
8 3/4 222mm |
33 838mm |
|
| 215T | 5 1/4 133mm |
7 1/4 184mm |
8 3/4 222mm |
33 838mm |
|
| Note: Dimensions in Inches(mm) Refer to Motor Support Pages for frame size and other dimensional data. |
|||||
Vertical Flange Mounted

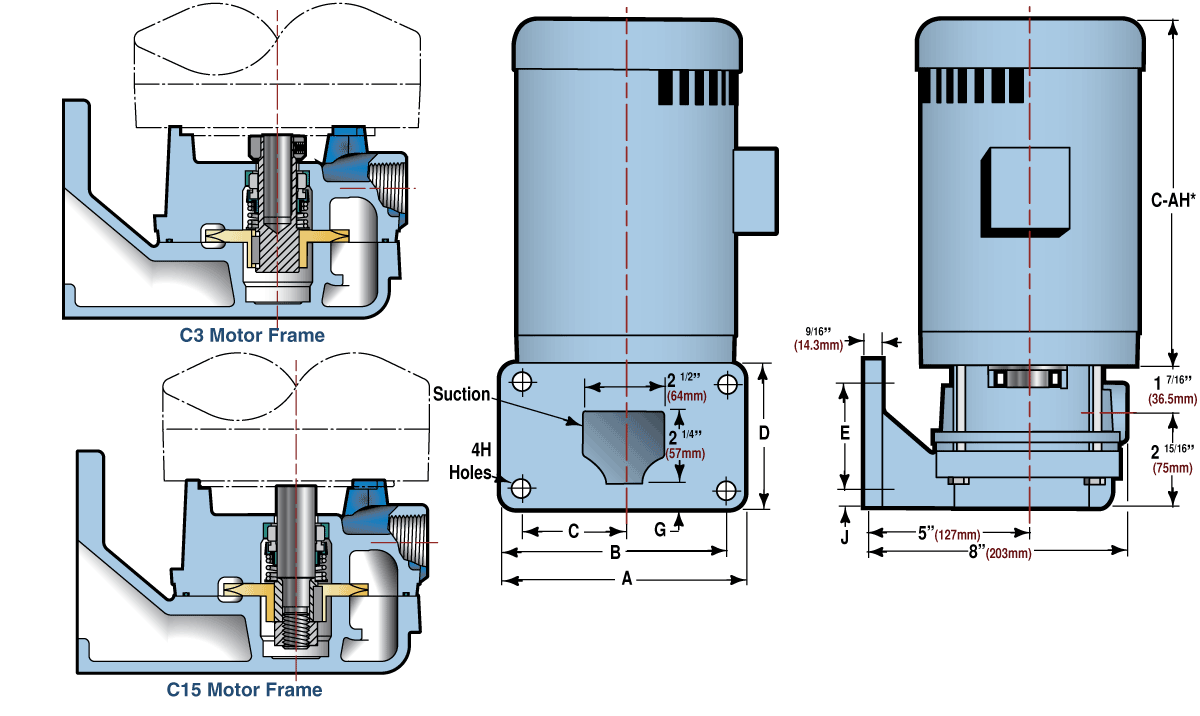

T41 - C3 & C15 Motor Frames
Zoom

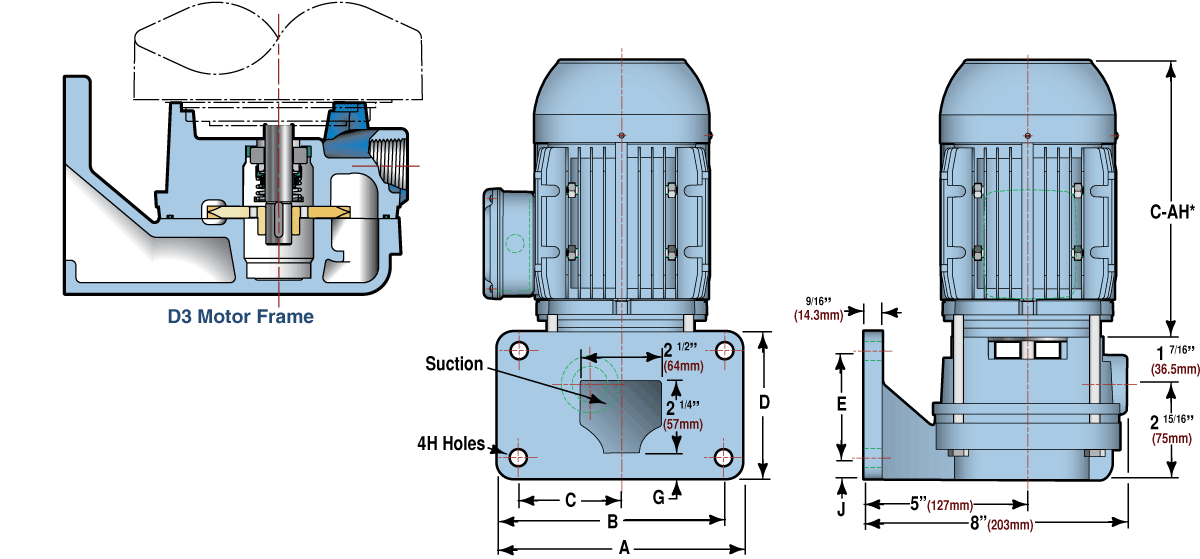

E41 - D3 Motor Frame
Zoom
| Flange Style | A | B | C | D | E | G | H | J |
| AU - Aurora (7 1/2 x 4 1/2) | 7 1/2 191mm |
6 1/4 159mm |
3 1/8 79mm |
4 1/2 114mm |
3 1/4 83mm |
3/8 10mm |
9/16 14mm |
5/8 16mm |
| DB - Dunham-Bush (Mepco) (4 1/2 x 4 1/2) | 4 1/2 114mm |
3.270 83mm |
1.635 42mm |
4 1/2 114mm |
3.270 83mm |
3/8 10mm |
1/2 13mm |
.615 16mm |
| FE - Federal (7 3/4 x 4 3/4) | 7 1/2 191mm |
6 1/4 159mm |
3 1/8 79mm |
4 1/2 114mm |
3 1/2 89mm |
3/8 10mm |
9/16 14mm |
1/2 13mm |
| PA - Paco (6 1/2 x 3 3/4) | 6 1/2 165mm |
5 1/2 140mm |
2 3/4 70mm |
3 3/4 95mm |
2 5/8 67mm |
3/8 10mm |
9/16 14mm |
5/8 16mm |
| SH - Shippensburg (Shipco) & BU - Burks (6 1/4 x 4) | 6 1/4 159mm |
5 127mm |
2 1/2 64mm |
4 102mm |
2 3/4 70mm |
3/8 10mm |
9/16 14mm |
5/8 16mm |
| SK - Skidmore (6 1/8 x 4 1/8) | 6.13 156mm |
5 127mm |
2.47 63mm |
4.13 105mm |
2.69 68mm |
3/8 10mm |
9/16 14mm |
.72 18mm |
| ST - Sterling (5 x 5) | 5 127mm |
3 3/4 95mm |
1 7/8 48mm |
5 127mm |
3 3/4 95mm |
3/8 10mm |
1/2 13mm |
5/8 16mm |
| WI - Weinman (5 x 5) | 5 127mm |
4 1/8 105mm |
2 1/16 53mm |
5 127mm |
4 1/8 105mm |
3/8 10mm |
7/16 11mm |
7/16 11mm |
| *C-AH Dimension -Refer to Motor
Support Pages for other dimensional data. All Dimensions in Inches |
||||||||
