T41 • E41 Series Regenerative Turbine Pumps

T41 • E41 Product Information Page

Parts Listings

All parts inquiries must include a complete pump description with materials of construction, motor information and special options or the serial number of the pump to insure the correct parts are quoted.

E41 • T41 Horizontal Close-coupled Standard Pump Configurations

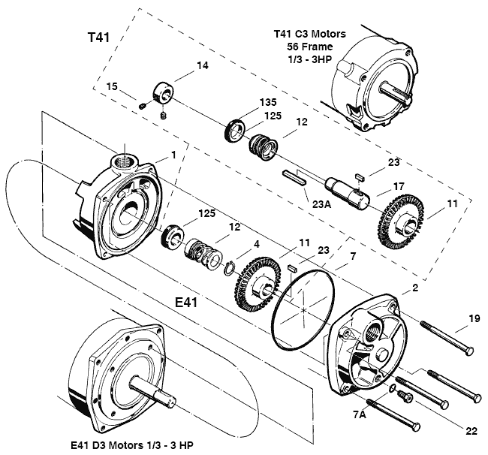

T41 Exploded View
Part Numbers subject to change without notice

Ref. No.

Part/Description

Material

Part Number

1 E41B/T41B Motor Bracket Teflon Coated Cast Iron 1-2213-0B-543
Bronze 1-2213-0B-206
316 Stainless 1-2213-0B-104
E41C/T41C Motor Bracket Teflon Coated Cast Iron 1-2214-0C-543
Bronze 1-2214-0C-206
316 Stainless 1-2214-0C-104
E41D/T41D Motor Bracket Teflon Coated Cast Iron 1-2215-0D-543
Bronze 1-2215-0D-206
316 Stainless 1-2215-0D-104
E41E/T41E Motor Bracket Teflon Coated Cast Iron 1-2216-0E-543
Bronze 1-2216-0E-206
316 Stainless 1-2216-0E-104
E41G/T41G Motor Bracket Teflon Coated Cast Iron 1-2217-0G-543
Bronze 1-2217-0G-206
316 Stainless 1-2217-0G-104
E41J/T41J Motor Bracket Teflon Coated Cast Iron 1-2218-0J-543
Bronze 1-2218-0J-206
316 Stainless 1-2218-0J-104
E41L/T41L Motor Bracket Teflon Coated Cast Iron 1-2219-0L-543
Bronze 1-2219-0L-206
316 Stainless 1-2219-0L-104
E41M/T41M Motor Bracket Teflon Coated Cast Iron 1-2201-0M-543
Bronze 1-2201-0M-206
316 Stainless 1-2201-0M-104
E41P/T41P Motor Bracket Teflon Coated Cast Iron 1-2220-0P-543
Bronze 1-2220-0P-206
316 Stainless 1-2220-0P-104
2 E41B/T41B Cover Teflon Coated Cast Iron 2-2203-0B-543
Bronze 2-2203-0B-206
316 Stainless 2-2203-0B-104
E41C/T41C Cover Teflon Coated Cast Iron 2-2204-0C-543
Bronze 2-2204-0C-206
316 Stainless 2-2204-0C-104
E41D/T41D Cover Teflon Coated Cast Iron 2-2205-0D-543
Bronze 2-2205-0D-206
316 Stainless 2-2205-0D-104
E41E/T41E Cover Teflon Coated Cast Iron 2-2206-0E-543
Bronze 2-2206-0E-206
316 Stainless 2-2206-0E-104
E41G/T41G Cover Teflon Coated Cast Iron 2-2207-0G-543
Bronze 2-2207-0G-206
316 Stainless 2-2207-0G-104
E41J/T41J Cover Teflon Coated Cast Iron 2-2208-0J-543
Bronze 2-2208-0J-206
316 Stainless 2-2208-0J-104
E41L/T41L Cover Teflon Coated Cast Iron 2-2209-0L-543
Bronze 2-2209-0L-206
316 Stainless 2-2209-0L-104
E41M/T41M Cover Teflon Coated Cast Iron 2-2202-0M-543
Bronze 2-2202-0M-206
316 Stainless 2-2202-0M-104
E41P/T41P Cover Teflon Coated Cast Iron 2-2210-0P-543
Bronze 2-2210-0P-206
316 Stainless 2-2210-0P-104
4 Snap Ring 18-8 Stainless 4-2437-01-113
7 “O” Ring/Casing Buna 7-2479-01-457
Viton 7-2479-01-494
7A “O” Ring/Drain Plug Buna 7-3970-01-457
Viton 7-3970-01-494
11 E41B Impeller Bronze 11-4611-0B-207
W88 Stainless - ASTM A494 11-4611-0B-280
Nickel/Silver Alloy - C97600 11-4611-0B-233
T41B Impeller Bronze 11-2223-0B-207
Carbon Steel 11-2223-0B-057
W88 Stainless - ASTM A494 11-2223-0B-280
E41C Impeller Bronze 11-4612-0C-207
W88 Stainless - ASTM A494 11-4612-0C-280
Nickel/Silver Alloy - C97600 11-4612-0C-233
T41C Impeller Bronze 11-2224-0C-207
Carbon Steel 11-2224-0C-057
W88 Stainless - ASTM A494 11-2224-0C-280
E41D Impeller Bronze 11-4613-0D-207
W88 Stainless - ASTM A494 11-4613-0D-280
Nickel/Silver Alloy - C97600 11-4613-0D-233
T41D Impeller Bronze 11-2225-0D-207
Carbon Steel 11-2225-0D-057
W88 Stainless - ASTM A494 11-2225-0D-280
E41E Impeller Bronze 11-4614-0E-207
W88 Stainless - ASTM A494 11-4614-0E-280
Nickel/Silver Alloy - C97600 11-4614-0E-233
T41E Impeller Bronze 11-2226-0E-207
Carbon Steel 11-2226-0E-057
W88 Stainless - ASTM A494 11-2226-0E-280
E41G Impeller Bronze 11-4615-0G-207
W88 Stainless - ASTM A494 11-4615-0G-280
Nickel/Silver Alloy - C97600 11-4615-0G-233
T41G Impeller Bronze 11-2227-0G-207
Carbon Steel 11-2227-0G-057
W88 Stainless - ASTM A494 11-2227-0G-280
E41J Impeller Bronze 11-4418-0J-207
W88 Stainless - ASTM A494 11-4418-0J-280
Nickel/Silver Alloy - C97600 11-4418-0J-233
T41J Impeller Bronze 11-2228-0J-207
Carbon Steel 11-2228-0J-057
W88 Stainless - ASTM A494 11-2228-0J-280
E41L & E41M Impeller Bronze 11-4616-LM-207
W88 Stainless - ASTM A494 11-4616-LM-280
Nickel/Silver Alloy - C97600 11-4616-LM-233
T41L & T41M Impeller Bronze 11-2229-LM-207
Carbon Steel 11-2229-LM-057
W88 Stainless - ASTM A494 11-2229-LM-280
E41P Impeller Bronze 11-4617-0P-207
W88 Stainless - ASTM A494 11-4617-0P-280
Nickel/Silver Alloy - C97600 11-4617-0P-233
T41P Impeller Bronze 11-2231-0P-207
Carbon Steel 11-2231-0P-057
W88 Stainless - ASTM A494 11-2231-0P-280
12 E41 Seal Rotating Element Buna/Carbon/316 SS Call factory for further assistance.
Viton/Carbon/316 SS
T41 Seal Rotating Element Buna/Carbon/316 SS
Viton/Carbon/316 SS
125 E41 Seal Stationary Seat Ceramic 125-4299-02-592
Ni-resist 125-4299-02-046
T41 Seal Stationary Seat Ceramic 125-1282-01-592
Ni-resist 125-1282-01-046
135 E41 Seal Seat Cup Buna 135-1179-02-457
Viton 135-1179-02-494
T41 Seal Seat Cup Buna 135-1179-01-457
Viton 135-1179-01-494
14 Lock Collar/Sleeve Steel 14-1049-01-080
15 Setscrew/Lock Collar 316 Stainless 15-1168-01-104
17 T41 Shaft Sleeve Bronze 17-1390-01-181
316 Stainless 17-1390-01-104
19 Thru Bolt 304 Stainless 19-1997-01-080
22 Plug/Drain - 1/8 SAE 304 Stainless 22-4265-01-101
23 Key/Impeller Drive 316 Stainless 23-1022-01-104
23A Key/Sleeve Drive Steel 23-1487-01-080
