Model T41J Individual Curve

T41 • E41 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

T41J 3450 RPM

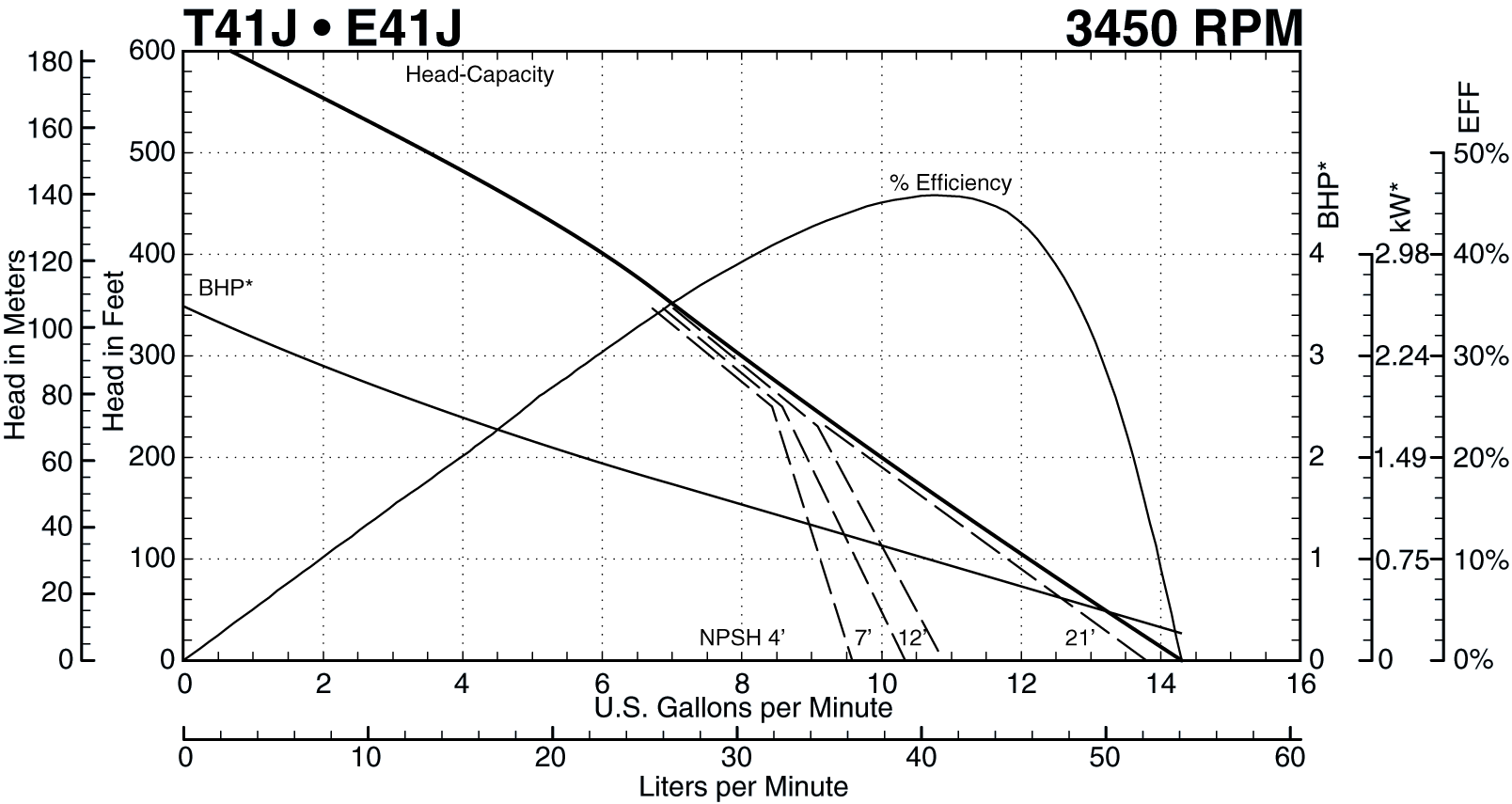

See this individual curve in 3450 RPM, 60Hz Operation

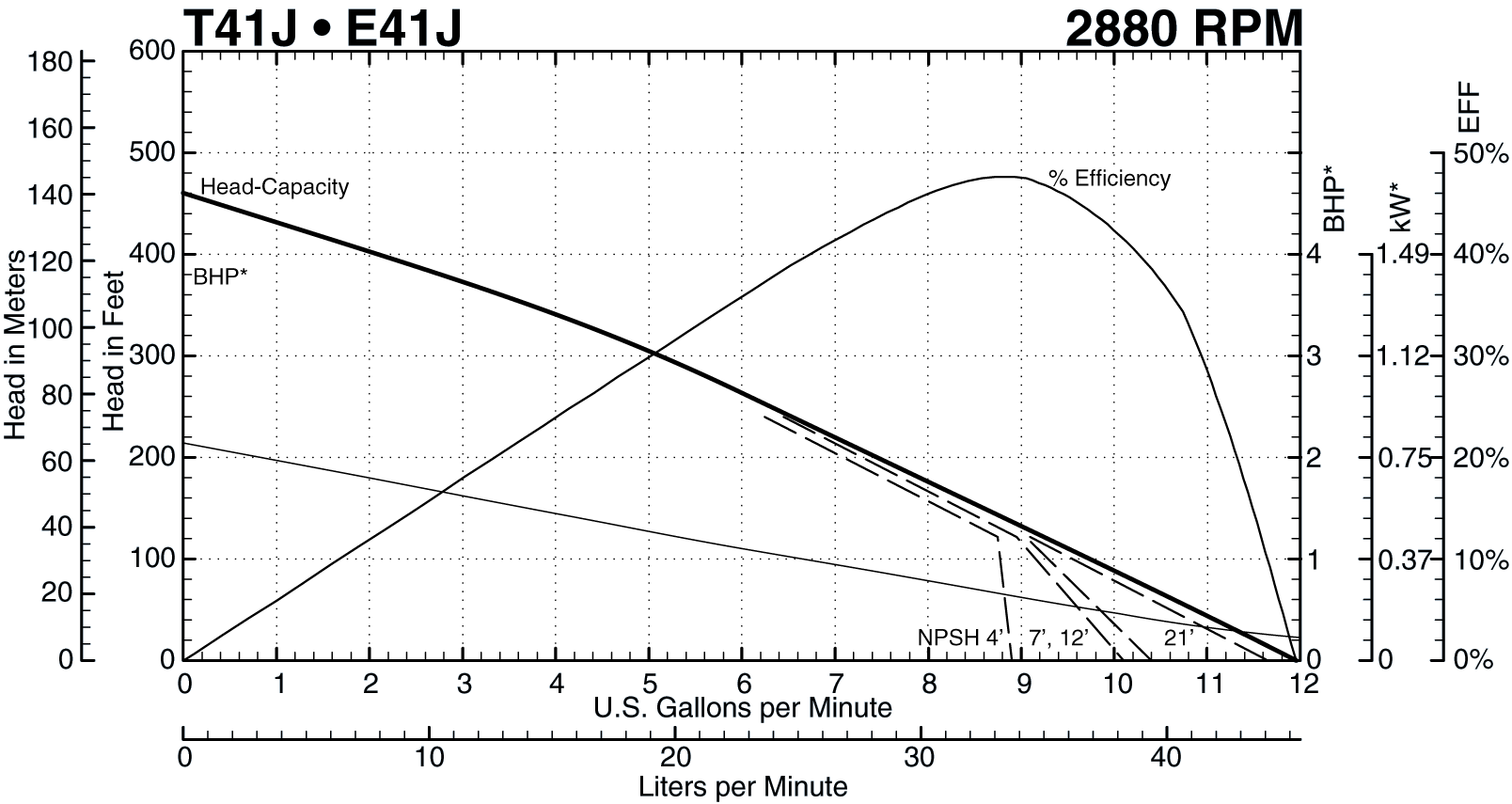

See this individual curve in 2880 RPM, 50Hz Operation

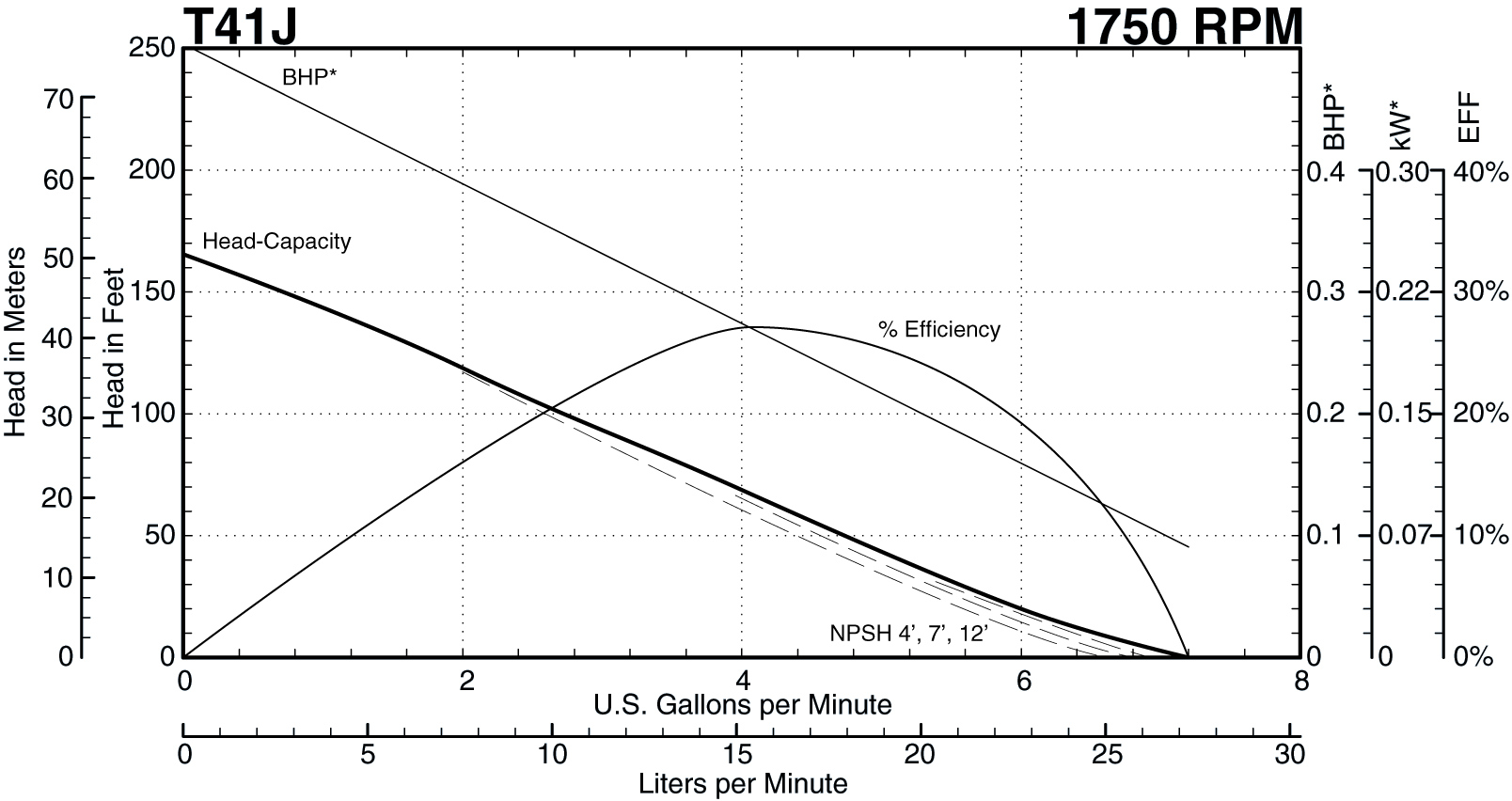

See this individual curve in 1750 RPM, 60Hz Operation
<< Prev Model

Next Model >>

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
