T51 • E51 Series Regenerative Turbine Pumps

T51 • E51 Product Information Page.

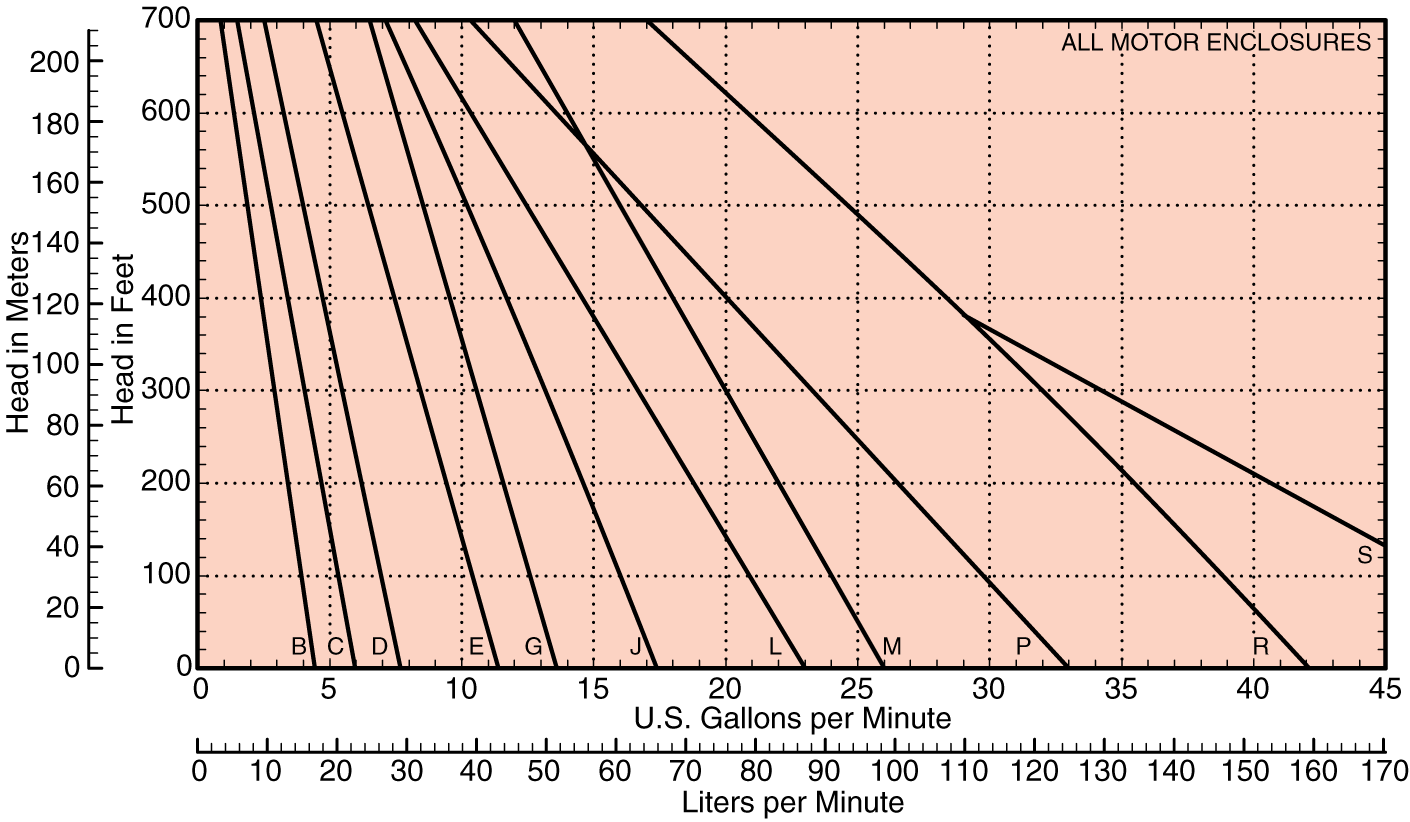

3450 Composite Curves: E/T51B thru E/T51S
Select a family curve to see an individual curve and performance.
T51S T51R T51P T51M T51L T51J T51G T51E T51D T51C T51B

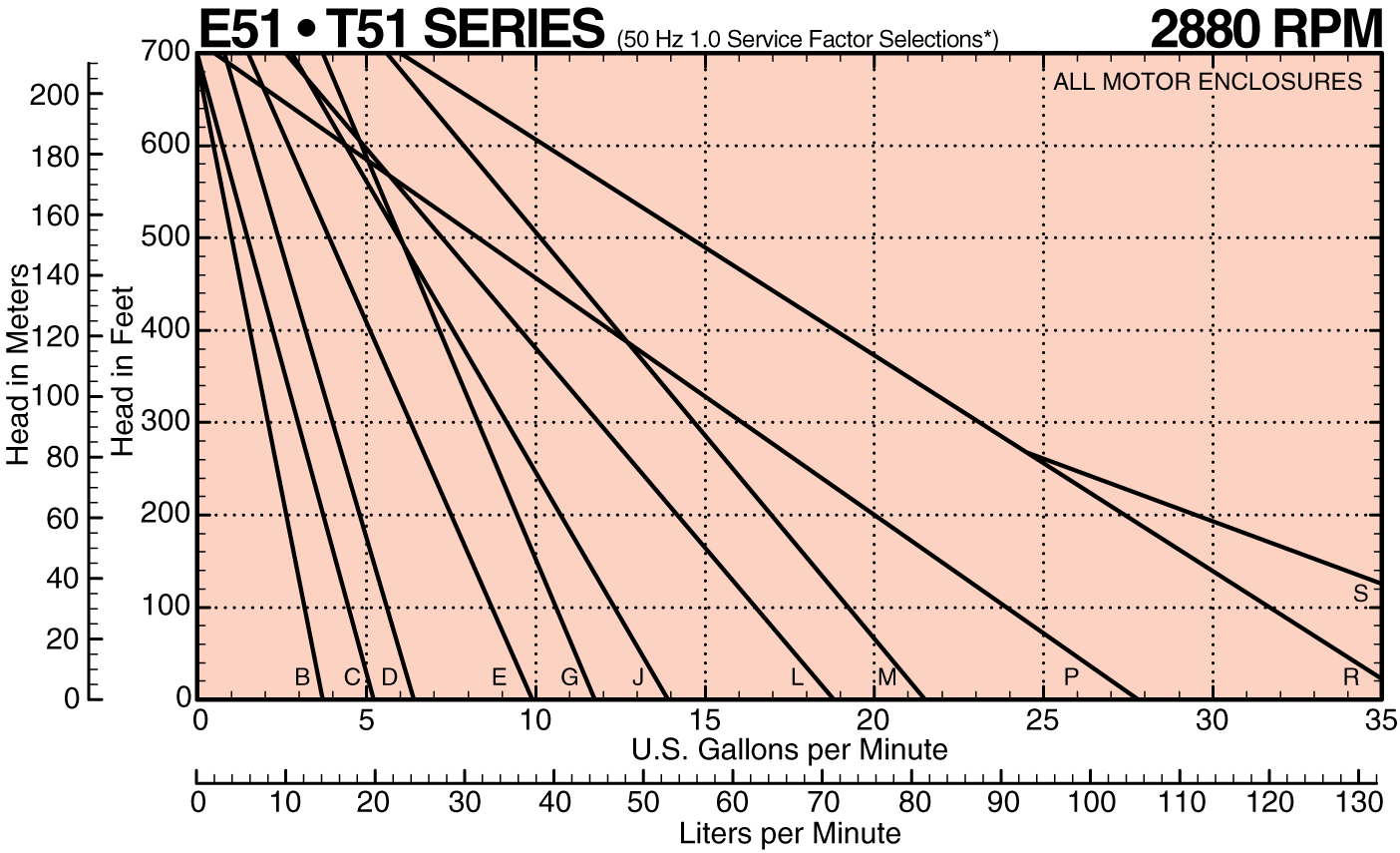

2880 Composite Curves: E/T51B thru E/T51S
Select a family curve to see an individual curve and performance.
T51S T51R T51P T51M T51L T51J T51G T51E T51D T51C T51B

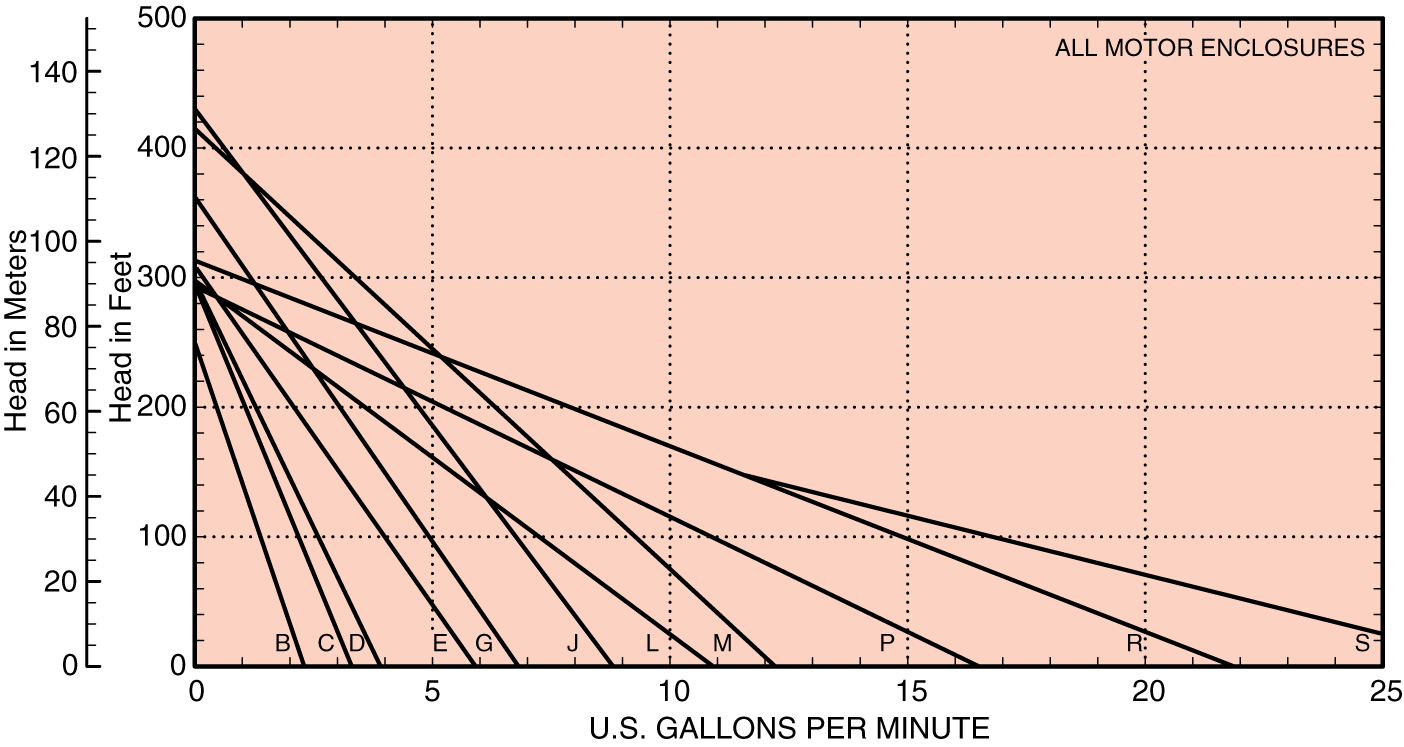

1750 Composite Curves: E/T51B thru E/T51S
Select a family curve to see an individual curve and performance.
T51S T51R T51P T51M T51L T51J T51G T51E T51D T51C T51B

Click here to return to the T51 • E51 Product Information Page.

Download a printable version of the T51 • E51 Catalog Pages in .pdf format.

Download a printable version of the T51 1750 RPM Performance Curves in .pdf format.
