Optional Features

Construction Materials

Bronze fitted, all iron, all bronze and 316 stainless steel are available as stock materials. Consult the factory for special materials.

Bearing Pedestals

All T51 models can be pedestal mounted for flexible drive.

Vertical Flange Mount

All sizes are available as vertical mount units, with eight standard flange types available.

Optional Gas Injection Port and Top Inlet

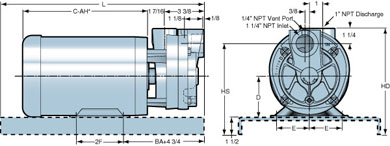

T51 Vent Port Dimensions

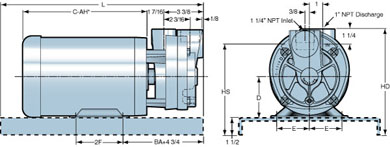

T51 Top Suction Dimensions
56C Thru 215TC Motor Frames
Frame	D	BA + 4 3/4	2F	E	H	HS	HD	L
56C	3 1/2	7 3/8	3	2 7/16	5/16 - 18	7 3/4	9	18
143 TC	3 1/2	7 5/8	4	2 3/4	5/16 - 18	7 3/4	9	18
145 TC	3 1/2	7 5/8	5	2 3/4	5/16 - 18	7 3/4	9	18
182 TC	4 1/2	8 3/8	4 1/2	3 3/4	3/8 - 16	8 3/4	10	20
184 TC	4 1/2	8 3/8	5 1/2	3 3/4	3/8 - 16	8 3/4	10	20
213 TC	5 1/4	9 1/8	5 1/2	4 1/4	3/8 - 16	9 1/2	10 3/4	22
215 TC	5 1/4	9 1/8	7	4 1/4	3/8 - 16	9 1/2	10 3/4	22
NOTES All dimensions in inches. May vary ± ¼ inches. Not for construction purposes unless certified. *See motor dimensions for “C-AH” dimension (Varies depending on motor enclosure).

Internal Flush Line

Internal passageway flushes mechanical seal seats. When used with the optional silicon carbide seal seat, allows operation in water up to 250°F.

Inlet Strainer

A 90° suction strainer with a replaceable screen is available for installation in the suction line to help prevent foreign materials from entering the pump. A cap at the bottom of the strainer can be easily and quickly removed for screen cleaning or replacement.

Sealless Canned Version

For difficult to seal applications.
