Model T51M • E51M Individual Curve

T51 • E51 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

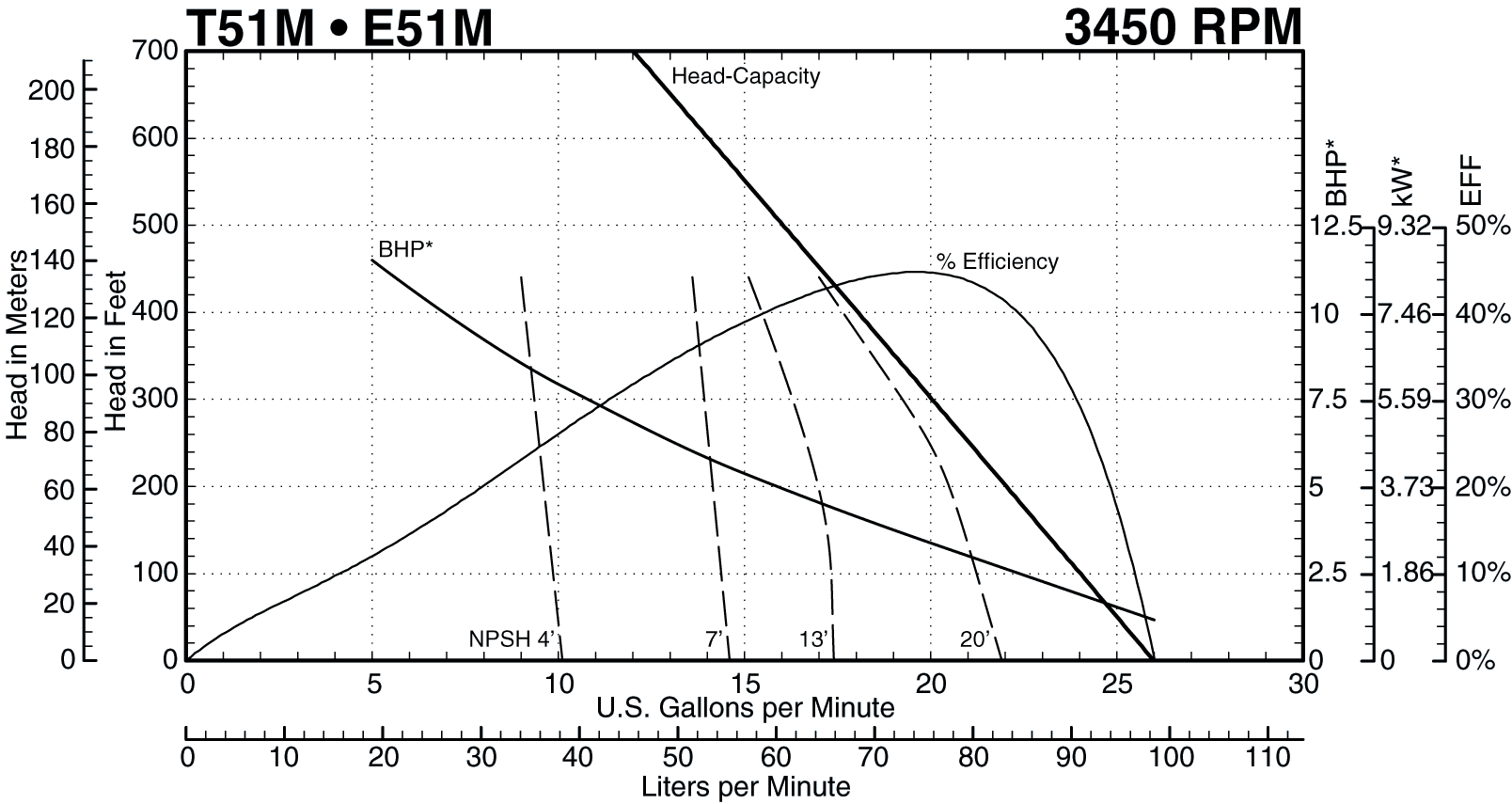

T51M 3450 Performance Curve

T51M 3450 Performance Curve

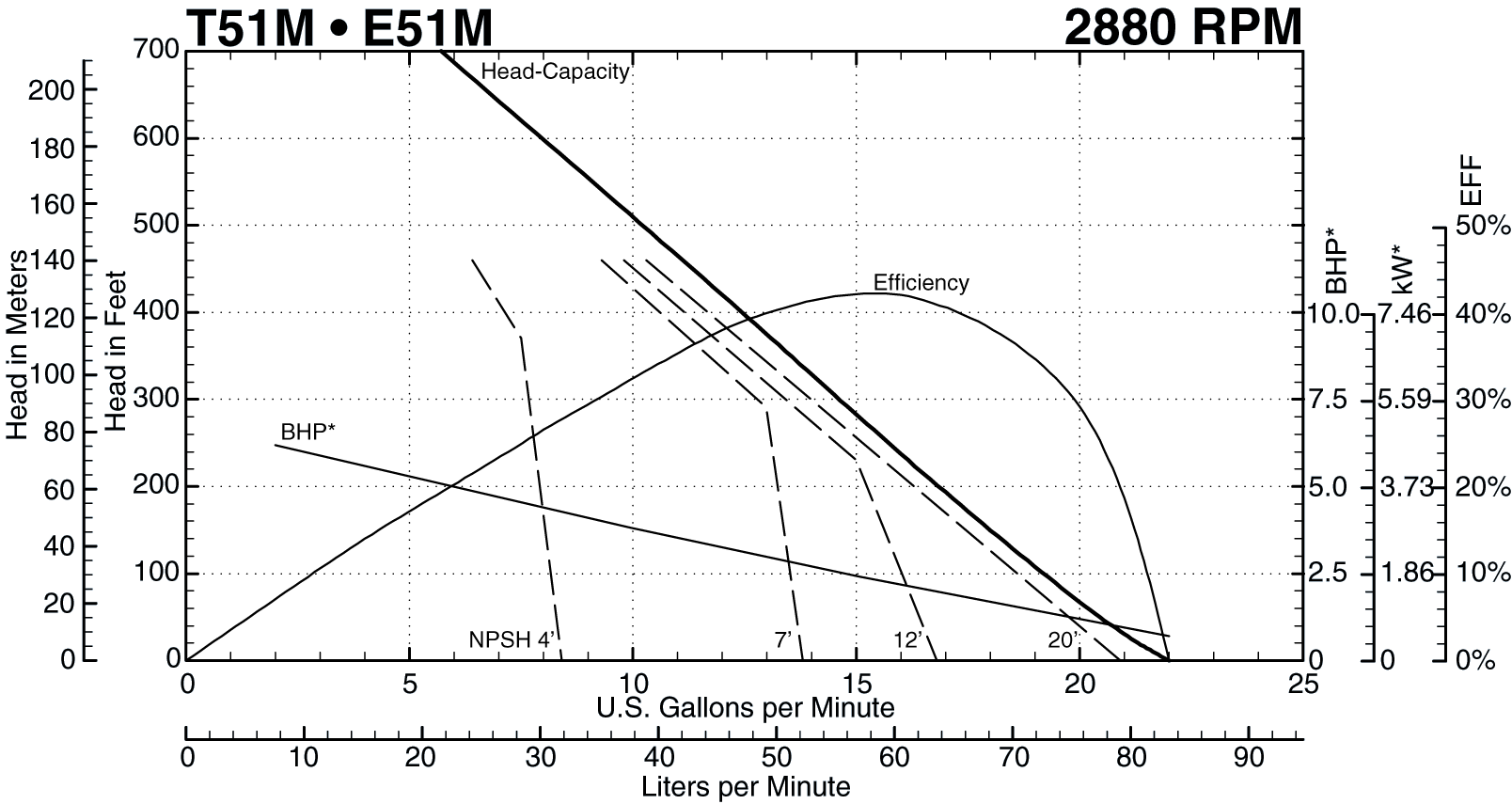

T51M 2880 Performance Curve

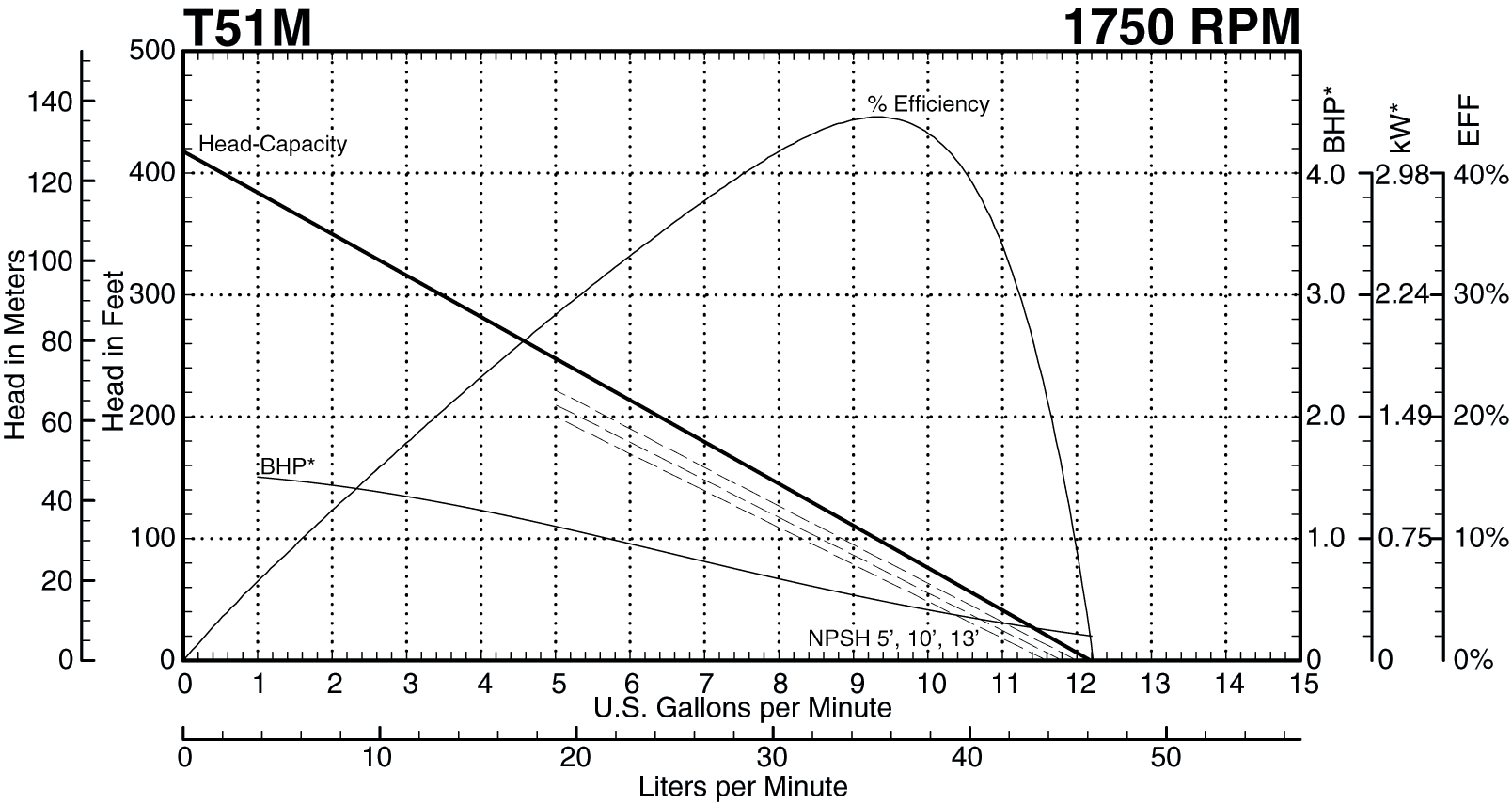

T51M 1750 Performance Curve
<< Prev Model

Next Model >>

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
