80/42 Frame D3 Motors

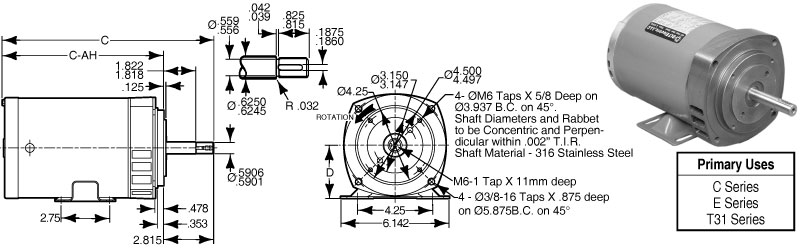

1 Phase - 2 POLE 3450 / 2880 RPM
 |
|||||||||||
| HORSE |
ENCL. |
FRAME |
MTH P/N |
WT. |
DIMENSIONS IN INCHES |
HZ |
SERVICE |
VOLTAGE |

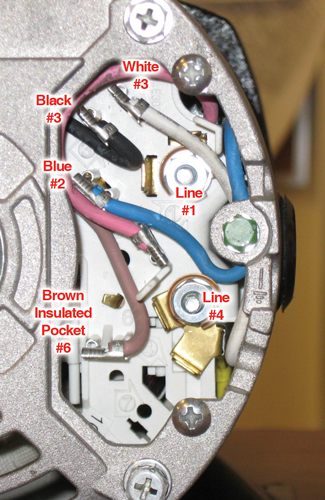

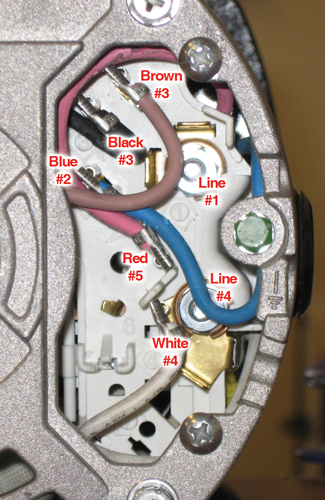

WIRING |
||
| D |
C |
C-AH |
|||||||||
| 1/3 |
ODP |
48 |
DLC-5000-03-ODP |
27 |
3.0 |
11.94 |
9.13 |
60 |
1.75 |
115/208-230 |
|
| 50 |
1.0 |
110/220 |
|||||||||
| 1/2 |
ODP |
48 |
DLC-5000-05-ODP |
27 |
3.0 |
11.94 |
9.13 |
60 |
1.60 |
115/208-230 |
|
| 50 |
1.0 |
110/220 |
|||||||||
| 3/4 |
ODP |
48 |
DLC-5000-07-ODP |
31 |
3.0 |
12.44 |
9.63 |
60 |
1.5 |
115/208-230 |
|
| 50 |
1.0 |
110/220 |
|||||||||
| 1 |
ODP |
48 |
DLC-5000-01-ODP |
31 |
3.0 |
12.44 |
9.63 |
60 |
1.4 |
115/208-230 |
|
| 50 |
1.0 |
110/220 |
|||||||||
| 1 1/2 |
ODP |
48 |
BLC-5000-51-ODP |
27.5 |
3.5 |
14.15 |
11.33 |
60 |
1.30 |
115/208-230 |
|
| 50 |
1.00 |
110/220 |
|||||||||
| 2 |
ODP |
56 |
BLC-5000-02-ODP |
24 |
3.5 |
13.65 |
10.84 |
60 |
1.20 |
115/208-230 |
|
| 50 |
1.00 |
110/220 |
|||||||||
