80/42 Frame D3 Motors

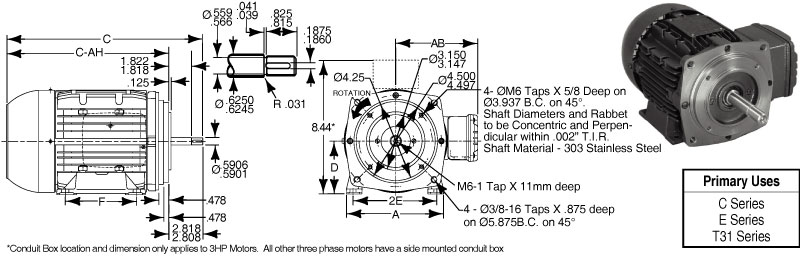

3 Phase - 2 POLE 3450 / 2880 RPM
 |
||||||||||||||
| HORSE |
ENCL. |
FRAME |
MTH P/N |
WT. |
DIMENSIONS IN INCHES |
HZ |
SERVICE |
VOLTAGE |
WIRING |
|||||
| D |
E |
AB |
F |
C |
C-AH |
|||||||||
1/2 |
TEFC |
71MM |
WEC-4524-05-TEF |
18 |
2.8 |
2.21 |
5.0 |
3.54 |
11.65 |
8.84 |
60 |
1.60 |
208-230/460 |
|
| 50 |
1.50 |
190/380-415 |
||||||||||||
3/4 |
TEFC |
71MM |
WEC-4524-07-TEF |
20 |
2.8 |
2.21 |
5.0 |
3.54 |
11.65 |
8.84 |
60 |
1.50 |
208-230/460 |
|
| 50 |
1.50 |
190/380-415 |
||||||||||||
1 |
TEFC |
71MM |
WEC-5101-01-TEF |
20 |
2.8 |
2.21 |
5.0 |
3.54 |
11.65 |
8.84 |
60 |
1.40 |
208-230/460 |
|
| 50 |
1.20 |
190/380-415 |
||||||||||||
1 1/2 |
TEFC |
80MM |
WEC-5101-51-TEF |
29 |
3.15 |
2.46 |
5.35 |
3.94 |
12.24 |
9.43 |
60 |
1.30 |
208-230/460 |
|
| 50 |
1.15 |
190/380-415 |
||||||||||||
2 |
TEFC |
90MM |
WEC-5101-02-TEF |
42 |
3.54 |
2.76 |
6.18 |
4.92 |
14.13 |
11.31 |
60 |
1.0 |
208 |
|
| 60 |
1.20 |
230/460 |
||||||||||||
| 50 |
1.15 |
190/380-415 |
||||||||||||
3 |
TEFC |
90MM |
WEC-5101-03-TEF |
48 |
3.54 |
2.76 |
6.18 |
4.92 |
14.13 |
11.31 |
60 |
1.15 |
208-230/460 |
|
| 50 |
1.15 |
190/380-415 |
||||||||||||
