MTH Pumps 051 to T51 Conversion Guide

Back to Cross Reference

051 Performance Curves - 60Hz / 3450RPM

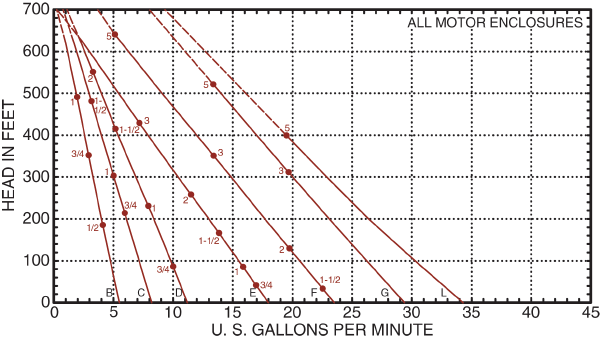

051 Composite Curves


T51 Performance Curves - 60Hz / 3450RPM

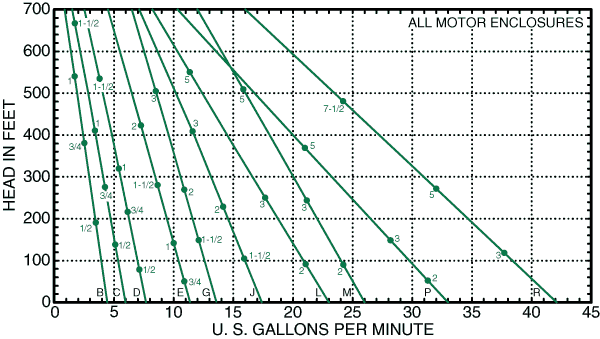

T51 Composite Curves

051 to T51 Quick conversion chart

(Please consult factory before making final selection)

Cross-reference at 60Hz / 3450RPM

051 Model

051 HP

T51 Model

T51 HP

051B

1/2 HP

T51B

1/2 HP

3/4 HP

T51B

3/4 HP

1 HP

T51B

1 HP



051C

3/4 HP

T51D

3/4 HP

1 HP

T51D

1 HP

1 1/2 HP

T51C

1 1/2 HP



051D

3/4 HP

T51E

3/4 HP

1 HP

T51E

1 1/2 HP

1 1/2 HP

T51D

1 1/2 HP

2 HP

T51D

2 HP



051E

3/4 HP

T51J

1 1/2 HP

1 HP

T51J

1 1/2 HP

1 1/2 HP

T51J

2 HP

2 HP

T51G

2 HP

3 HP

T51E

3 HP



051F

1 1/2 HP

T51L

1 1/2 HP

2 HP

T51L

3 HP

3 HP

T51J

3 HP

5 HP

T51J

5 HP



051G

3 HP

T51M

5 HP

5 HP

T51M

5 HP



051H

5 HP

T51P

5 HP


Dimensional Information

Please note that 051 models are configured with top suction (1") and front discharge (1"); whereas, T51 models are front suction (1 1/4") and top discharge (1").

Please consult factory for more dimensional information.
