Burks Pumps to MTH Pumps Replacement Cross-reference Chart

Back to Cross Reference

MTH Pumps provides no guarantee as to the accuracy of competitor information listed herein.

Burks Model
MTH Model

Exact Fit Offset Suction Strainers for the CT and CS Pumps

Corrosion Resistant Construction

The MTH Offset Suction Strainer has an all Stainless Steel Construction to resist rust and corrosion under the harshest of conditions. Stainless steel is used throughout its construction. Gaskets are high temperature EPDM Rubber for a long lasting seal.

Eliminates Pipe Union

Utilizes built in compression fitting to eliminate the need for a pipe union reducing plumbing costs and creating a simplied assembly using less parts.

Easy Replacement

The offset suction strainer allows the CTMTH and CSMTH pumps to adapt to OEM equipment for equivalent BurksTM models.

Low Fluid Resistance

Greater internal volume and ample strainer screen area reduces flow resistance and th potentail for NPSH problems.

Easy Clean-out Access

Made for quick removal of the screen for easy clean-out. One of the most important procedures in good boiler feed maintenance.

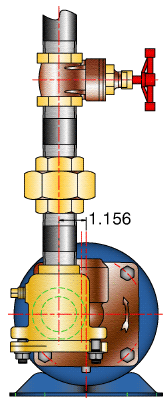

Typical Burcks Feedset Setup
Standard Burks™ Strainer Mounting

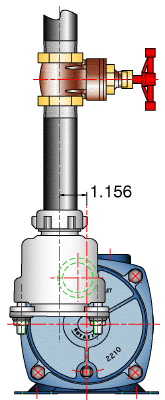

MTH Offset Strainer Setup.
CTMTH with Offset Suction Strainer adapts easily to same mounting location
Single Phase
A3CR6M T31E 1/3 HP 1 PHASE 3500RPM ODP
3CR6M T31E 1/3 HP 1 PHASE 3500RPM ODP
3CT5M T41C 1/3 HP 1 PHASE 3500RPM ODP
3CT6M T41D 1/3 HP 1 PHASE 3500RPM ODP
5CT5M T41C 1/2 HP 1 PHASE 3500RPM ODP
5CT6M T41D 1/2 HP 1 PHASE 3500RPM ODP
5CT7M T41E 1/2 HP 1 PHASE 3500RPM ODP
5CT8M T41G 1/2 HP 1 PHASE 3500RPM ODP
7CT6M T41D 3/4 HP 1 PHASE 3500RPM ODP
7CT7M T41E 3/4 HP 1 PHASE 3500RPM ODP
7CT8M T41G 3/4 HP 1 PHASE 3500RPM ODP
10CS5M T51E 1 HP 1 PHASE 3500RPM ODP
10CS6M T51G 1 HP 1 PHASE 3500RPM ODP
15CS5M T51E 1.5 HP 1 PHASE 3500RPM ODP
15CS6M T51G 1.5 HP 1 PHASE 3500RPM ODP
15CS7M T51J 1.5 HP 1 PHASE 3500RPM ODP
20CS6M T51G 2 HP 1 PHASE 3500RPM ODP
20CS7M T51J 2 HP 1 PHASE 3500RPM ODP
20CS8M T51M 2 HP 1 PHASE 3500RPM ODP
Three Phase
33CT5M T41C 1/3 HP 3 PHASE 3500RPM ODP
33CT6M T41D 1/3 HP 3 PHASE 3500RPM ODP
35CT5M T41C 1/2 HP 3 PHASE 3500RPM ODP
35CT6M T41D 1/2 HP 3 PHASE 3500RPM ODP
35CT7M T41E 1/2 HP 3 PHASE 3500RPM ODP
37CT6M T41D 3/4 HP 3 PHASE 3500RPM ODP
37CT7M T41E 3/4 HP 3 PHASE 3500RPM ODP
37CT8M T41G 3/4 HP 3 PHASE 3500RPM ODP
310CS5M T51E 1 HP 3 PHASE 3500RPM ODP
310CS6M T51G 1 HP 3 PHASE 3500RPM ODP
315CS5M T51E 1.5 HP 3 PHASE 3500RPM ODP
315CS6M T51G 1.5 HP 3 PHASE 3500RPM ODP
315CS7M T51J 1.5 HP 3 PHASE 3500RPM ODP
320CS6M T51G 2 HP 3 PHASE 3500RPM ODP
320CS7M T51J 2 HP 3 PHASE 3500RPM ODP
320CS8M T51M 2 HP 3 PHASE 3500RPM ODP
330CS7M T51J 3 HP 3 PHASE 3500RPM ODP
330CS8M T51M 3 HP 3 PHASE 3500RPM ODP
330CS9M T51P 3 HP 3 PHASE 3500RPM ODP
350CS8M T51M 5 HP 3 PHASE 3500RPM ODP
350CS9M T51P 5 HP 3 PHASE 3500RPM ODP
7182 1" Strainer 92-7080-01-095
7183 1 1/4" Strainer 92-7085-01-095
  • T31 Series standard material is all bronze construction. Stainless Steel construction is also available.
  • T41 & T51 Series standard materials are bronze fitted (Teflon coated iron cover & motorbracket with bronze impeller). All bronze or stainless steel construction is also available.
