MTH Pumps, C51BC - 1 HP Individual Curve

C51BC - 1 HP Individual Curve

C41 • C51 • C61 Product Information Page

1 X ¾ X 5

(Inlet X Discharge X Impeller Diameter in Inches)

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

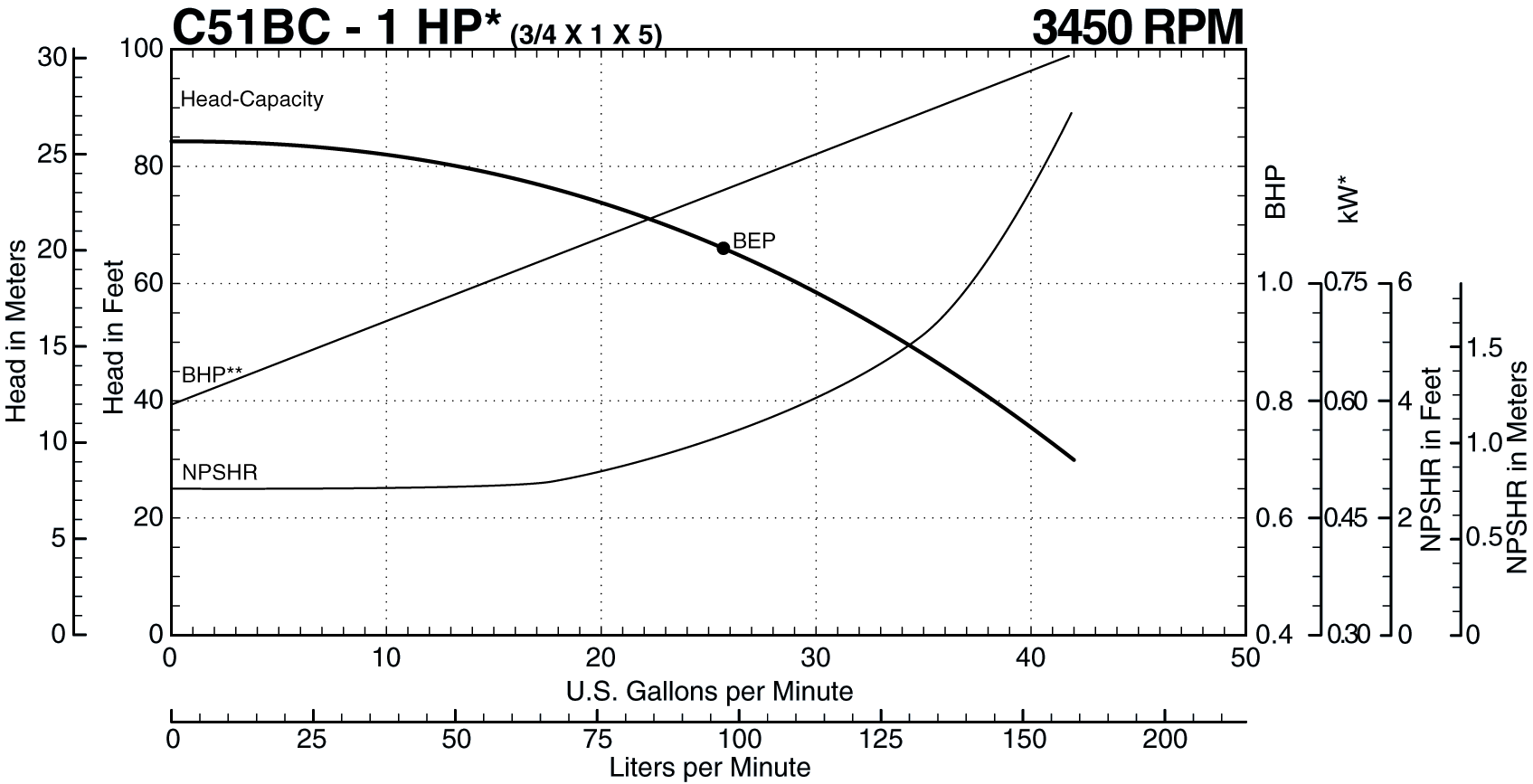

See this individual curve in 3450 RPM, 60Hz Operation

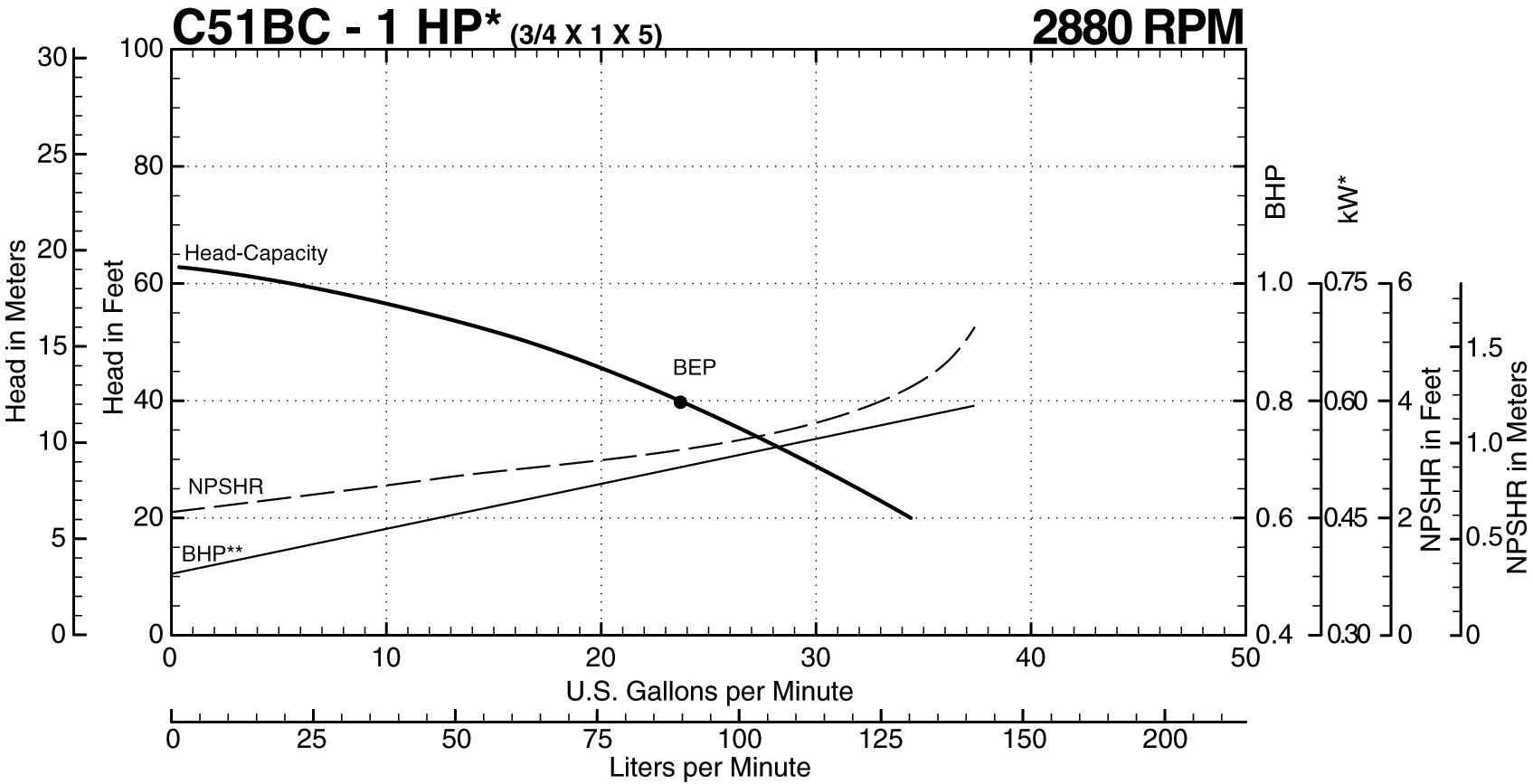

See this individual curve in 2880 RPM, 50Hz Operation

<< Prev Model

Next Model >>

Notes:
*Standard 1 horsepower motors have 1.4 service factor, allowing them to operate at the full range of the pump curve. When selecting a C Series pump mounted on a bearing pedestal or 56C Face adapter, motor selection necessitates adherence to a 1.0 service factor, often resulting in a larger motor than the standard close-coupled configuration. See the 80/42 Frame D3 (Dual Faced) Style Motors section of the Standard Motor Guide and/or Motor Price Sheets for more information.
**BHP data valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
