Model T41B • E41B Individual Curve

T41 • E41 Product Information Page

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

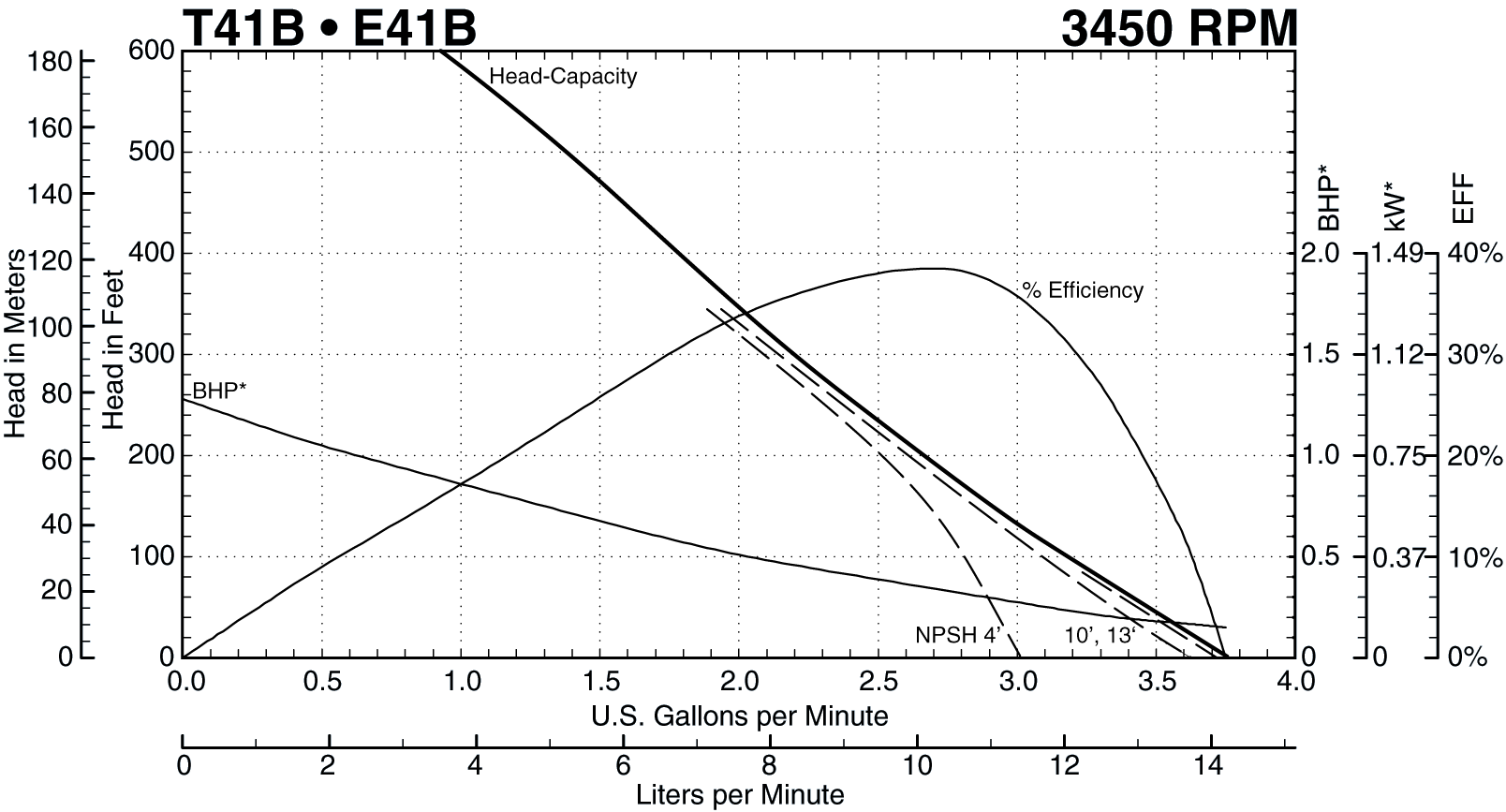

T41B Performance Curve at 3450 RPM

T41B Performance Curve at 3450 RPM Thumbnail
T41B Performance Curve at 3450 RPM Thumbnail
T41B Performance Curve at 3450 RPM Thumbnail
<<See the T31 Series for Smaller Head-Capacities

Next Model >>

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.
