MTH Pumps, T41C • E41C Individual Curve

Model T41C • E41C Individual Curve

Click and drag your mouse on the curve. Lines are automatically drawn as either horizontal or vertical. To clear the canvas, click the "Clear Lines" button below the curve.

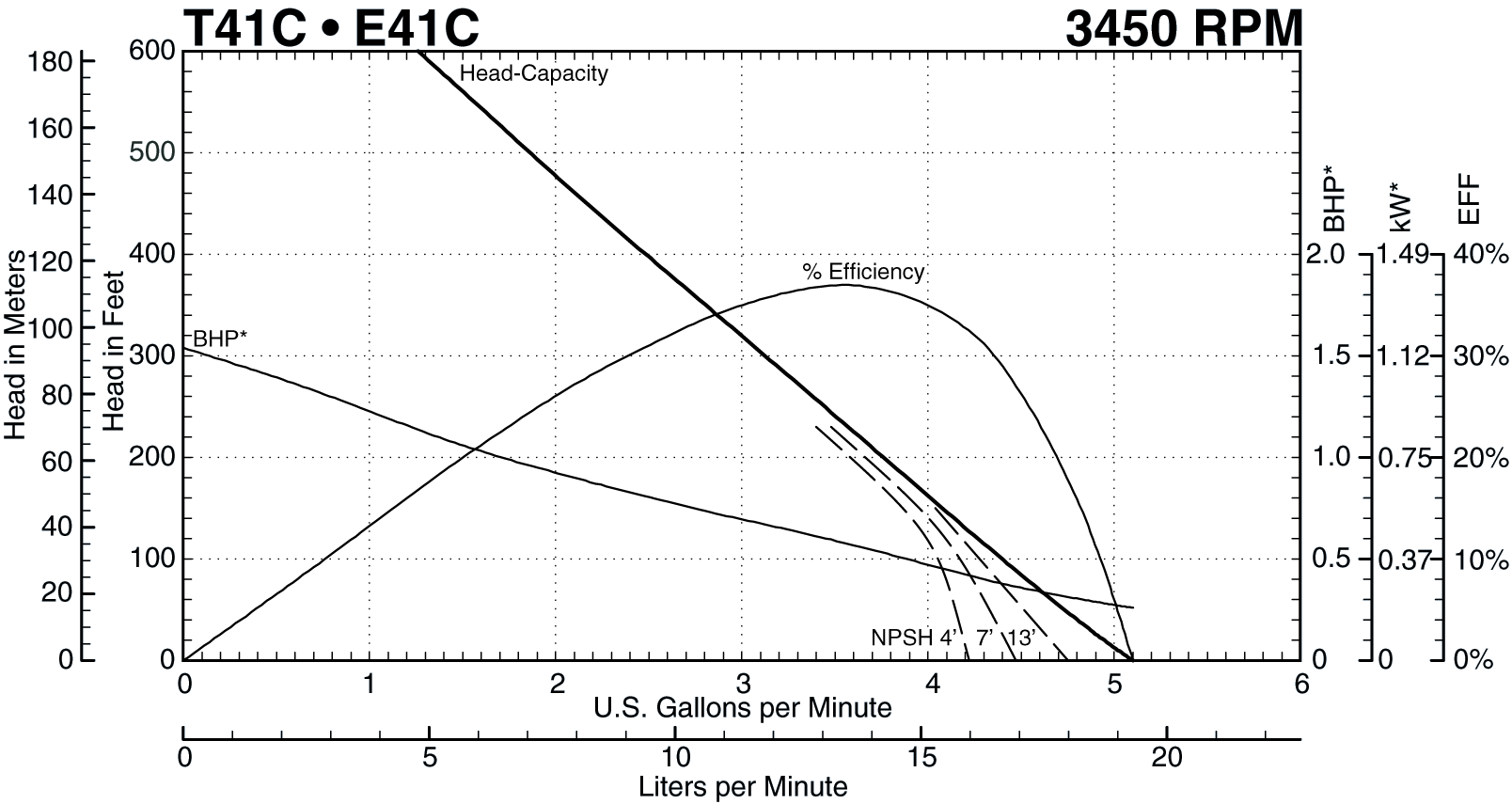

T41C Performance Curve at 3450 RPM Thumbnail

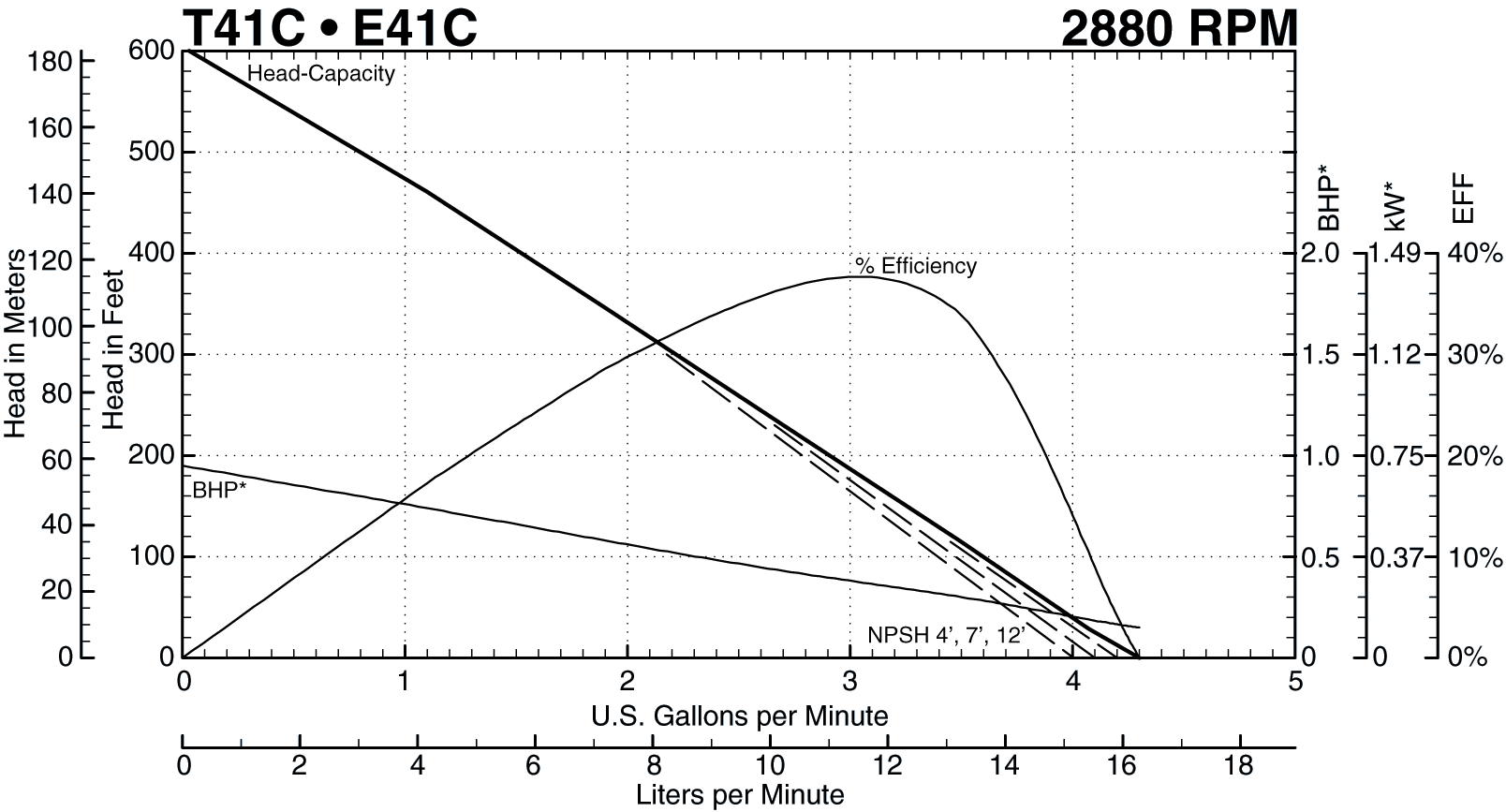

T41C Performance Curve at 2880 RPM Thumbnail

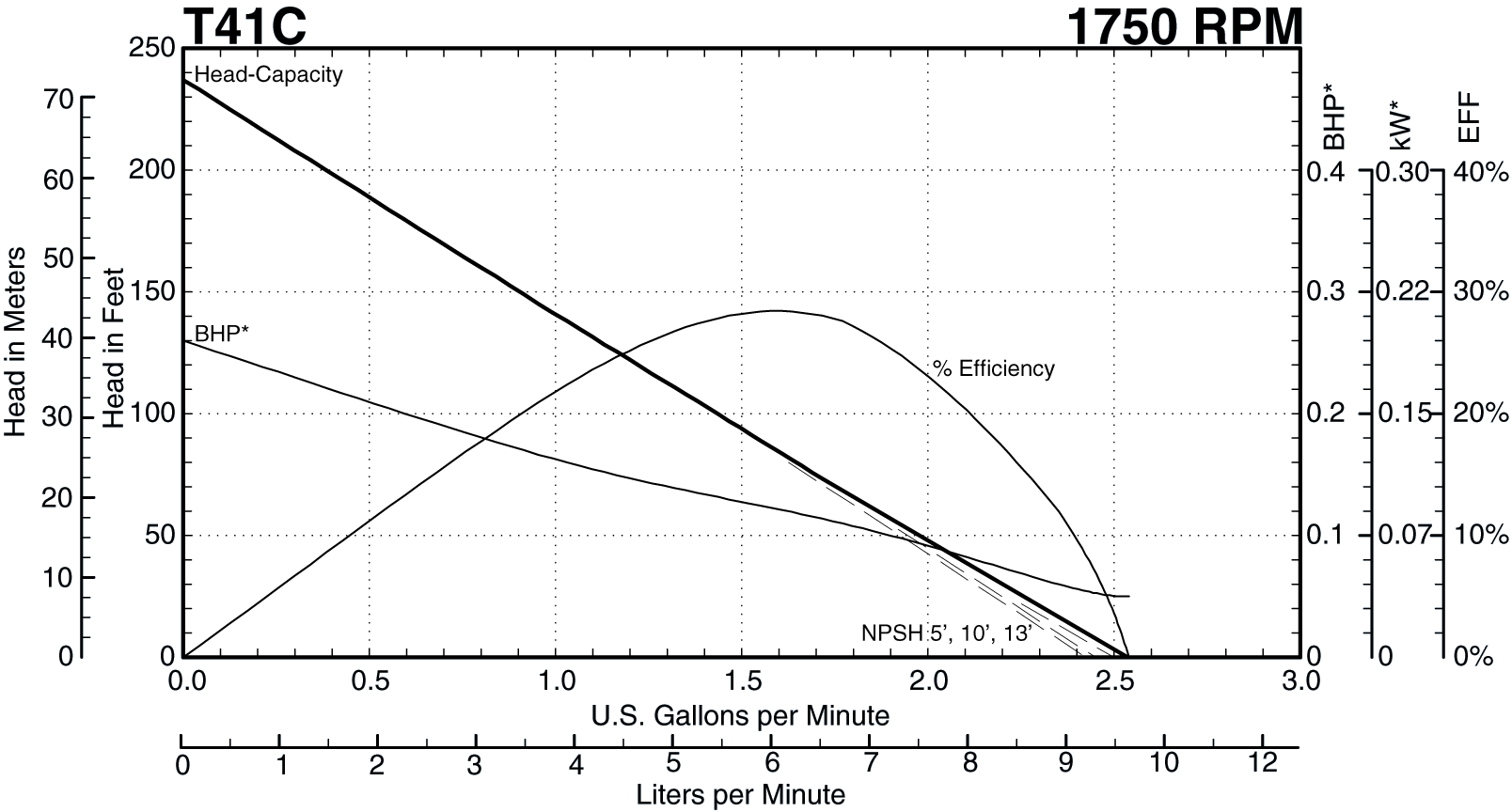

T41C Performance Curve at 1750 RPM Thumbnail

<< Prev Model

Next Model >>

Notes: --- --- --- Indicates altered performance at NPSH Available
*Horsepower data is valid for 1.0 specific gravity fluids only. Data provided is based of performance testing with water.

Click here to return to the T41 • E41 Product Information Page.
