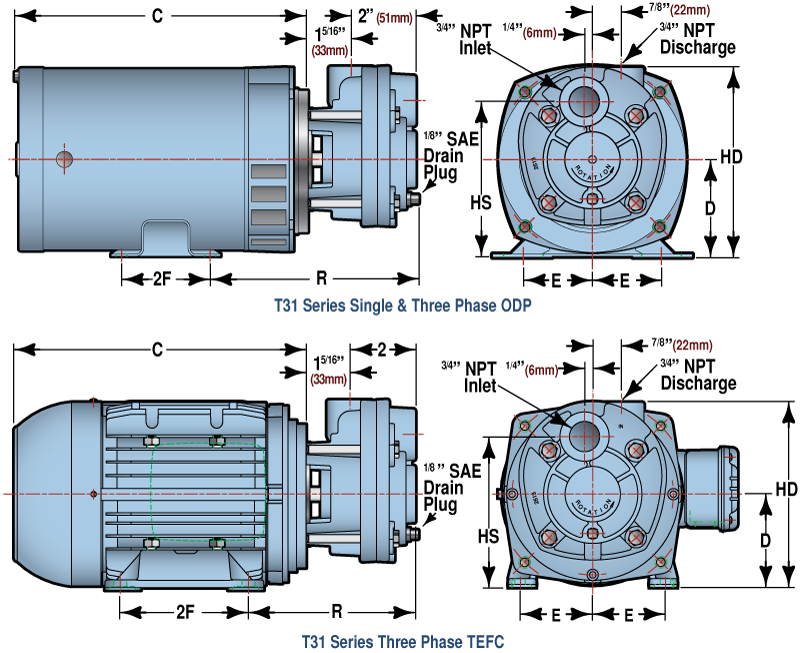

T31 Series Dimensions
Zoom
Click here for further single phase motor information
Click here for further three phase motor information
HP |
Phase |
Enclosure |
Weight* |
C |
D |
E |
R |
2F |
HS |
HD |
| 1/3 | 1 & 3 | ODP | 33 lbs (15 kg) |
9 1/4 (235mm) |
3 (76mm) |
2 1/8 (54mm) |
6 3/8 (162mm) |
2 3/4 (70mm) |
4 3/4 (121mm) |
5 13/16 (148mm) |
| 1/2 | 1 & 3 | ODP | 33 lbs (15 kg) |
10 1/4 (260mm) |
3 (76mm) |
2 1/8 (54mm) |
6 3/8 (162mm) |
2 3/4 (70mm) |
4 3/4 (121mm) |
5 13/16 (148mm) |
| 3/4 & 1 | 1 & 3 | ODP | 37 lbs (17 kg) |
10 3/4 (273mm) |
3 (76mm) |
2 1/8 (54mm) |
6 3/8 (162mm) |
2 3/4 (70mm) |
4 3/4 (121mm) |
5 13/16 (148mm) |
| 1 1/2 | 1 & 3 | ODP | 26 lbs (12 kg) |
11 1/4 (286mm) |
3 1/2 (89mm) |
2 1/8 (54mm) |
6 3/8 (162mm) |
2 3/4 (70mm) |
4 3/4 (121mm) |
5 13/16 (148mm) |
| 1/3 ~ 1 | 3 | TEFC | 26 lbs (12 kg) |
8 13/16 (224mm) |
2 13/16 (75mm) |
2 3/16 (56mm) |
5 5/16 (135mm) |
3 9/16 (90mm) |
4 9/16 (116mm) |
5 9/16 (141mm) |
| 1 1/2 | 3 | TEFC | 35 lbs (16 kg) |
9 5/8 (244mm) |
3 1/8 (79mm) |
2 1/2 (64mm) |
5 1/2 (140mm) |
3 15/16 (100mm) |
4 7/8 (124mm) |
5 15/16 (148mm) |
| *Estimated by Greatest Common Denominator | ||||||||||
